i-Quolis FLEX Continental Delivery System

Belmont · source

Features a unique whip design with an overall reach of 36"

The hoses are light and flexible, reducing the burden on the wrists of practitioners administering treatment over many hours.

Key Benefits

Centralized Control

The LCD control panel & digital display are in a highly visible position on the side of the Doctor's Table. With the touch of a finger, you can adjust the seat position, micromotors, and many other functions.

Adjustable Height Assistants Arm

Assistants can adjust holder height to position instruments where they can be most easily accessed.

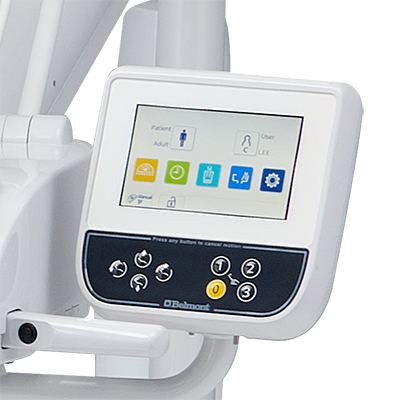

Digital Display

The I-Quolis delivery system has been significantly upgraded throughout with new LCD digital touch control. This new interface has been designed to improve efficiency and reduce stress during treatment. When a handpiece is chosen and picked up, the screen displays only necessary information, helping the practitioner concentrate on treatment.

i-Quolis FLEX Continental Delivery System

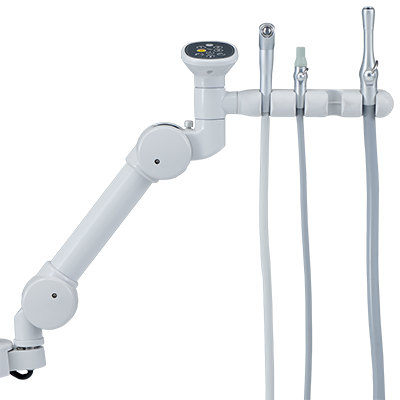

The New i-Quolis continental delivery system features a unique whip design with an overall reach of 36". This feature allows the practitioner to position the control head from the 8 O'clock position keeping the patient unobstructed. The hoses are light and flexible, reducing the burden on the wrists of practitioners administering treatment over many hours. The whip design incorporates a flexible guide roller that helps the tubing swivel left and right. Comes with 3 different tension adjustments that will help to reduce the weight of the handpieces.

Details

Standard Features
  • 3-HP Automatic Control with LCD Touchscreen Display
  • Power Optic System with One 6-Pin ISO-C Tubing Included
  • Individual Handpiece Pressure Adjustment
  • Individual Handpiece Water Coolant Adjustment
  • Master Handpiece Air Coolant Adjustment
  • Non-retracting Water Coolant
  • Master On/Off
  • Handpiece Flush
  • 4-Hole Straight Gray Silicone Tubing (Midwest Style Connector)
  • 1 Doctor Syringe
  • Slide Foot Controller with Wet/Dry Function
  • Stainless Steel Tray with Non-Slip Pad
  • Built-in Chair Positioning Touchpad
  • Pre-Wired Balance Arm with Pneumatic Brake
  • Built-in Bottled Water System
  • Premium Porcelain Cuspidor Bowl
  • Assistant Instrument Arm with A/W Syringe, HVE, SE
Optional Features
  • Bien-Air Optima MX2 Micro Motor
  • Dentsply Cavitron Ultrasonic Scaler
  • Additional HP Holder Position
  • Additional HVE
  • Monitor Mount
Warranty

5-Year Manufacturing Defects

Product Information

ManufacturerBelmont
HosesLight and flexible
Tubing4-Hole Straight Gray Silicone Tubing (Midwest Style Connector)
Control3-HP Automatic Control with LCD Touchscreen Display
Syringe1 Doctor Syringe
Warranty5-Year Manufacturing Defects
Assistant ArmAssistant Instrument Arm with A/W Syringe, HVE, SE
Cuspidor BowlPremium Porcelain
Overall Reach36"
Foot ControllerSlide Foot Controller with Wet/Dry Function
Air Coolant AdjustmentMaster
Water Coolant AdjustmentIndividual
Handpiece Pressure AdjustmentIndividual
