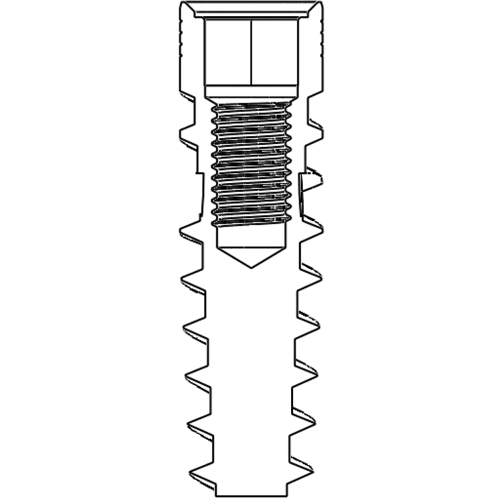

I5 Conical implant

Technical details & Features

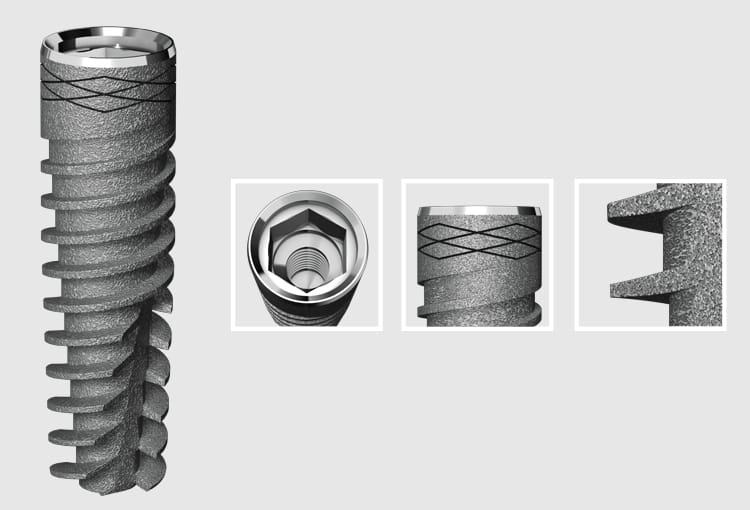

• The unique design allows the implant insertion via an incision, creating better stability. • Groovy neck – the implant neck includes an engraved grid, for minimal crestal bone resorption. • Available in a wide range of diameters Ø3mm – 6mm. • Suitable for soft bone zones – types III, IV. • Easy and fast insertion – self-tapping. • Double platform – deep (hex connection) and flat (non-hex connection). • Equipped with a switch platform for all diameters. • The restoration platform is Standard for all diameters, including Ø4.2 and above. • All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.

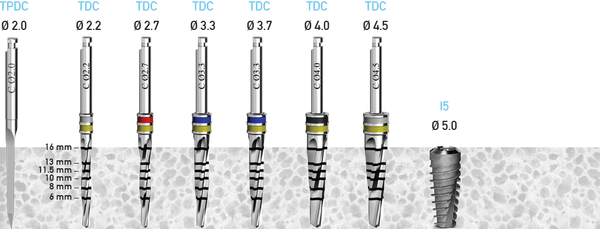

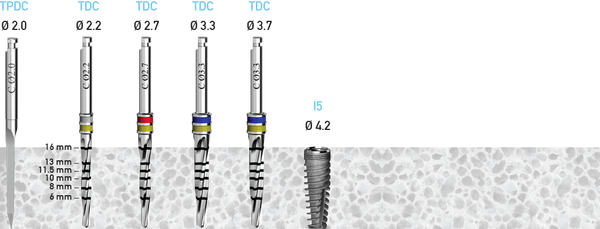

Implant range and protocol

Available diameters and lengths:

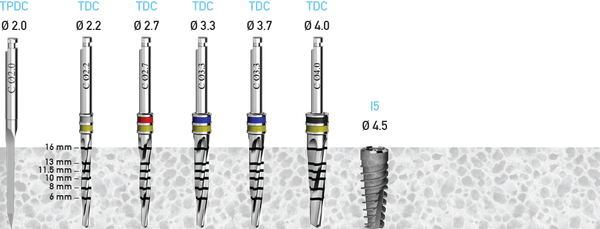

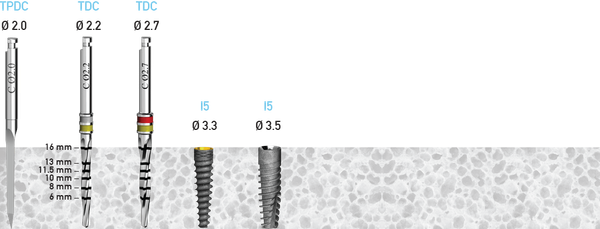

• Ø 3.5: Lengths 10, 11.5, 13, 16 mm | Final Drill: 2.7 mm | Drill speed: 500-700 RPM
• Ø 3.75: Lengths 8, 10, 11.5, 13, 16 mm | Final Drill: 3.3 mm | Drill speed: 400-700 RPM
• Ø 4.2: Lengths 8, 10, 11.5, 13, 16 mm | Final Drill: 3.7 mm | Drill speed: 400-600 RPM
• Ø 4.5: Lengths 6, 8, 10, 11.5, 13, 16 mm | Final Drill: 4 mm | Drill speed: 400-600 RPM
• Ø 5: Lengths 6, 8, 10, 11.5, 13, 16 mm | Final Drill: 4.5 mm | Drill speed: 300-500 RPM
• Ø 6: Lengths 6, 8, 10, 11.5, 13, 16 mm | Final Drill: 5.5 mm | Drill speed: 200-400 RPM

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

Optional drills

Final drills for dense bone (type 1-2) are available.

Package Content

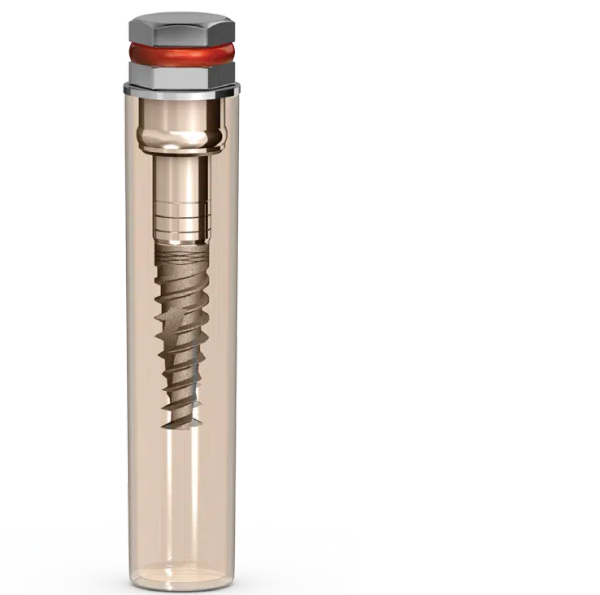

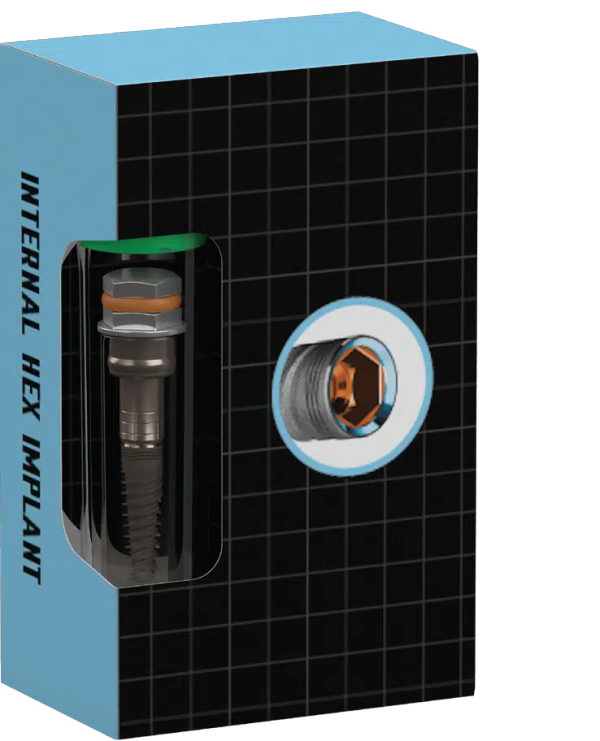

Package includes components, inside tube, outside tube, and packaging as shown in product images.
