I7 Integral implant
AB Dental Devices Ltd. · source
Technical details & Features
• One-piece implant combining implant and abutment in conical form.
• Less hassle with handling different parts.
• Groovy Integral implant (Smart Implant).
• Suitable for immediate loading where there is enough bone in both dimensions (height and width) as in post-extraction sockets.
• Recommended for the lower jaw in the anterior zone.
• Quick insertion and increased strength due to a unified structure.
• Sharp and deep threads that facilitate primary stability.
• Ideal for a non-surgical approach.
• Its optimal usage is for mild and dense bone.
• The mechanical preparations (grinding) are optional but only done in the patient's mouth, not the lab.
• Short implants with a length of 8 mm are offered in 4.2 and 5mm diameters.
• All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.
Implant range and protocol

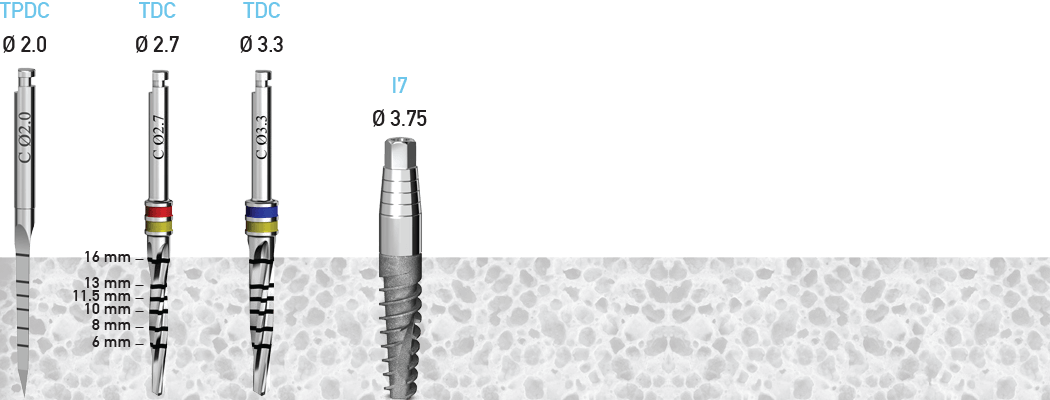

∅ 3.75
Lengths: 8, 10, 11.5, 13, 16
Final Drill Protocol
- Drill speed (RPM): 400-700
- Drill diameter (mm): 3.3
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

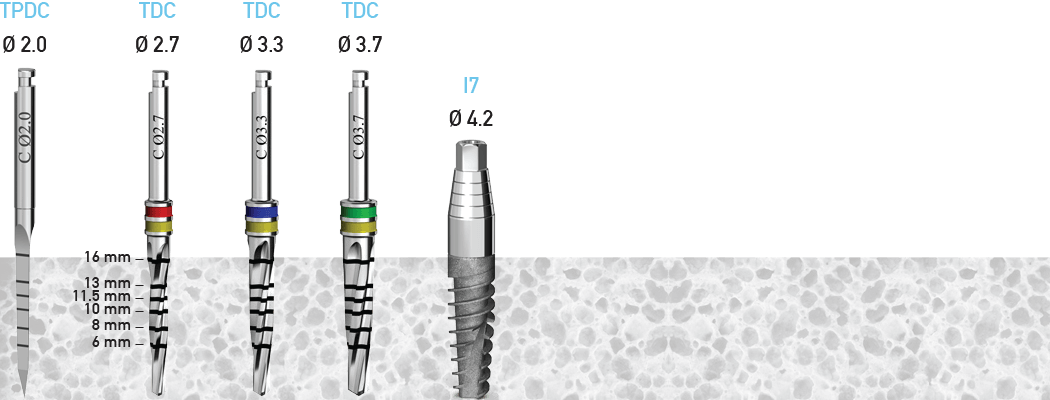

∅ 4.2
Lengths: 6, 8, 10, 11.5, 13, 16
Final Drill Protocol
- Drill speed (RPM): 400-600
- Drill diameter (mm): 3.7
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

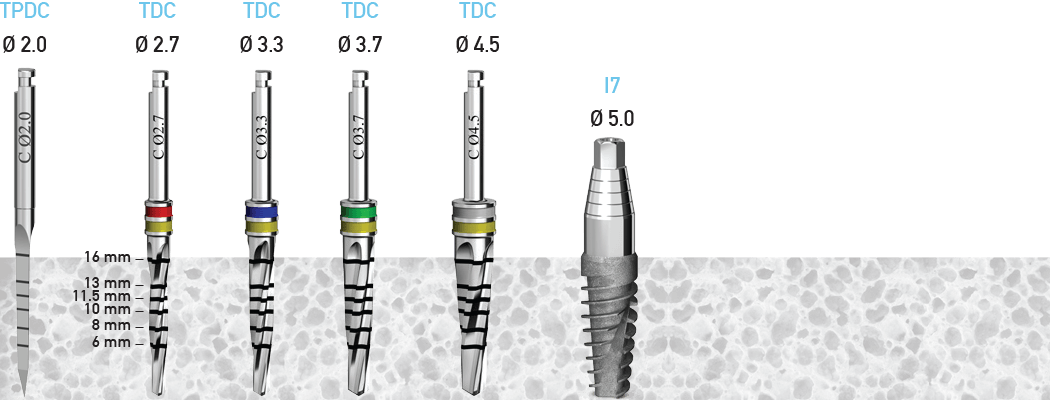

∅ 5
Lengths: 6, 8, 10, 11.5, 13
Final Drill Protocol
- Drill speed (RPM): 300-500
- Drill diameter (mm): 4.5
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

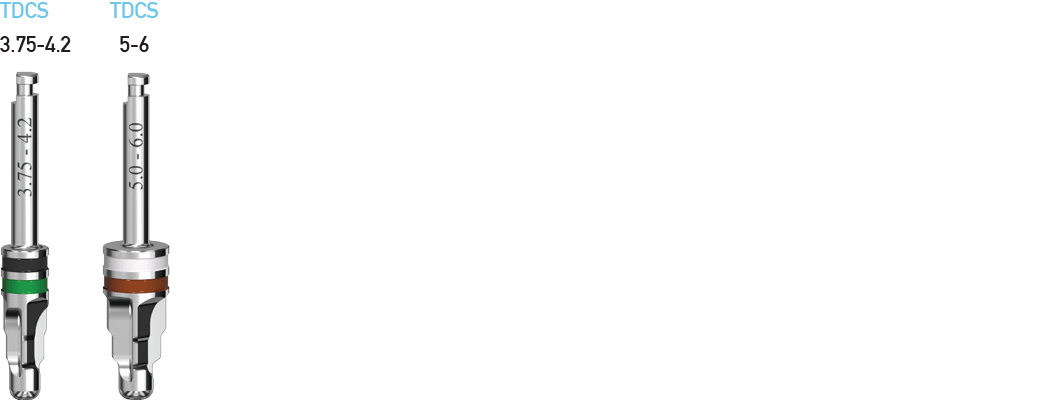

Optional drills
Final drills for dense bone (type 1-2)
Package Content
Components
Implant components as shown in product images

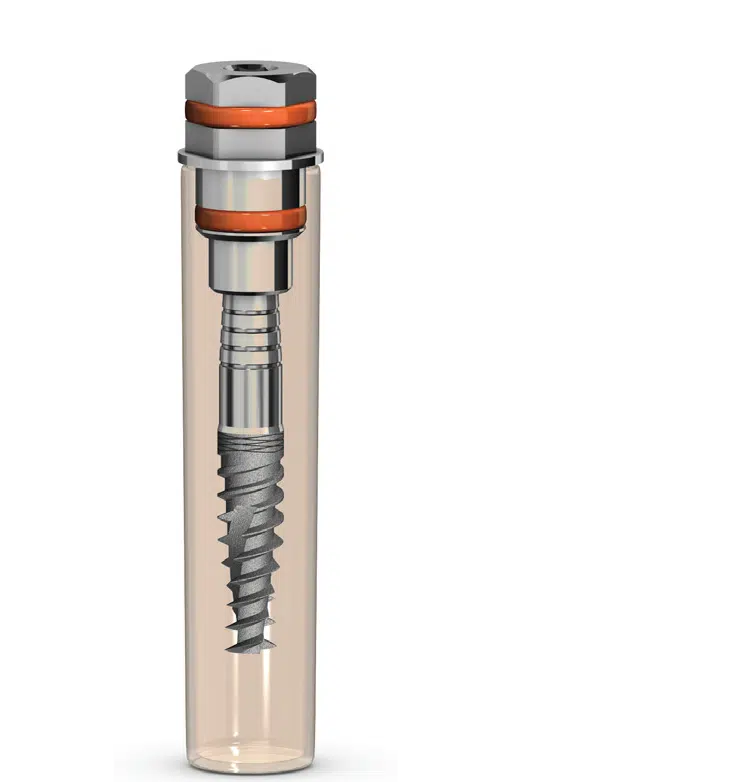

Inside Tube
Contents shown in product images
Outside Tube
Contents shown in product images

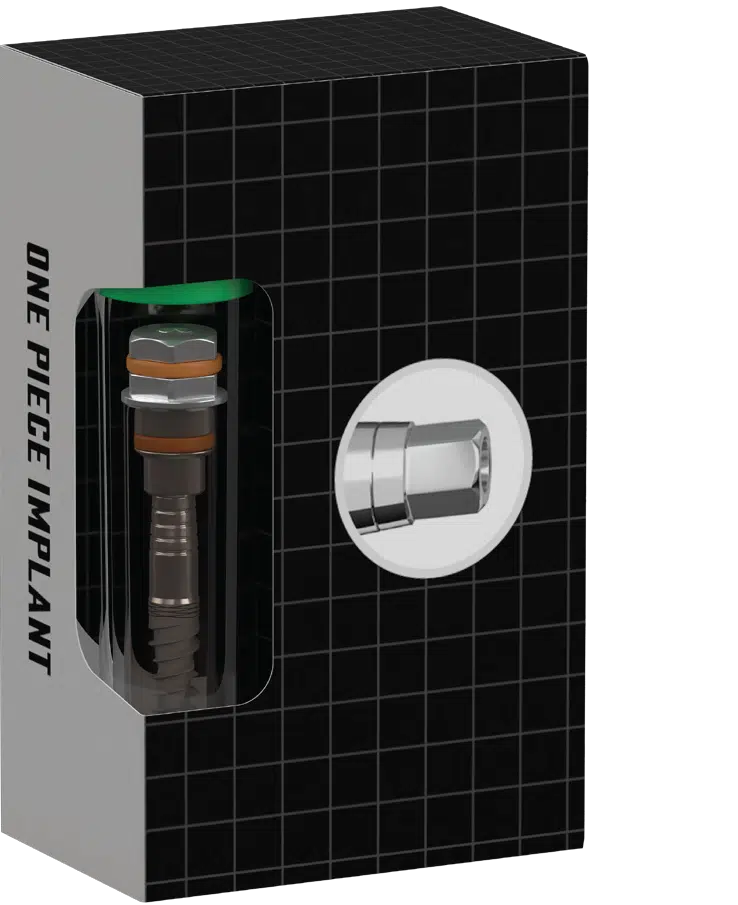

Package
Complete package as shown in product images
Product Information
| Manufacturer | AB Dental Devices Ltd. |
|---|---|
| Type | One-piece implant |
| Design | Groovy Integral implant (Smart Implant) |
| Loading | Suitable for immediate loading |
| 5mm Lengths | 6, 8, 10, 11.5, 13mm |
| 4.2mm Lengths | 6, 8, 10, 11.5, 13, 16mm |
| Platform Form | Conical |
| 3.75mm Lengths | 8, 10, 11.5, 13, 16mm |
| Design Approach | Non-surgical approach |
| Ideal Bone Type | Mild and dense bone |
| Surface treatment | Calcium-phosphate sandblasting followed by thermal and acid etching |
| 5mm Drill Speed Rpm | 300-500 |
| Available Diameters | 3.75mm, 4.2mm, 5mm |
| 4.2mm Drill Speed Rpm | 400-600 |
| 3.75mm Drill Speed Rpm | 400-700 |
| Thread Characteristics | Sharp and deep threads |
| Recommended Application | Lower jaw anterior zone |
| 5mm Final Drill Diameter | 4.5mm |
| 4.2mm Final Drill Diameter | 3.7mm |
| 3.75mm Final Drill Diameter | 3.3mm |
