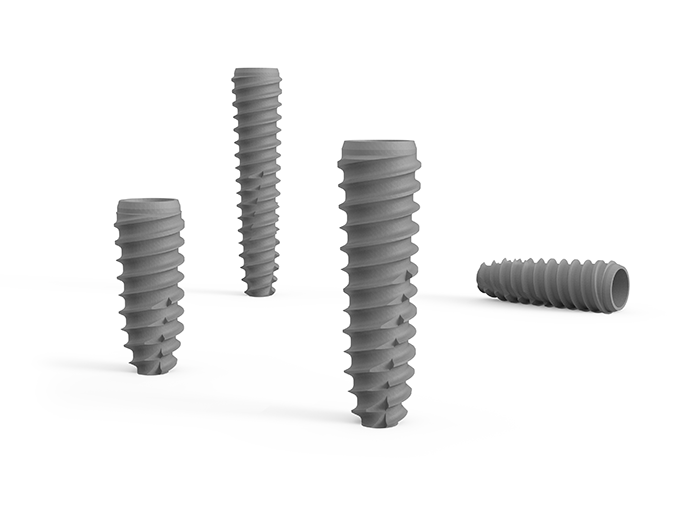

IB mini
ACH Medical Co.,Ltd. · source
Internal Bone Level - mini
The IB mini has been designed for the single anterior tooth which has very limited space for dental implant.
It allows to have excellent initial stability and bone preservation.
Key Points
Platform Switching
- Reduces the risk of inflammatory cell infiltration
- Greatly contributes to marginal bone preservation and soft tissue attachment
Morse Tapered Hex Connection
- Provides anti-rotation and allows for convenient indexing of the abutment
- Distributes the load to the fixture evenly and helps to reduce the micro movement
Small but Strong
- Suitable for narrow interdental space like maxillary lateral incisors as well as mandibular incisors
Hybrid Double Thread
- Allows Easier and quicker implant insertion in various bone condition
- Helps to reduce bone stress during insertion and penetrate the bone with ease
3 Blade Cutting Edge
- Self-tapping function allows smooth insertion with minimal bone destruction
- Rounded implant apex reduces risk of bone perforation
S.L.A Surface Treatment
- Sandblasted, Large grits, Acid etched
- Most researched and proven surface technology

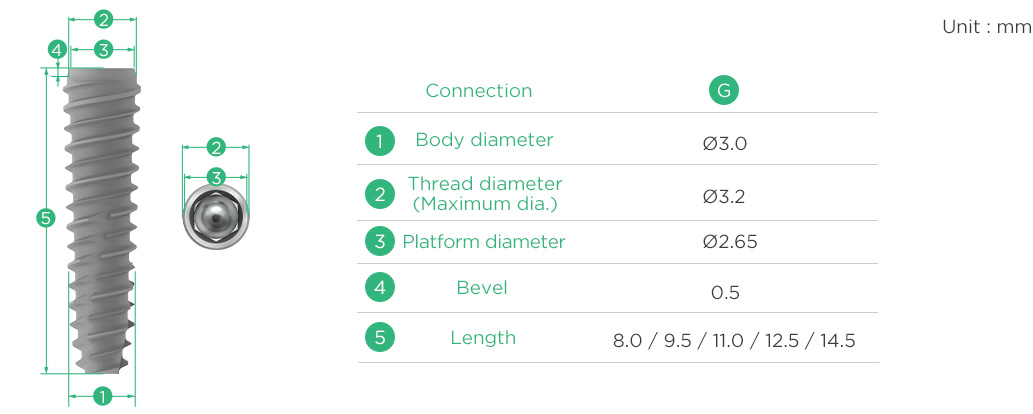

Product Information
| Manufacturer | ACH Medical Co.,Ltd. |
|---|---|
| Suitable For | Narrow interdental spaces, maxillary and mandibular incisors |
| Connection type | Morse Tapered Hex |
| Design Features | Platform Switching, Hybrid Double Thread, 3-Blade Cutting Edge |
| Surface treatment | S.L.A (Sandblasted, Large grits, Acid etched) |
