Internal Hex

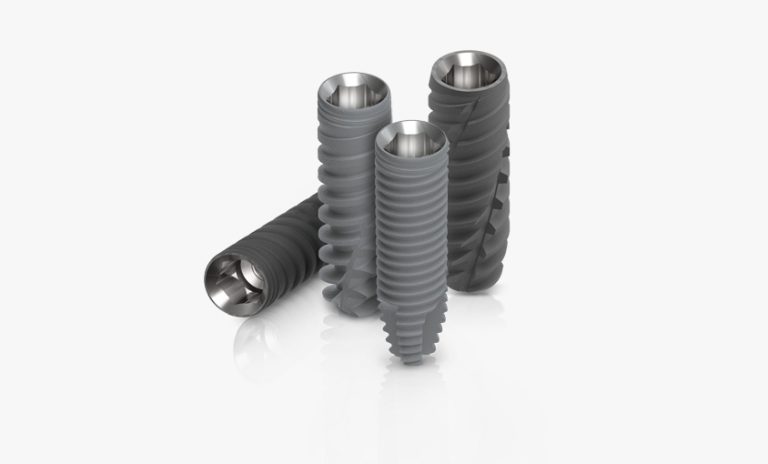

Internal Hex Connection Implant Systems

Our Internal-Hex connection implant systems Touareg™ S & OS are tapered implants with a spiral tap designed to condense bone during placement for enhanced immediate stability.

The two large variable threads & a tapered core enable accurate implant placement, selftapping, improved aesthetics and better load distribution.

The Touareg™-S and Touareg™- OS implants both feature a special round apex that pushes the bone graft with minimal harm to anatomical structures.

The Swell™ – An Internal-Hex connection, hybrid implant with parallel body and tapered apex, with a V-shaped thread design.

The Touareg™-OS, Touareg™-S and Swell™- implants are user friendly and their unique design often allows for immediate function.

The Triple™ is a unique triple spiral trapezoid thread dental implant.

Touareg™ S

AB/AE Surface Treatment

The Touareg™-S Spiral Implant is a tapered implant with a spiral tap that condenses the bone during placement for immediate stability.

It has two large variable threads and a tapered design for accurate implant placement, self-drilling, improved esthetics and better load distribution.

It features a special round shaped apex that pushes the bone graft with minimal harm to anatomic structures.

The Touareg™-S is very user-friendly and its unique design allows for immediate function for all bone types.

The Touareg™-S features a standard SLA™* – AB/AE – Alumina Oxide Blasted / Acid Etched surface treatment.

Adin's Touareg™ OS tapered spiral implant comes with a spiral tap and a standard internal hex connection (3.5mmD for all diameters), which achieves immediate stability via bone condensation during placement.

The implant is uniquely designed for immediate function for all bone types, with optimal implant-abutment seating, minimal horizontal bone stress and retention screw loading stress, complemented by excellent esthetics.

Touareg™-S Advantages:

• Double lead threads (2×1.2mm)
• High primary stability, also in Type IV bone
• Bone-condensing property
• Self-drilling and self-cutting
• Redirecting capability for optimal placement
• Built-in platform switching
• Minimally invasive surgery
• Immediate function capability
• Single restorative / prosthetic platform for easy restoration

Touareg™ OS

OsseoFix™ Surface Treatment

The Touareg™-OS implants feature Adin's OsseoFix™ – Titanium implant surface treatment that uses gritting with calcium phosphate media that is debris free and has been designed to achieve the desired roughness levels needed for optimal osseointegration.

The OsseoFix™ is biocompatible.

Touareg™ OS Advantages:

• Double lead threads (2×1.2mm)
• High primary stability, including type IV bone
• Bone-condensing properties
• Self-tapping
• Redirecting capability for optimal placement
• Built-in platform switching
• Minimally invasive surgery
• Immediate function/loading capability
• Single restorative/prosthetic platform for easy restoration

Swell™

Straight Implant System

The Swell™ is a straight, parallel walled, slightly tapered implant with V-shaped thread design.

Its unique design allows for accurate positioning improved esthetics and better load distribution.

The Swell™ implant features the standard SLA™* – AB/AE – Alumina Oxide Blasted/Acid Etched surface treatment.

Swell™ Advantages:

• Double lead thread (2×0.6mm)
• Self – tapping
• Single restorative/prosthetic platform for easy restoration

Triple™

Insertion Speed

Triple is a unique triple spiral trapezoid thread dental implant with vertical cutting channels that run the full length of the implant.

Triple™ Advantages:

• Insertion speed
• Ease of installation and restoration
• High instantaneous stability

The Triple has three vertical channels from the neck of the implant to the bottom for improved balance of power transfer to the bone.

The unique external thread, with three starts and a step of 3.6 mm (3X1.2 mm), for bone cutting.

Easier and smoother and faster to insert than any other implant in the category.

Supporting Components

Impression

Our components for taking impressions for all restoration types can be successfully utilized for digital or conventional protocols either implant-level or abutment level procedures. Our broad range of solutions and flexible designs enable easy and accurate restorative planning, whether you're dealing with a single tooth, multiple teeth, bridge or full mouth rehabilitation.

Restoration

Our TMA™ (Trans Mucosal Abutment) system is indicated for multiple-unit, screw-retained restorations and may be used in combination with an implant level framework design. The TMA™ system is used to elevate the restorative seating platform when restoration at implant level is not indicated or practical due to the depth or angle of the implant. The TMA™ System is designed to allow better prosthetics access when using implants with divergent angles accommodate full and partial edentulous arches, especially when using angled implants and all-on-x technique for full arch restoration. The TMA™ abutment system is available in straight or angled (17°,30°,45°), engaging the Internal Hex for indexing, with a selection of collar heights. Abutments are delivered with handles for easy insertion and to assist with seating.

Tools & Kits

Successful surgical procedures start with having the right instruments and tools to ensure your desired treatment outcomes are met. That's why our range has everything you need, including drills, keys, ratchets and insertion tools. Not only do they make procedures safer and simpler, they result in an enhanced patient experience as well. Our Surgical Kits streamline and simplify your implant procedures.
