Microscope power switch on/off
Labomed Europe b.v. · #A612099-465 · source

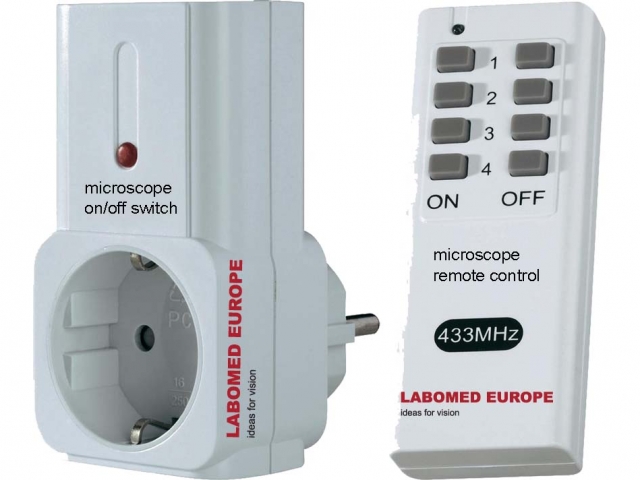

Microscope power switch on/off The product consists of a radio controlled main socket and a radio controlled hand-held transmitter. By means of the hand-held transmitter a consumer load connected to the radio controlled main socket can be turned on or off. The system is already programmed for easy use.
Technical Data radio controlled hand-held transmitter
Transmission frequency: 433 MHz
Power supply: 1x 12 V battery (type 23A)
Address codes: 4 (set with sliding switch I, II, III, IV
Switching channels: 4 (each with “ON“/“OFF“-button)
Range: up to 30 m (open space, see chapter “Range”)
LED Lights up briefl y on use of buttons
Operating ambience: Only suitable for closed, dry indoor locations
Technical Data radio controlled mains socket
Reception frequency: 433 MHz
Operating voltage: 230 V/AC, 50 Hz
Protection class: I
Connection output: 2000 W Ohm resistive load, 300 W inductive load
Address codes: 4 (set with turn switch I, II, III, IV)
Switching channels: Adjustable with turn-switch 1 2 3 4
LED Lights up on activated mains socket/consumer load
Operating ambience: Only suitable for closed, dry indoor locations
Product Information
| Manufacturer | Labomed Europe b.v. |
|---|---|
| Range | up to 30 m |
| Basic Udi Di | 8719189244566 |
| Power supply | 1x 12 V battery (type 23A) |
| Product Code | A612099-465 |
| Address Codes | 4 |
| Protection Class | I |
| Connection Output | 2000 W Ohm resistive load, 300 W inductive load |
| Operating Voltage | 230 V/AC, 50 Hz |
| Switching Channels | 4 |
| Reception Frequency | 433 MHz |
| Transmission Frequency | 433 MHz |
