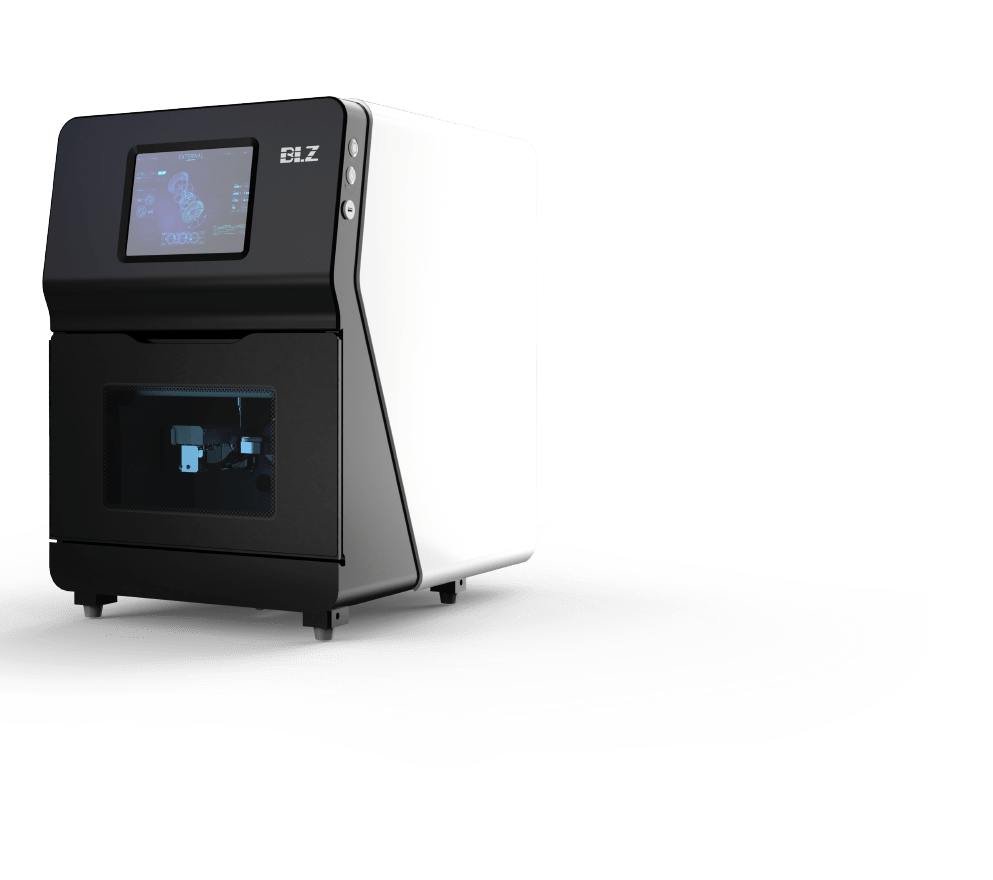

MO150
BLZ Technology (Wuhan) Co.,Ltd · source
5-Axis Dental Milling Machine
Efficient Milling. Precise Production.
Made from solid aluminum alloy, featuring an advanced 5-axis simultaneous operation system and utilizing the most popular dry processing method of various milling materials, the BLZ Dental MO150 is a smart milling tool to produce precise dental restorations and optimize working efficiency for the dental laboratories
5 Axes Simultaneous Operation
10 Automatic Tool Changer
60,000 rpm/min Fast Spindle Speed
90° Vertical Milling
Dry Processing of Various Materials
Flexible 5-Axis Simultaneous Operation
The milling machine can mill and rotate in 5 axes simultaneously without restrictions to process complex cases of prosthetics and full mouth restorations quickly and accurately.
- The maximum rotation angle in B-axis: -90° ~ +30°
- The maximum rotation angle in C-axis: 0° ~ 360°
Automatic Tool Changer
The milling machine comes with 10 standard tools for automatic tool changes. It's no longer to change the spindle by manually every time for different milling requirements. The intelligent tool changing system greatly improve the working efficiency of the machine.
Powerful Spindle for Fast & Precise Milling
- Maximum rotation speed: up to 60,000 rpm/min
- Spindle power: 1800 Watt
- Positioning accuracy: 0.01 mm
- Shank diameter: 4 mm ~ 6mm
90 Degree Vertical Milling
MO150 adopts a half-open C-Clamp blank holder design to achieve 90-degree milling. The undercuts areas, interproximal areas, anterior teeth, and gingival lines can be milled vertically with the block raised to 90 degrees. The 90° vertical milling is ideal for the most difficult indications.
Dry Processing of Various Milling Materials
The BLZ MO150 milling machine supports milling a wide range of materials including zirconia, wax, PMMA, and PEEK to produce inner crown, inner crown bridge, full crown, full crown bridge, crown tube, inlay, porcelain veneer, pre-stored abutment, abutment, implant bar, and implant along bridge for a variety of applications.
Zirconia
- Dental Crown, Veneers, Inlay/Onlay, Dental Bridges, Implant Bridge, Implant Abutment, Implant Bars
PMMA
- Dental Crown, Veneers, Inlay/Onlay, Dental Bridges, Implant Bridge
WAX
- Dental Crown, Inlay/Onlay, Dental Bridges, Implant Bridge, Implant Abutment, Implant Bars
PEEK
- Implant Abutment, removable partial dentures, fixed prostheses
Product Information
| Manufacturer | BLZ Technology (Wuhan) Co.,Ltd |
|---|---|
| Axes | 5-Axis Simultaneous Operation |
| Application | Inner crown, inner crown bridge, full crown, full crown bridge, crown tube, inlay, porcelain veneer, pre-stored abutment, abutment, implant bar, implant along bridge |
| Spindle Power | 1800 Watt |
| Spindle Speed | up to 60,000 rpm/min |
| Shank Diameter | 4 mm ~ 6 mm |
| Vertical Milling | 90° |
| Material Processing | Dry processing |
| Supported Materials | Zirconia, Wax, PMMA, PEEK |
| Positioning Accuracy | 0.01 mm |
| Construction Material | Solid aluminum alloy |
| Automatic Tool Changer | 10 tools |
| Maximum Rotation Angle B Axis | -90° ~ +30° |
| Maximum Rotation Angle C Axis | 0° ~ 360° |
