Multi-units - P14, P16, P24, P64

PROSTHETIC SOLUTIONS FOR NON-PARALLEL IMPLANTS: P14, P16, P24, P64

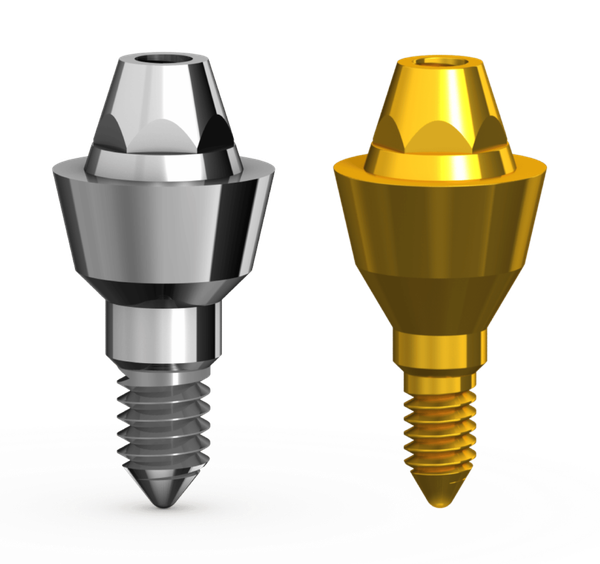

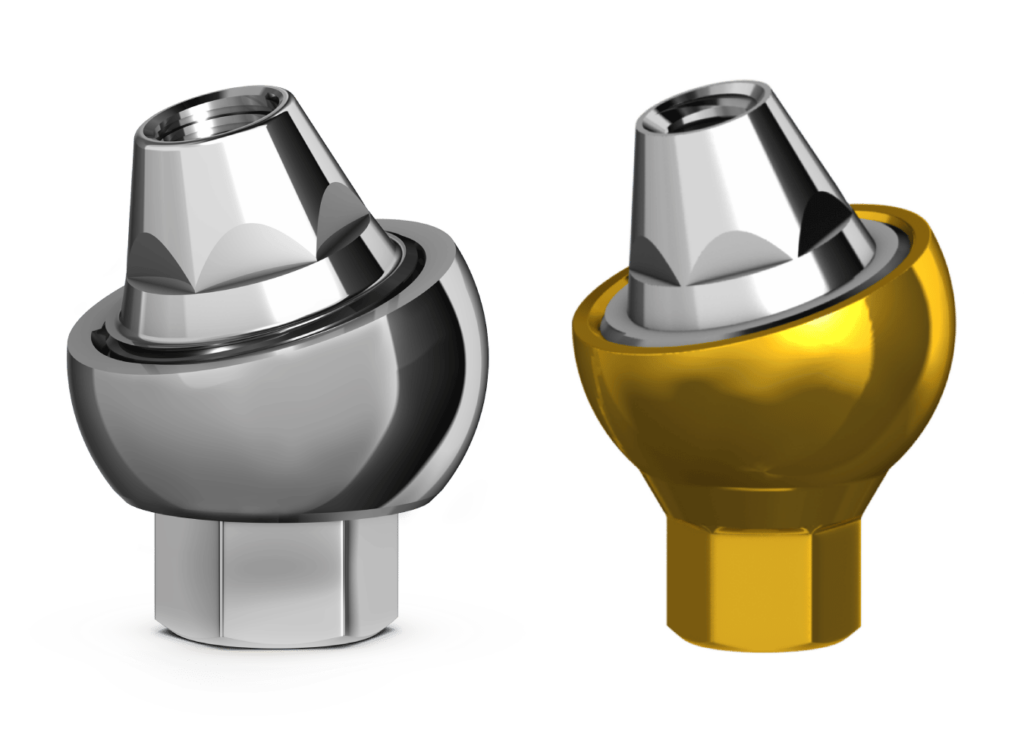

P14

• The adaptor (base & cone) is used for screw-retained restoration and enables rehabilitation on non-parallel implants by correcting extreme angles of the implant.
• The angle of the implant is corrected by using a base.
• The base is available in angles of 17˚ and 30˚ and at heights of 1 mm and 3 mm.
• The cone enables the connection of a temporary titanium abutment or permanent abutment made with plastic sleeves for casting.
• An AB Dental issued patent.
• CAD/CAM restoration.
• A perfect solution for "All-on-4" restorations.
• A multi-unit that enables the dentist to reach an esthetic solution in cases of rehabilitation of implants in extreme angles.
• Platform switching by design allows a perfect environment for the soft-tissue growth and helps prevent bone resorption.
• A variety of sleeves can be connected to the cone as well as a ball attachment.
• Available for standard, narrow and conical platforms.

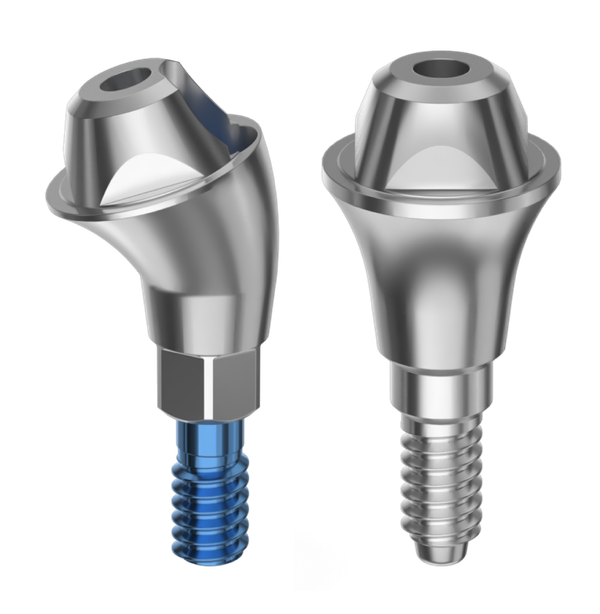

P16

• A straight adaptor made of Titanium, facilitating the installation of an overdenture system on non-parallel implants.
• The upper cone solves the lack of parallelism.
• The path of insertion is especially wide.
• Wide shoulder for easy positioning.
• Platform switching by design allows a perfect environment for soft-tissue growth and helps prevent bone resorption.
• The impression-taking is performed over the installed adaptors (all impression-taking + sleeves + healing caps are similar to P14).
• The overdenture system is screwed to the cone.
• The conical screw thread is deep and wide, giving additional strength to the abutment.
• Easy and secure handling.
• CAD/CAM restoration.
• Available in 5 different collar heights.
• Available for standard, narrow and conical platforms.

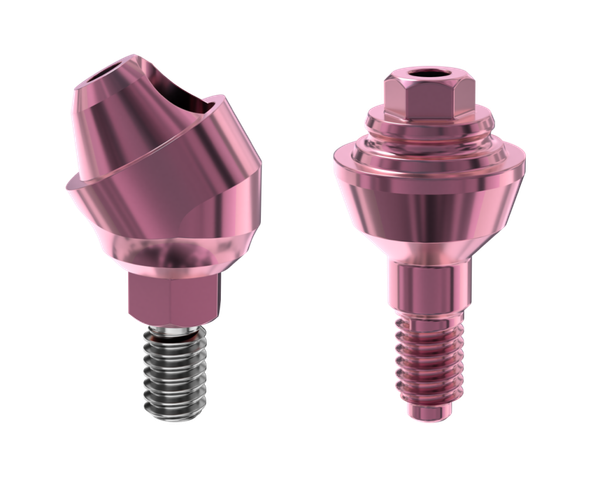

P24

• Enables restoration on non-parallel implants by correcting extreme angles of implants.
• Pink color anodization for easy identification.
• Straight and angled variants – 17, 30 degrees (45, 52, and 60 degrees coming soon!)
• Available in different collar heights.
• A perfect solution for "All-on-4" restorations.
• Easy and secure handling.
• CAD/CAM restoration.
• An especially wide path of insertion.
• Platform switching by design allows a perfect environment for soft-tissue growth and helps to prevent bone resorption.
• Available for standard platforms.

P64

• Enables restoration on non-parallel implants by correcting extreme angles of implants.
• Wide shoulder for easy positioning.
• Straight and angled variants (17, 30, 42 degrees).
• Available in 5 different collar heights.
• A perfect solution for "All-on-4" restorations.
• Easy and secure handling.
• CAD/CAM restoration.
• The conical screw thread is deep and wide, giving additional strength to the abutment.
• The path of insertion is especially wide.
• Platform switching by design allows a perfect environment for soft-tissue growth and helps to prevent bone resorption.
• Available for standard and narrow platforms.

P14C + P16C

For conical platform implant:

P14C

• Square anti-rotation design for single crown restoration
• Enables restoration on non-parallel implants by correcting extreme implant angles
• Available in angles of 17° and 30°
• Especially wide insertion path

P16C

• The upper cone solves the lack of parallelism
• Compatible for single crowns and bridges
• Facilitates the installation of an overdenture system on non-parallel implants
• The overdenture system is screwed to the cone. Available in multiple heights
• Impression-taking is performed over the installed adapters
