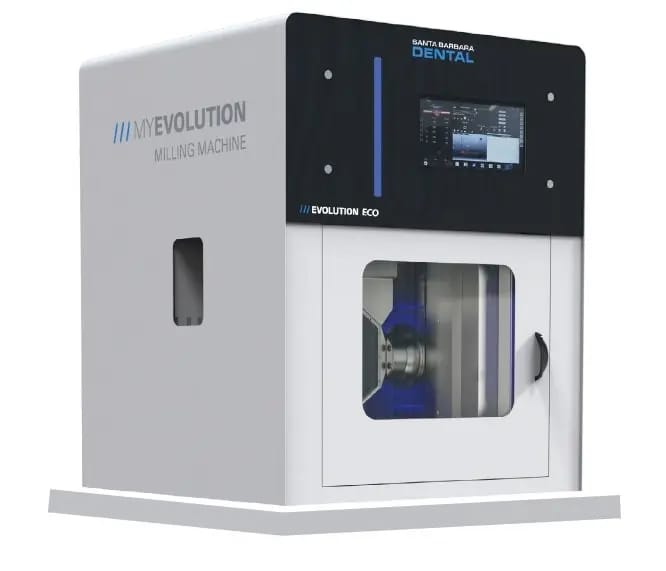

MY EVOLUTION ECO

DENTAL MILLING MACHINE

A compact CAD-CAM / 5 AXIS milling center, built to the highest standards of the dental market.

Simple and intuitive, it was developed using the most innovative technologies to meet every need of the dental technician sector.

The My Evolution ECO series is equipped with international ISO industry 4.0 certification, and allows the use of any CAM software on the market. This facilitates immediate use and eliminates the initial learning curve, greatly reducing the amortization time of the router.

Equipped with the best technologies

• Numerical control with 5 continuously interpolated axes.
• Axis rotation:
  • Axis A +/- 30 °.
  • B axis 360 ° continuously.
• 900 WATT high frequency spindle with 60,000 RPM rotation speed, air and coolant nozzle.
• 14 tool positions with integrated tool length control with 1 micron precision.
• All 3 + 2 axes are centrally controlled continuously.
• Machinable materials: Metal, Zirconia, Wax, PMMA, Resin, composite, PEEK, Gypsum, Glass fiber, Pre-sintered cobalt chromium and Lithium disilicate.

TECHNICAL DATA

External machine dimensions (mm)
680mm (I) x 650mm (D) x 800mm (H) – approx.

Working area dimensions (mm)
350mm (W) x 350mm (D) x 450mm (H) – approx.

Machine strokes (mm)
X 160mm, Y 100mm, Z 80mm.

Rotation Angles
A = + 30 ° -115 °; B = + – 360 ° (continuously).

Engines

• Axis power X, Y, Z, A, B 100 Watt
• Equipped with precision encoder.
• 36 Vdc power supply
• Degree of protection: IP 65
• Nominal speed 3000 rpm

Tool change stations with tool length sensor and tool break detection

• 14 positions
• Tool shank diameter 4 mm.

Automatic tool presetting

• Tool Measurement Accuracy + – 0.001 mm (1µ)
• Tool length 20 – 50 mm.

Electrospindle

• Power 900 Watt
• RPM 10000 – 60000
• Tool housing collet diameter 4 mm.
• Automatic spindle pressurization 1.7 bar
• Tool locking adjustment

Control Panel Touch Screen 15.6 " w LDC
Standard

Axis A and B
With precision gearboxes with helical toothing millesimal at 0 play

Axis A X Y Z
Linear axes by means of recirculating ball guides with millesimal availability, precision ball screw with millesimal precision.

Embedded PC
Windows 10 Desktop x 5 – Z 8350 Intel Atom 2GB / 32GB 1000M / LAN 2.4 / 5.8GB WiFi Bluetooth 4.0 with HDMI & VGA Support Dual Screen Display

SBM 5 axis CNC Santa Barbara
Standard.

USB interface
Standard.

Ethernet interface
Standard.

Automatic air jet
Standard.

Pod holder for
Standard disks ∅ 98.5 mm on request other dimensions and shapes.

Weight
Total machine weight about 180 Kg.

Led indicator
3 colors that signals the status of Work, alarm, pod placement and end of work cycle.

Use and maintenance manual
Included.

Support and after sales guarantee with helpline
Included.
