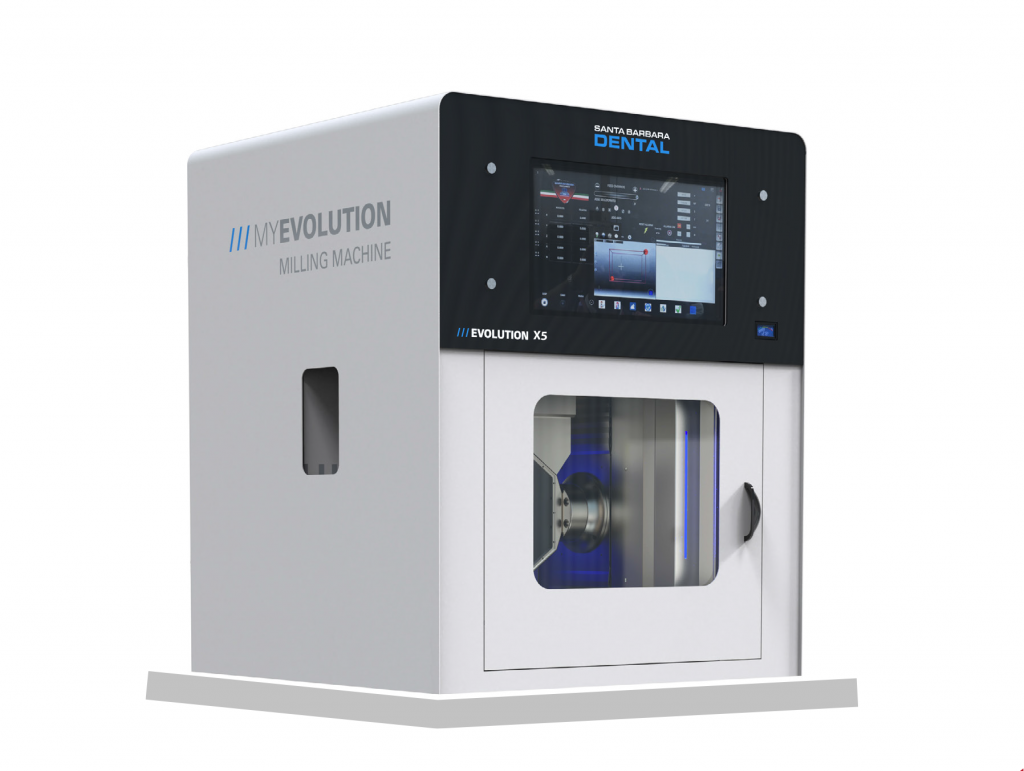

My Evolution X5
Santa Barbara SRL · source
DENTAL MILLING MACHINE
A compact CAD-CAM / 5 AXIS milling center, built to the highest standards of the dental market.
Simple and intuitive, it was developed using the most innovative technologies to meet every need of the dental technician sector.
The My Evolution X5 series is equipped with international ISO industry 4.0 certification, and allows the use of any CAM software on the market. This facilitates immediate use and eliminates the initial learning curve, greatly reducing the amortization time of the router.
Equipped with the best technologies
- Numerical control with 5 continuously interpolated axes.
- Axis rotation: Axis A + 30 ° – 115 °. B axis 360 ° continuously.
- 1.8 KW high frequency spindle with 50,000 RPM rotation speed, air and coolant nozzle.
- 14 tool positions with integrated tool length control with 1 micron precision.
- All 3 + 2 axes are centrally controlled continuously.

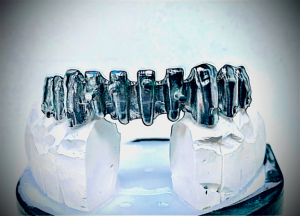

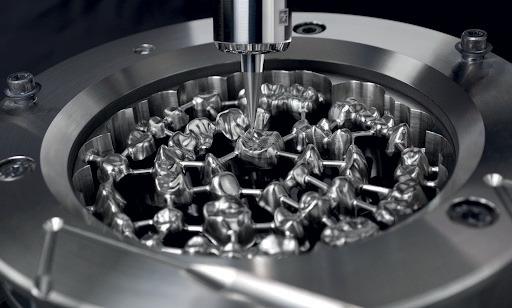

- Machinable materials: Metal, Zirconia, Wax, PMMA, Resin, composite, PEEK, Gypsum, Glass fiber, Pre-sintered cobalt chromium and Lithium disilicate.
Product Information
| Manufacturer | Santa Barbara SRL |
|---|---|
| Pc | Windows 10 Desktop x 5 – Z 8350 Intel Atom 2GB / 32GB 1000M / LAN 2.4 / 5.8GB WiFi Bluetooth 4.0 with HDMI & amp; VGA Support Dual Screen Display |
| Weight | Total machine weight about 250 Kg |
| Axis X Y Z | Linear axes by means of recirculating ball guides with millesimal availability, precision ball screw with millesimal precision |
| Pod Holder | Standard disks ∅ 98.5 mm on request other dimensions and shapes |
| Cnc Control | SBM 5 axis CNC Santa Barbara |
| Tool Length | 20 – 50 mm |
| Axis A And B | With precision gearboxes with helical toothing millesimal with 0 backlash |
| Cooling Tank | Standard inside the machine structure |
| Power supply | 36 Vdc |
| Certification | International ISO industry 4.0 certification |
| Control Panel | Touch Screen 15.6 " w LDC Standard, anti-break and anti-scratch, 3-year warranty |
| Led Indicator | 3 colors that signals the status of Work, alarm, pod placement and end of work cycle |
| Nominal Speed | 3000 rpm |
| Usb Interface | Standard |
| Engines B Axis | 200 Watt |
| Machine Strokes | X 160mm, Y 100mm, Z 80mm |

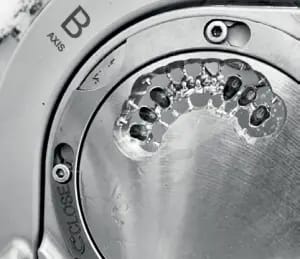

| Rotation Angles | A = + 30 ° -115 °; B = + – 360 ° (continuously) |
| Automatic Air Jet | Standard |
| Electrospindle Rpm | 5000 – 50000 |
| Ethernet Interface | Standard |
| Tool Shank Diameter | 6 mm |
| Degree Of Protection | IP 65 |
| Electrospindle Power | 1.8 KW |
| Machinable Materials | Metal, Zirconia, Wax, PMMA, Resin, composite, PEEK, Gypsum, Glass fiber, Pre-sintered cobalt chromium and Lithium disilicate |
| Tool Change Stations | 14 positions |
| Automatic Coolant Jet | Standard |
| Engines X, Y, Z, A Axis | 400 Watt |
| Working Area Dimensions | 400mm (W) x 400mm (D) x 500mm (H) – approx. |
| Tool Measurement Accuracy | + – 0.001 mm (1µ) |
| External Machine Dimensions | 750mm (I) x 750mm (D) x 900mm (H) – approx. |
