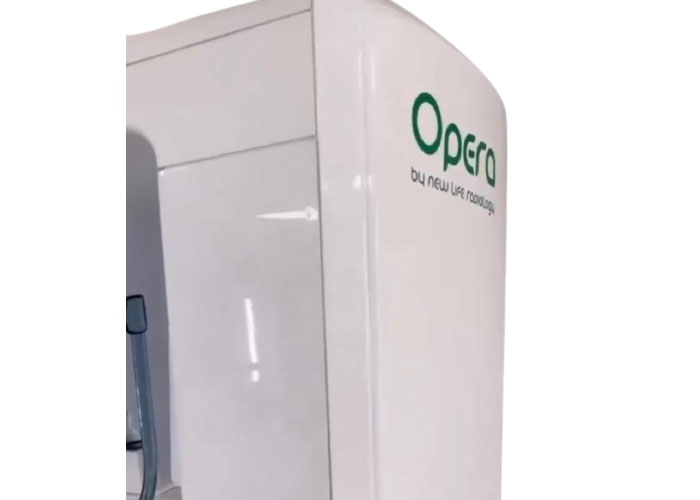

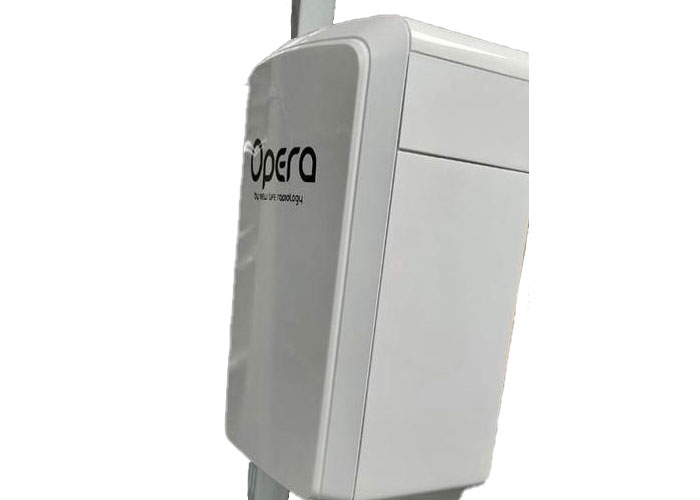

Opera 3D ceph

Description

The unique three-in-one system integrates 2D and 3D functions to cephalometric analysis.

In addition to the 3D features, this model is equipped with a cephalometric imaging arm and a flat panel with DR technology obtains high definition 24 x 30cm cephalometric images in just 200ms, using "single shot DR" technology.

• Flat CMOS with an active area of 13 x 13 cm and 100nm pixels

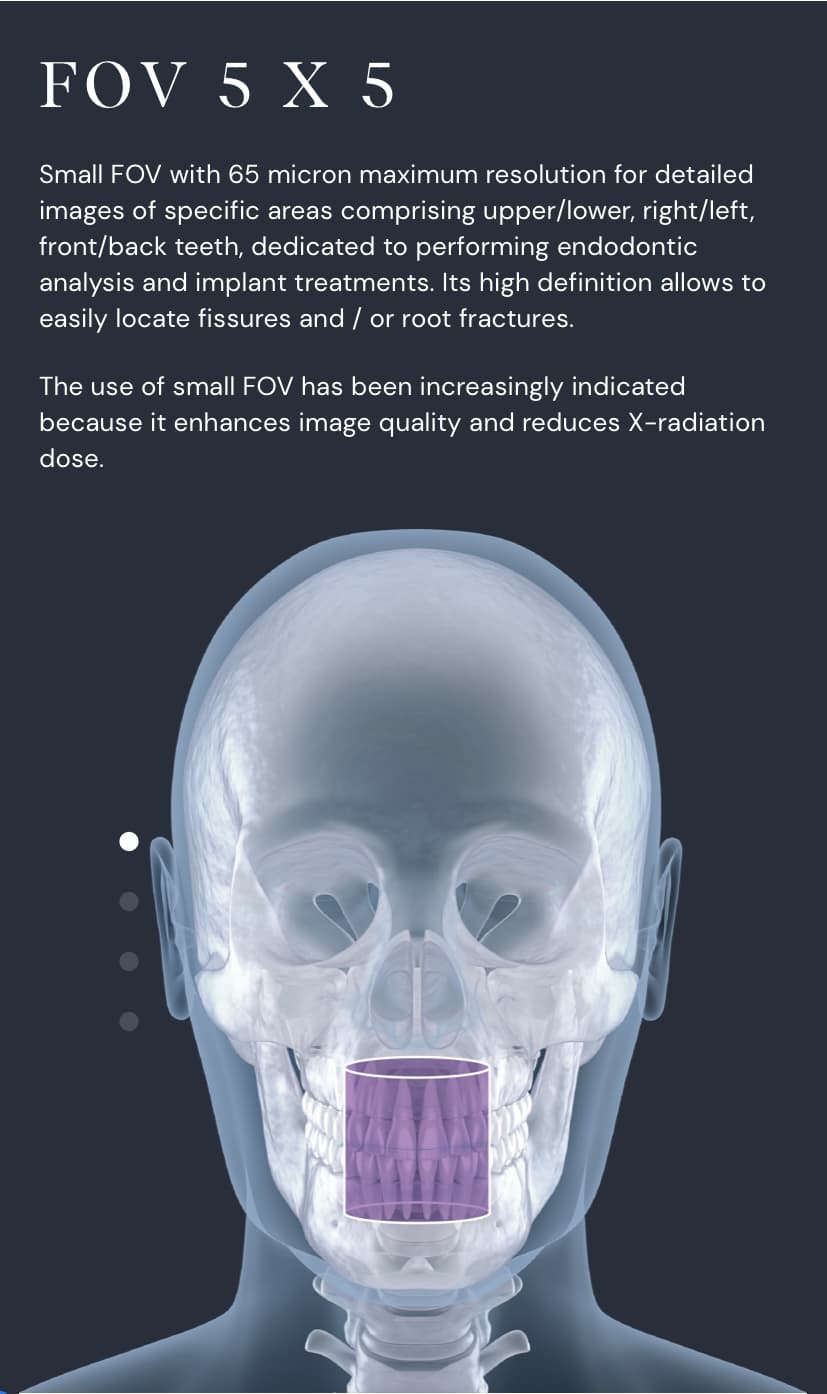

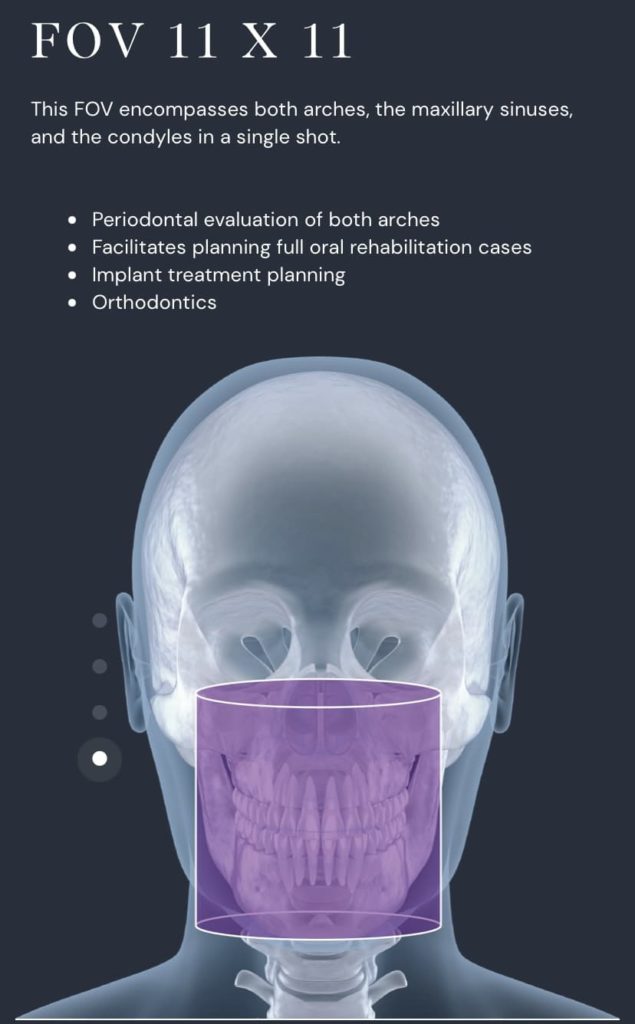

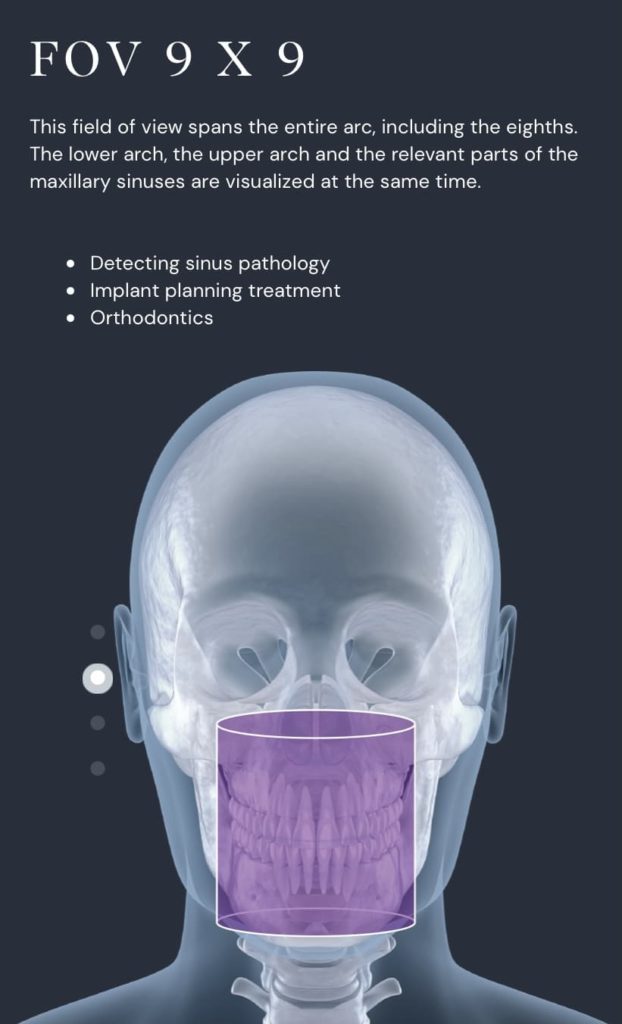

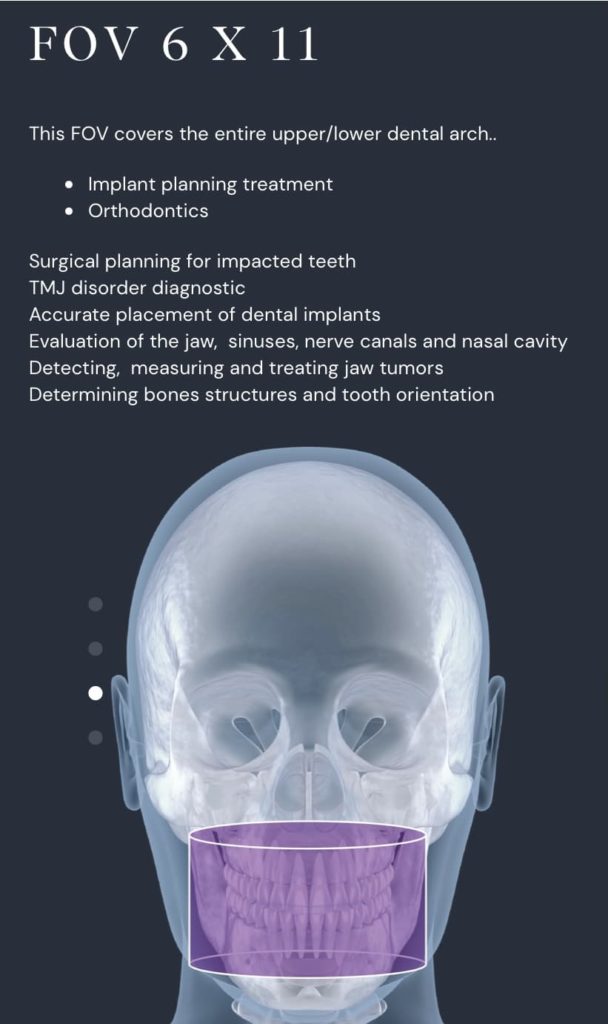

• true FOV 9×9, 11×11, MULTIFOV(9×9, 11×11, 6×11, 5×5)(not stitching)
• 24 x 30 cm cephalometric images in HD
• 9×9, 11×11, MULTIFOV (9×9, 11×11, 6×11, 5×5) volumetric images
• 13 x 30 cm in 2D

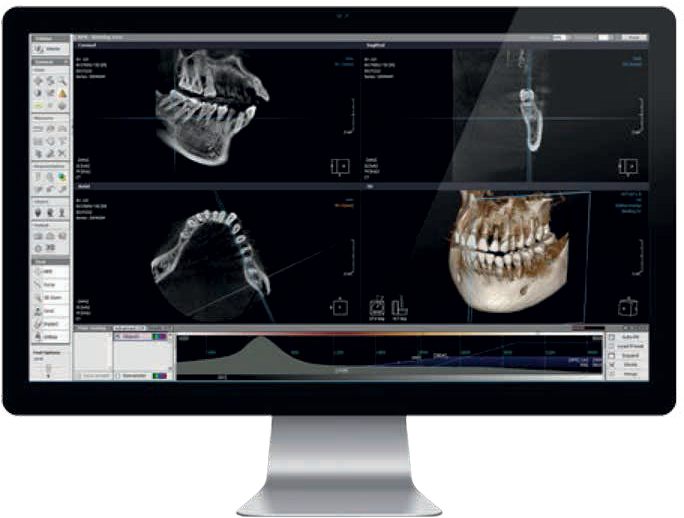

Xelis: Implant planning software

A unique tool to assist you in implant surgery:

• Takes transversal cross sections of the dental arch for preliminary implant evaluation and follow up
• Clearly indicates the correct position and size of the implants to use
• Visualizes with precision the nerve channels and determines the angle for the surgery with greater effectiveness

Xelis has a simple interface to help evaluating numerous clinical pathologies including fracture, included teeth, periodotitis and TMJ.

XELIS ADVANCED IMPLANT
DBM Xelis Dental Database
Basic 3D Toolbar – including Measurements Tools, MPR, Cross Section
Advanced Toolbar – Canal Draq / Implant Simulation / Utilities
STL export – Save surface
CD7DVD7USB export – image export to external storage
Batch Print – One click Image Batch
Print (Axial, Panoramic, Cross Section)
DLB – Dynamic Light Box
Image stitching
Report – Captured Image
Management and Report generation
DICOM Print and CD burning
Net environment, optional multi user up to 10 users

XELIS BASIC IMPLANT
DBM Xelis Dental Database
Basic 3D Toolbar – including Measurement Tools, MPR, Cross Section
Advanced Toolbar – Canal Draw/Implant Simulation /Utilities
Net environment, optional multi user up to 10 users.

Technical specifications for Opera 3D ceph:

3D IMAGING
Sensor type CMOS
Sensor Area 13 x 13 cm
Exposure time 14,3/15,0 sec (Child/Adult, Standard PAN)
PAN IMAGING PROGRAMS Adult panoramic
Child panoramic
Option 3 layer focal PAN
TMJ closed/open mouth
Sinus
Sectorial panoramic
• Emi Panoramic R
• Emi Panoramic L
• Low dose Pan (optional)
• Ortho panoramic (optional)
• Incisors
• Bitewing R – Bitewing L – Bitewing r + L (optional)
Patient selection : Adult/child, 3 size for all modalities

3D IMAGING
Imaging modalities Dentition, TMJ R, TMJ L
Field of view 9 x 9 cm (height x diameter) (or 11×11, or MULTIFOV 9×9, 11×11, 6×11, 5×5, depending on chosen configuration)

Detector pixel size 100µm ( 200µm in binning 2×2)
Voxel size 121 µm
Acquisition rate 2 frames per degree
Tube head rotation 230°
Dynamic range 14 bit gray level (max 16.384)
Number of acquired frames 460
Scan tim/Exp.time 12,2 sec/8,5 sec
3D reconstruction time 2,5 mm Aleq @ 70 kV)

X RAY GENERATOR
Generator type High frequency DC
Focal spot 0,5 mm
Total filtration > 2,5 mm Aleq @ 70 kV)
Leakage radiation According to IEC 60601-2-63
Anodic voltage 61 ÷ 85 kV, step 3 kV
Anodic current 4 ÷ 10mA 9 steps
POWER requirement 230V, 10A, single phase, (50/60Hz)
GENERAL
Weight 110 Kg
Dimensions (HxWxD) 2230mm x 1720mm x 1070mm

CEPHALOMETRIC IMAGING
Sensor Type DIGITAL FLAT PANEL DR Amorphous Silicon
Image Format 24cm x 30cm maximum
Exposure type Single shot DR
Acquisition time Immediate
Setting and exposure time 200ms-500ms
CEPH PROGRAMS L/L
P/A
A/P
Carpus projection

GENERAL
Weight 135 Kg
Dimensions (HxWxD) 2290mm x 910mm x1070mm
