Pasin-Pin®

The versatile mini implant screw

The Pasin-Pin® system was developed to offer maximum flexibility in orthodontic therapy. The coupling option between the implant and the anchoring device is not system-bound and thus offers the practitioner maximum treatment flexibility. All shapes of round and square wires up to a dimension of 1.15 mm (0.046 inch) can be securely and stably attached using a screwable connection. Pasin-Pin implants are made of titanium grade 5 (Ti6AL4V) and have a self-drilling, self-tapping thread. This material is characterized above all by high strength and biocompatibility. This material has excellent mechanical properties and strength, especially for orthodontic implants with a small diameter.

• The Pasin-Pin® is available in various diameters and lengths for the upper and lower jaw.
• The length specification of the Pasin-Pin® results from the thread length and the transgingival part. The head of the Pasin-Pin® has a slot width of 1.2 mm (0.047 inch).

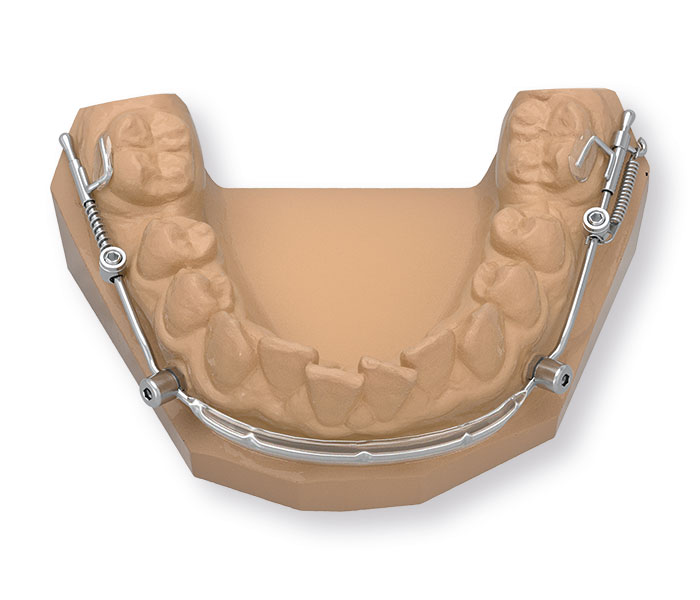

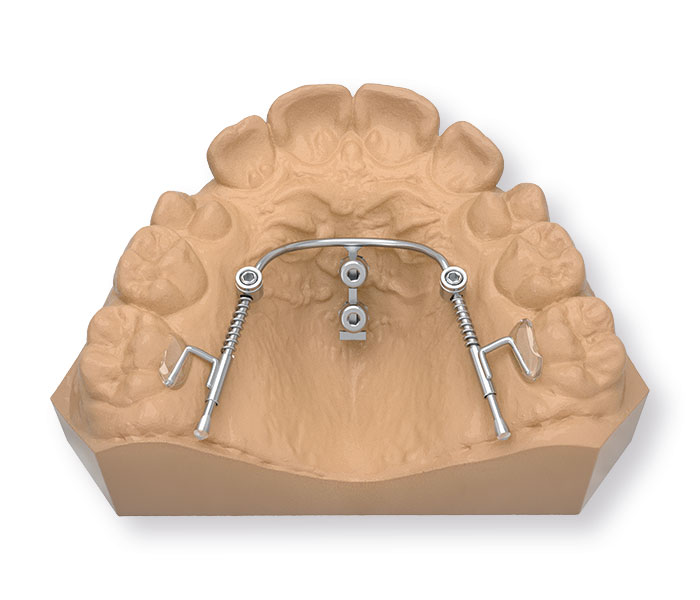

• The coupling elements (square wires, round wires, etc.) are fixed using the screwable connection Pasin-Pin® Fix Cap. In addition, for non-slot-filling wires, a light-curing composite can be used to stabilize the wire.
• Rotational Stability: When the orthodontic appliance is dismantled from the Pasin-Pin® or when the screwed Pasin-Pin® Fix Cap is loosened, the implant becomes rotationally stable thanks to stabilization of the appliance and unintentional unscrewing of the implant is prevented.
• A small distance of only 0.4 mm between the transgingival part of the implant and the anchoring wire ensures low leverage and shear forces, which prevent loosening of the implant.
• The Pasin-Pin® is delivered sterile and guarantees an absolutely clean surface. The surface is free of organic and inorganic particles and toxins to prevent premature implant loss.

Product Features

• Entirely made of titanium grade 5 (Ti6AL4V)
• Self-drilling and self-tapping thread
• No welding necessary
• Different thread lengths: 8, 10, 12 and 14 mm
• Different thread diameters: 1.6, 2.0 and 2.3 mm
• Slot width for wire: 1.2 mm
• Assembly of round or square wire possible
