PRIMA DNT Microscope, CMO 250mm
Labomed Europe b.v. · #6138000-000 · source

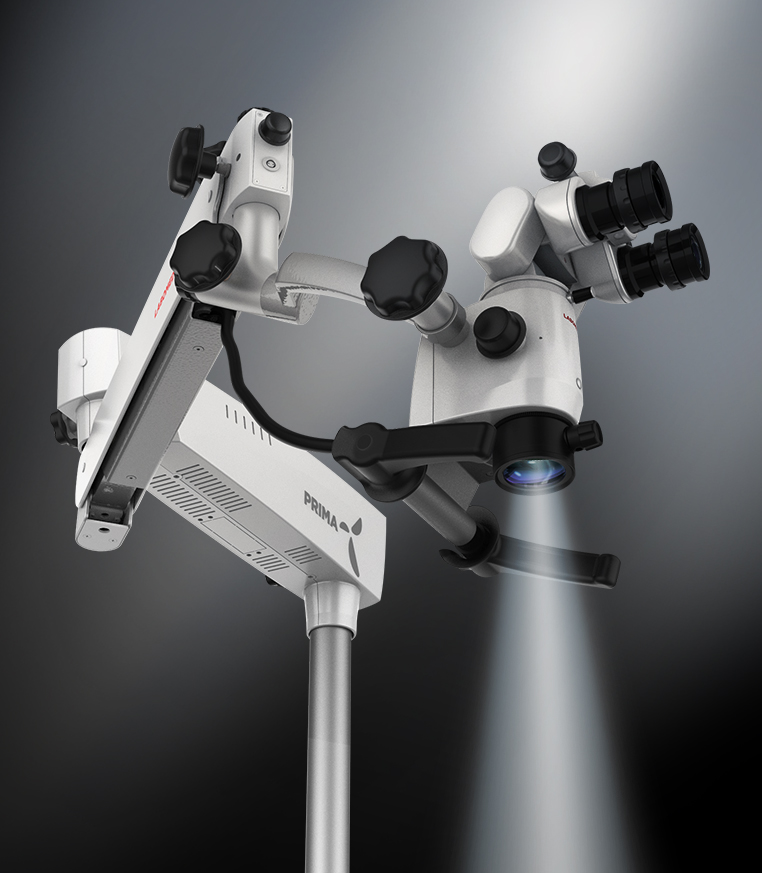

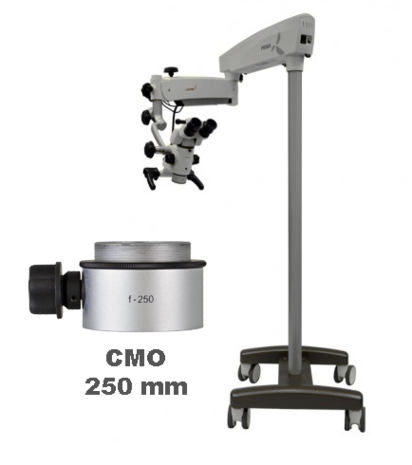

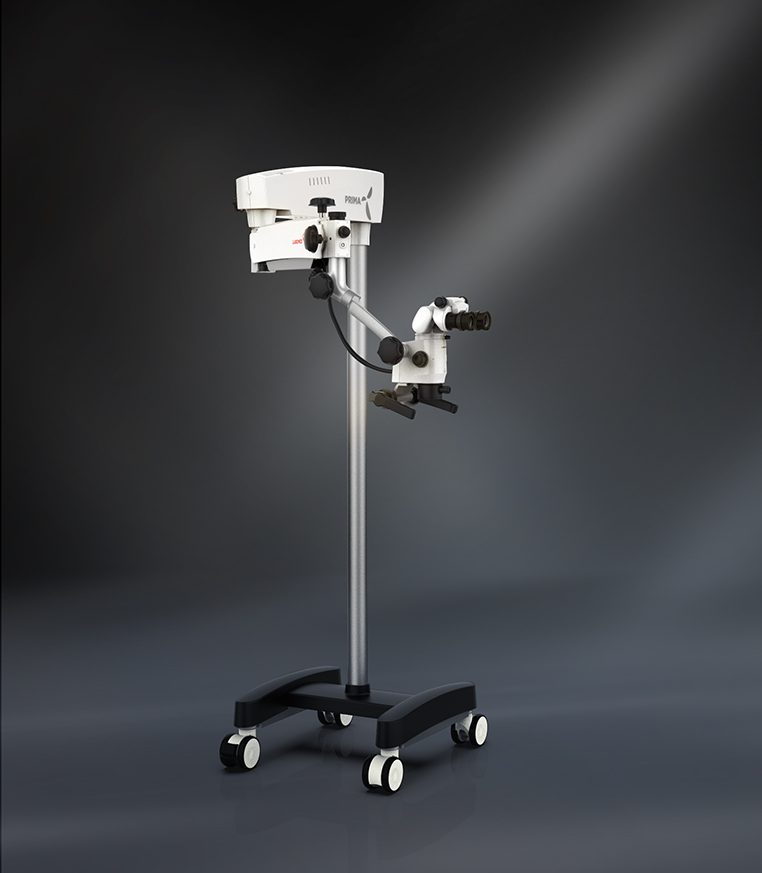

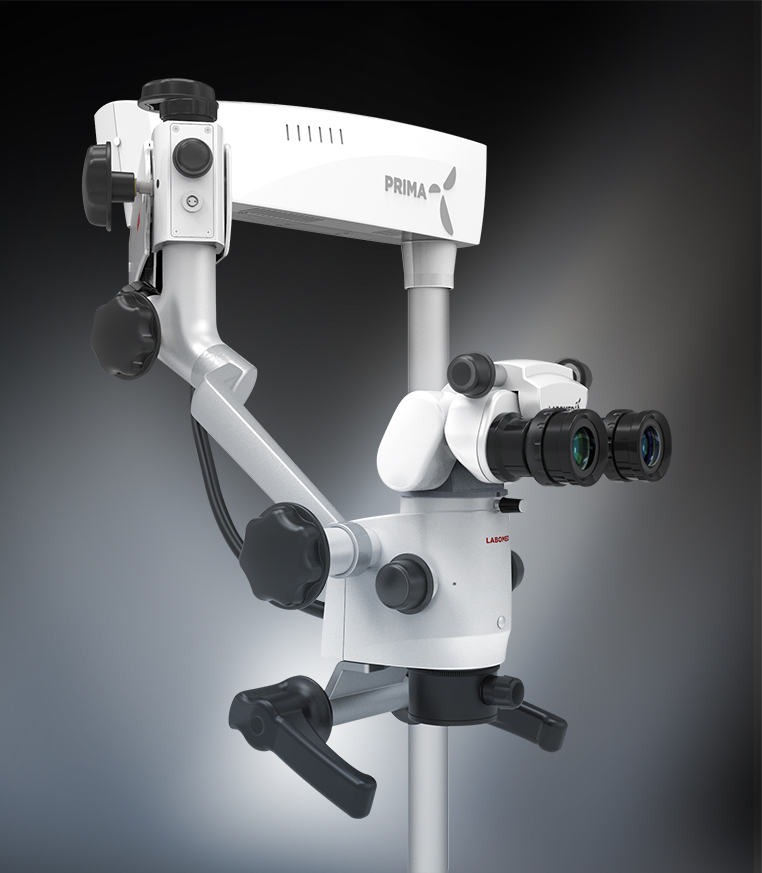

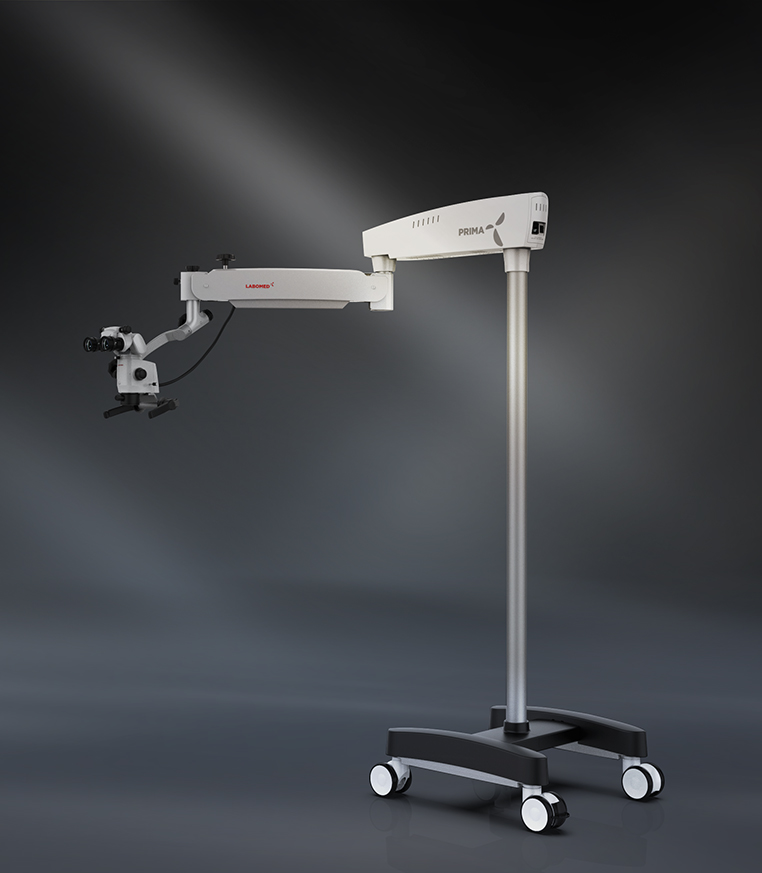

Prima DNT Microscope Basic with mobile stand and CMO 250 mm
The Prima DNT dental microscope reflects a performance-driven and modular design for the evolving needs of today's dental professional. With an intelligent LED illumination system, crisp optics and fluid articulation, the Prima DNT is a technology leader among dental operating microscopes.
A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.
An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.
The optional NuVar™ objective delivers variable working distances, making the Prima DNT more versatile and user friendly for dental professionals.
The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.
Microscope Specifications
Prima DNT microscope with an intelligent LED illumination system
Mounting system: mobile stand with 2 locking wheels
Suspension arm: 1125 mm
Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x
Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm
Objective: lens f=250 mm with a manual fine focus control knob and sterilizable cap
Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock
Observation head: ergonomic adjustable handgrips for observation head
Microscope carriers: 120º carrier
Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux
Input: AC 115-240V, 50/60Hz
Filter: yellow and green filter with filter holder
Vertical movement of arm: 600 mm
Fuse: quick-acting fuse 1.0 Amp
Standard accessories: dust cover for microscope observation head and illumination box
PACKAGE CONTENTS:
> Prima DNT microscope > Objective CMO 250 mm > Tools for securing base and pillar > Sterilizable knob covers > Nylon dust cover
DIMENSIONS (mm)
MOUNTING (mm)
CONFIGURATIONS
Product Information
| Manufacturer | Labomed Europe b.v. |
|---|---|
| Fuse | quick-acting fuse 1.0 Amp |
| Head | Ergo head (moving over 210º degree) |
| Input | AC 115-240V, 50/60Hz |
| Filter | yellow and green filter with filter holder |
| Eyepieces | WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock |
| Objective | lens f=250 mm with a manual fine focus control knob and sterilizable cap |
| Basic Udi Di | 81017855DNTSURGICALCW |
| Illumination | fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux |
| Magnichanger | 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x |
| Product Code | 6138000-000 |
| Suspension Arm | 1125 mm |
| Viewing Bodies | ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm |
| Mounting Option | H-base with 4 wheels |
| Mounting System | mobile stand with 2 locking wheels |
| Objective Option | 250mm |
| Observation Head | ergonomic adjustable handgrips for observation head |
| Type Of Microscope | Prima DNT |
| Light Output In Lux | 135.000 Lux |
| Magnichanger Option | 5-step |
| Microscope Carriers | 120º carrier |
| Total Length Of The Arm | 525 + 616 = 1141 mm |
| Vertical Movement Of Arm | 600 mm |
| Afmeting En Gewicht Doos 1 | 58 x 43 x 24 cm; 7,4 kg |
| Afmeting En Gewicht Doos 2 | 159 x 42 x 37 cm; 32,2 kg |
| Afmeting En Gewicht Doos 3 | 67 x 33 x 29 cm; 30,5 kg |
| Afmeting En Gewicht Doos 4 | 70 x 33 x 33 cm; 20,1 kg |
| Afmeting En Gewicht Doos 5 | 70 x 33 x 33 cm; 20,1 kg |
| Afmeting En Gewicht Pallet 1 | 120 x 80 x 173 cm; 101 kg |
