Pterygoid Implant

Alfa Gate · source

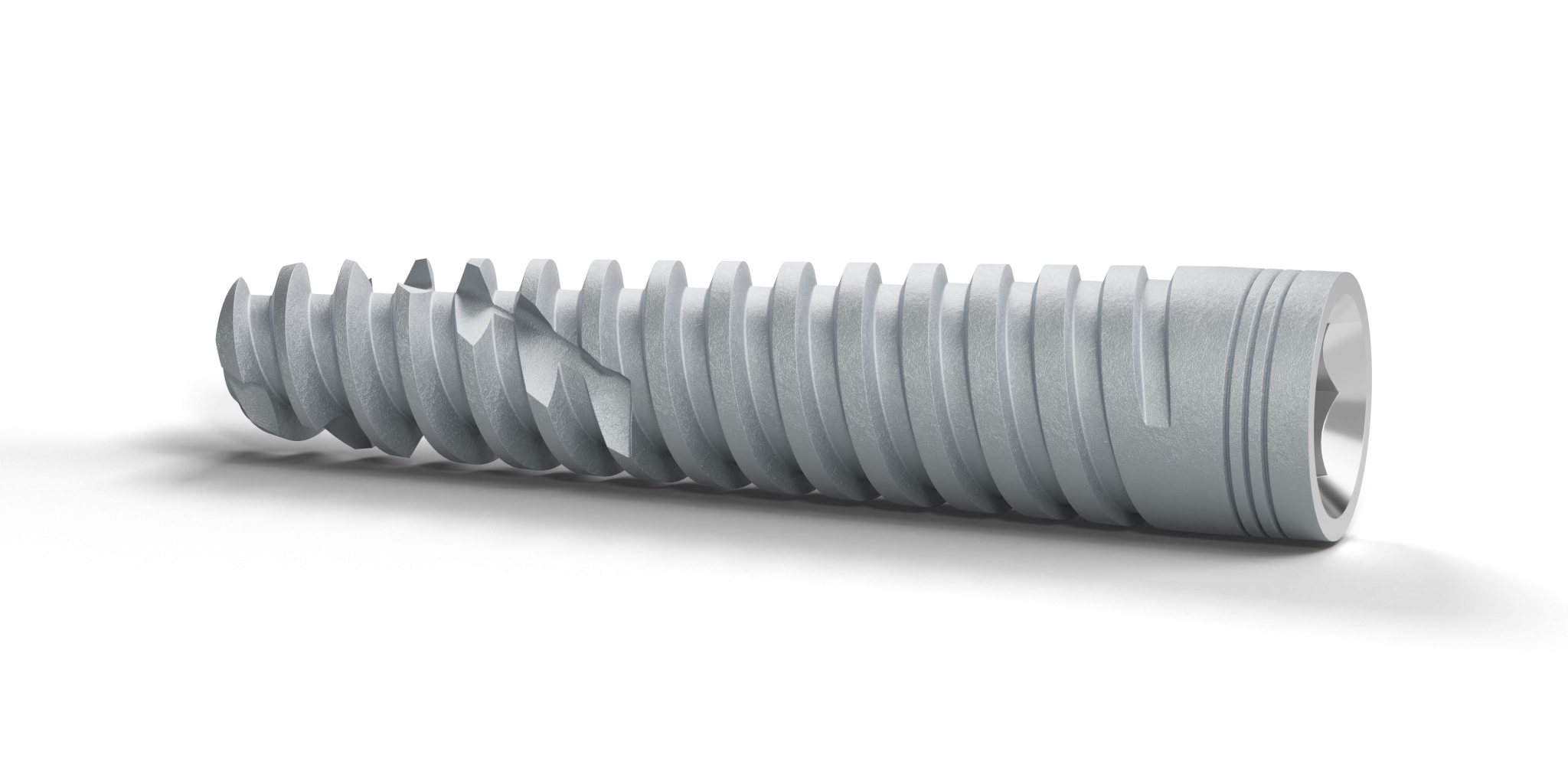

The Pterygoid Implant is designed for advanced posterior maxillary cases where bone height is limited, offering a solution with a length reaching up to 22 mm to engage dense cortical bone in the pterygoid region and achieve strong primary stability. This extended length allows clinicians to bypass compromised alveolar bone, reduce the need for sinus grafting, and support immediate or early loading protocols.

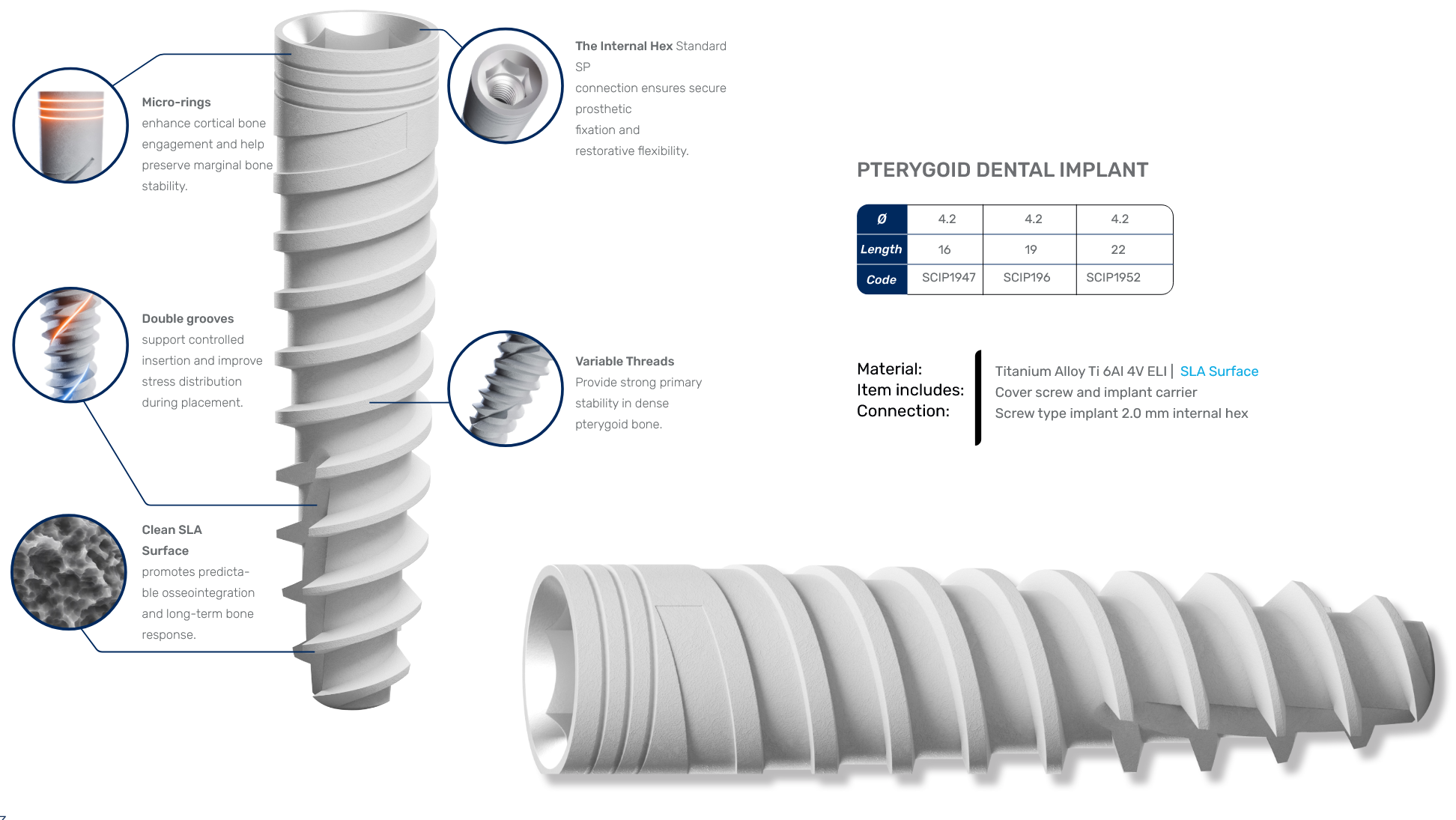

Body Characteristics

  • Internal Hex Connection.
  • Double grooves support controlled insertion and improve stress distribution during placement.
  • Double grooves, enhanced bone interlocking.
  • Micro-rings.

Material & Surface

  • Titanium Alloy Ti 6Al 4V ELI
  • Sand blasting and Acid-Etching

Item includes:

  • Cover screw and implant carrier

Connection:

  • Internal Hex

Platform:

  • Standard Internal Hex Connection

Product Information

ManufacturerAlfa Gate
SurfaceSand blasting and Acid-Etching
MaterialTitanium Alloy Ti 6Al 4V ELI
PlatformStandard Internal Hex Connection
ConnectionInternal Hex
Body FeaturesDouble grooves, Micro-rings
Maximum Length22 mm
