Self-Ligating Bracket 2.0
Zhejiang Risheng Medical Technology Co . · source
Self-Ligating Bracket 2.0
Product features

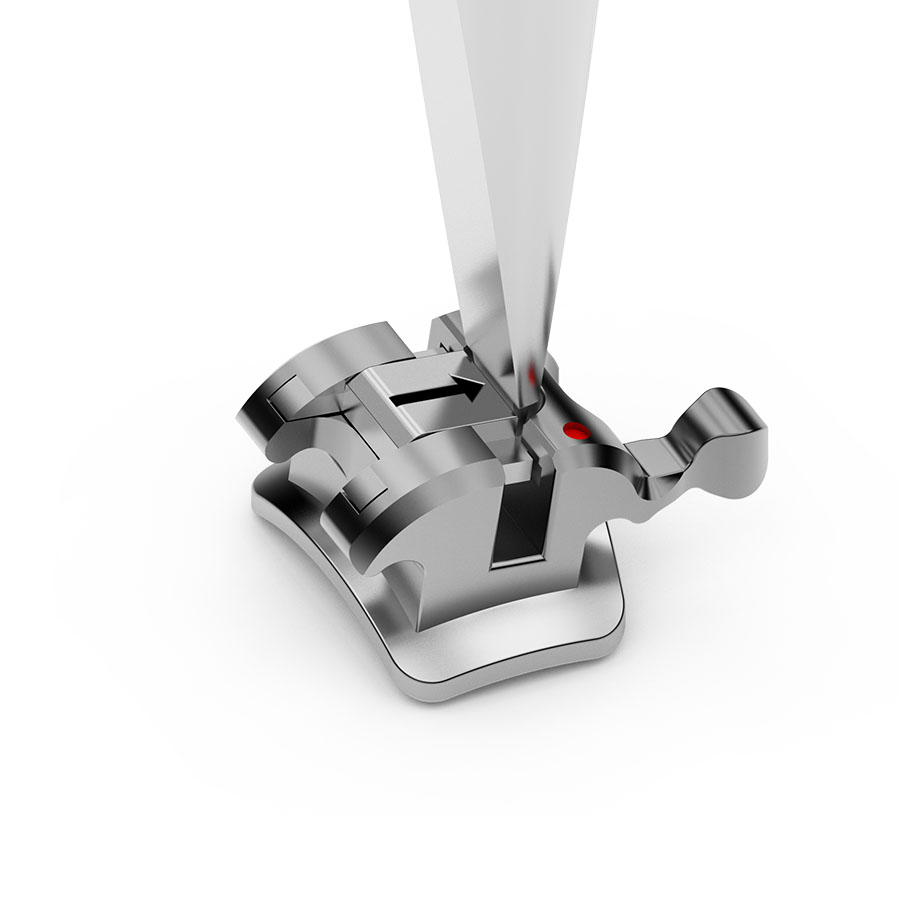

Precise Carving Arrow Easy open and close stable performance and long life use.
CNC Milling Workmanship Ensure all techinical data in precision and smooth slotin low friction.
Laser Arrow on Clip Guide fast bonding to correct position.
Four Wings Remained Enough tie-wing area for better rotation control in final treatment.
Various Choice in Torque(High Medium ,Low) ,Offer optimized rotation control in clinical treatment.
Product Parameters (MBT)
The bracket is available in MBT, Q Standard, High Torque, and Low Torque options with the following specifications:
Maxillary Teeth 15, 14, 13, 12, 11, 21, 22, 23, 24, 25 with varying torque values (-7° to +17°), tip values (0° to +8°), and in/out measurements (0.59 to 0.89 mm). Width is 2.8 mm across all teeth.
Mandibular Teeth 45, 44, 43, 42, 41, 31, 32, 33, 34, 35 with varying torque values (-7° to +17°), tip values (0° to +8°), and in/out measurements (0.6 to 0.95 mm). Width is 2.8 mm across all teeth.
Available in 0.022" no hook and 0.022" with hook configurations.
Product Parameters (Q Standard)
Maxillary with torque values ranging from -11° to +17°, tip values from 0° to +8°, in/out measurements from 0.59 to 0.89 mm, and width from 2.8 to 3.0 mm.
Mandibular with torque values ranging from -17° to +7°, tip values from 0° to +3°, in/out measurements from 0.6 to 0.95 mm, and width of 2.8 mm.
Product Parameters (High Torque)
Maxillary with torque values ranging from -4° to +22°, tip values from 0° to +8°, in/out measurements from 0.59 to 0.89 mm, and width of 2.8 mm.
Mandibular with torque values ranging from -17° to +11°, tip values from 0° to +3°, in/out measurements from 0.6 to 0.95 mm, and width of 2.8 mm.
Product Parameters (Low Torque)
Maxillary with torque values ranging from -11° to +2°, tip values from 0° to +8°, in/out measurements from 0.59 to 0.89 mm, and width of 2.8 mm.
Mandibular with torque values ranging from -17° to 0°, tip values from 0° to +3°, in/out measurements from 0.6 to 0.95 mm, and width of 2.8 mm.
Product Code (with wires & tool)
MBT Torque: SMM2-3407, SMM2-3307, SMM2-3007 Q Standard Torque: SMQ2-3407, SMQ2-3307, SMQ2-3007 High Torque: SMH2-3407, SMH2-3307, SMH2-3007 Low Torque: SML2-3407, SML2-3307, SML2-3007
Product Code (no wire & tool)
MBT Torque: SMM2-3402, SMM2-3302, SMM2-3002 Q Standard Torque: SMQ2-3402, SMQ2-3302, SMQ2-3002 High Torque: SMH2-3402, SMH2-3302, SMH2-3002 Low Torque: SML2-3402, SML2-3302, SML2-3002
Product Information
| Manufacturer | Zhejiang Risheng Medical Technology Co . |
|---|---|
| Width | 2.8 mm (3.0 mm for Q Standard tooth 23) |
| Material | CNC Milling Workmanship |
| Slot Size | 0.022" |
| Hook Options | No hook, With hook |
| Maxillary Teeth | 15, 14, 13, 12, 11, 21, 22, 23, 24, 25 |
| Mandibular Teeth | 45, 44, 43, 42, 41, 31, 32, 33, 34, 35 |
| Torque Standards | MBT, Q Standard, High Torque, Low Torque |
