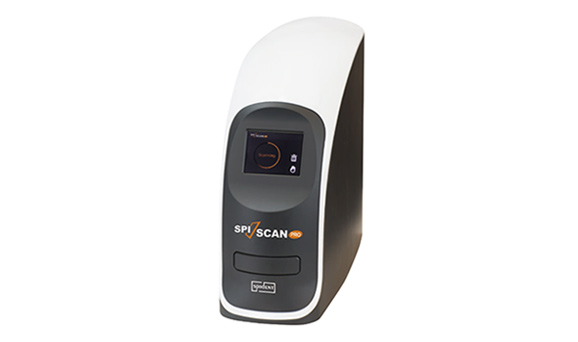

SPI SCAN PRO
IZEN IMPLANT CO., LTD. · #SPI SCAN PRO · source
Introduction
- Compact and affordable
- Elegant design & Streamlined operation
- Unmatched flexibility to help your practice grow
- Unique LCD Color touch screen panel
- Built-in Erase function
Specifications
Selectable Pixel Size: High: 35㎛ / Standard: 64㎛
Sampling Pixel Pitch (35㎛): 14.3 lp/mm
Readout time: 4.1 ~ 7.2 sec
Resolution: Data Capture: 16-bites per pixel / 65,000 graytones
Eraser: Embedded
Dimension & Weight: 265 (H) x 120 (W) x 318 (D) mm / 5.5Kgs
Interface: USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps)
QuantorDent Imaging Software: Imaging file formats: DICOM 3.0, TIFF, BMP, JPEG (DICOM SEND, Embedded Viewer) Window Level, Multi Frequency Image Processing, Zoom, Cropping, Mark User defined LUT, Supporting Dental Chart and Dentition
Computer workstation Minimum requirements: Inter Core Duo / Core 2 Processor, Min. 80 GB Hard Disk, 2 GB RAM, Windows 7 & 8 NetCard (100 Mbit), CD/DVD, 2 USB 2.0 ports, Monitor: 1,280 x 900 pixels, DVI Interface
Power requirements: 100 ~ 240V / 50 ~ 60Hz, 30W, UPS required
Regulatory approvals: FDA 510(k), CE (0120), UL, cUL, FCC, KFDA
Safety Standards: ISO13485, ISO9001, ISO14971, 93/42/EEC, EN60601-1
Operating Conditions: Temperature: 1530℃ (5986℉), Temperature gradient: 0.5 Degrees celsius / min Humidity: 15~95% RH , Magnetic Field: Max. 1,260 Micro Tesla
Product Information
| Manufacturer | IZEN IMPLANT CO., LTD. |
|---|---|
| Depth | 318 mm |
| Width | 120 mm |
| Eraser | Embedded |
| Height | 265 mm |
| Weight | 5.5 Kg |
| Connection | USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps) |
| Dimensions | 265 (H) x 120 (W) x 318 (D) mm |
| Resolution | Data Capture: 16-bites per pixel / 65,000 graytones |
| Temperature | 15~30℃ (59~86℉) |
| Power supply | 100 ~ 240V / 50 ~ 60Hz |
| Readout Time | 4.1 ~ 7.2 sec |
| Certification | CE, FDA |
| Place Of Origin | Korea |
| Safety Standards | ISO13485, ISO9001, ISO14971, 93/42/EEC, EN60601-1 |
| Pixel Size (high) | 35㎛ |
| Power Consumption | 30W |
| Dimension & Weight | 265 (H) x 120 (W) x 318 (D) mm / 5.5Kgs |
| Operating Humidity | 15~95% RH |
| Power Requirements | 100 ~ 240V / 50 ~ 60Hz, 30W, UPS required |
| Regulatory Approvals | FDA 510(k), CE (0120), UL, cUL, FCC, KFDA |
| Sampling Pixel Pitch | 14.3 lp/mm |
| Pixel Size (standard) | 64㎛ |
| Selectable Pixel Size | High: 35㎛ / Standard: 64㎛ |
| Sampling Pixel Pitch (35㎛) | 14.3 lp/mm |
