Tilite Alloys

TILITE ALLOYS WITH TITANIUM

TALLADIUM OFFERS FOUR TILITE ALLOYS WITH TITANIUM IN FOUR CO-EFFICIENCY RANGES KEYED TO DIFFERENT PORCELAINS.

PREMIUM

CTE @ 600°C - 14.1 MELTING RANGE 2200-2375°F / 1204-1302°C Casting Temperature 2425°F/1329°C Density 7.7 g/cm

VITA

CTE @ 600°C - 13.7 MELTING RANGE 2200-2375°F / 1204 -1302°C Casting Temperature 2425°F / 1329°C Density 7.7 g/cm

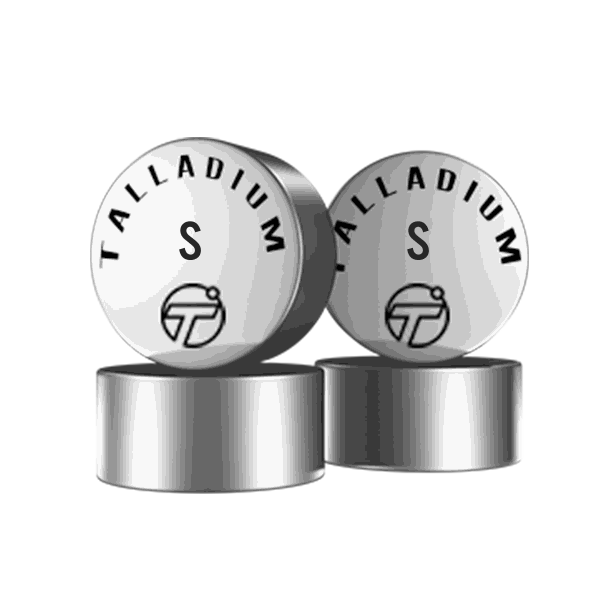

STAR

CTE @ 600°C - 14.6 MELTING RANGE 2200-2375°F / 1204 -1302°C Casting Temperature 2425°F / 1329°C Density 7.7 g/cm

OMEGA

CTE @ 600°C - 13.4 MELTING RANGE 2200-2375°F / 1204-1302°C Casting Temperature 2425°F / 1329°C Density 7.7 g/cm

TILITE CASTING INSTRUCTIONS

WAXING Maintain a uniform .2 - .3mm thickness for copings.

SPRUING Direct spruing for single units is recommended using 10 gauge wax sprues. Indirect spruing with runner bar is recommended for multiple units.

INVESTING For optimum results use Talladium's Casting Investment following manufacturer's instructions.

BURNOUT After bench set, place the invested ring(s) in the burnout oven at 1700°F (927°C) and allow to heat soak 15 sec. per gram of investment in the ring. Add 10 mins. extra for each additional ring. For example, 60 gram ring x .25 of a minute = 15 minutes in oven.

CASTING Cast in quartz crucible without flux. Melt with a gas/oxygen torch with a multi-orifice tip. Oxygen setting should be 35 - 40 psi on the regulator. If using propane, set the fuel gauge no higher than 2 psi. Induction casting set temperature to 2425°F (1329°C). Do not overheat.

FINISHING Prepare surface with Talladium's Wear-Ever discs or T-2 Diamond. Thoroughly sandblast with 65-80 psi using 50 micron of Talladium's Brazilian reddish brown aluminum oxide. Place in ultrasonic cleaner using distilled water for 2 minutes.

DEGASSING Place unit(s) in furnace at 1000°F (538°C). Raise temp to 1790°F (977°C) at 100°F (55°C) per min. with full vacuum and no hold time. The surface should exhibit a straw-golden colored oxide. If the oxide appears to be blueish in color then the high temperature is too low. If the oxide appears to be reddish brown color then the high temp was too high.

OPAQUING The first opaque should be brought up to 1850°F (1010°C) then proceed to follow manufactures instructions. University tests have shown a stronger bond using this method.

SOLDERING Hi-Tech Pre Solder #202. Use Hi-Tech Pre Flux #702 Post Solder #201. Use Post Flux #701

TILITE PROPERTIES

Property	STAR	PREMIUM	V	OMEGA
COLOR	Silver	Silver	Silver	Silver
C.T.E @ 500°	14.5	14.0	13.6	13.2
C.T.E @ 600°	14.6	14.1	13.7	14.2
MELTING RANGE	2200-2375°F /1204-1302°C	2200-2375°F /1204-1302°C	2200-2375°F /1204-1302°C	2200-2375°F /1204-1302°C
CASTING RANGE	2425°F /1329°C	2425°F /1329°C	2425°F /1329°C	2425°F /1329°C
BRINELL HARDNESS	205	215	225	240
YIELD STRENGTH (PSI)	115,000	96,000	98,000	100,000
TENSILE STRENGTH (PSI)	155,000	154,000	148,000	135,000
ELONGATION (%)	12	11	10	8
SPECIFIC GRAVITY	7.7	7.7	7.7	7.7

TILITE PORCELAIN COMPATIBILITY

STAR ALLOY

• Avante
• Sensation
• Synspar
• Ceramco II Silver
• Spectrum

PREMIUM ALLOY

• Luminesse High Fusing
• Luminesse Low Fusing
• Elephant
• *Olympic II
• *Excelco
• *Pencraft
• IPS Style Ceram
• Excelsior
• Radiance
• *Finesse
• Reflex
• Authentic Pulse
• Fortune
• Silhouette
• *Ceramax
• GC Initial MC
• Solera
• *Ceramco
• Illusion
• *Tru-Est
• *Ceramco II
• IPS d.sign
• V-Series
• Ceramco 3
• IPS InLine
• *Vintage-Halo
• Ceramco iC
• *Jelenko
• Vision (bisque bake 10°C higher)
• C-Mix
• Life-Essence
• VM®13
• Duceram
• *Micro-Bond
• VMK Master
• Duceram-Kiss
• Microlucent
• *Will-Ceram
• Duceram Plus
• Noritake EX-3
• *ZEO CE Light

"V" ALLOY

• *BMK
• *Vintage (Regular)
• *Creation
• *VMK-68
• Elite
• *VMK-68N
• Heraceram
• *Vita Omega 900
• Symbio Ceram

OMEGA ALLOY

• *IPS Classic
• *VMK-95
• *Omega

*THESE HAVE BEEN APPROVED AND TESTED BY TALLADIUM *TALLADIUM SUGGEST USING THE REGULAR OPAQUE IN A NEUTRAL SHADE, LIKE THE A-2, FOR THE FIRST OPAQUE COAT AND FIRE AT 1850 - 1875°F. THEN ON THE SECOND COAT USE THE FINESSE OPAQUE *WHEN FIRING THE BODY BAKE (BISQUE BAKE) @ 895°C/1643°F USE THE TILITE V ALLOY *WHEN FIRING THE BODY BAKE (BISQUE BAKE) @ 915°C/1679°F USE THE TILITE PREMIUM ALLOY NOTE: TALLADIUM IS NOT RESPONSIBLE FOR CHANGES MADE BY THE PORCELAIN MANUFACTURER.
