TRAY-LUX M7
Monitex Industrial Co., Ltd. · source
LUX M7
TRAY-LUX
Ultraviolet LED Curing Unit
The TRAY-LUX M7 specializes in post curing 3D printing or polymerizes resin-based impression tray material.
This multi-function unit is equipped with LCD display
built-in cooling fan and auto sleep mode.

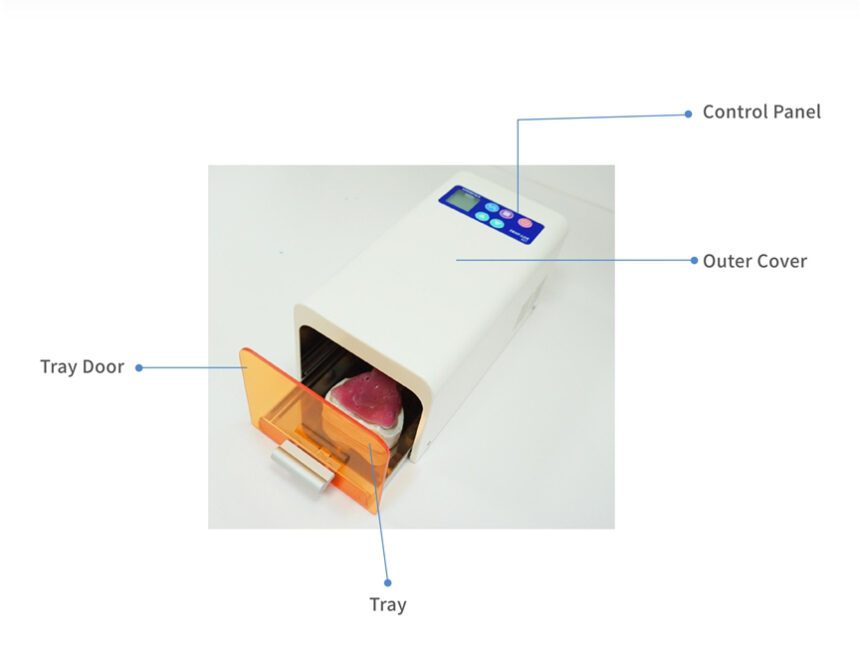

PARTS & FUNCTIONS
Full light spectrum range of UV LED to cover the wavelength of most 3D prints materials.
Curing Chamber can hold both an upper and a lower tray at the same time.

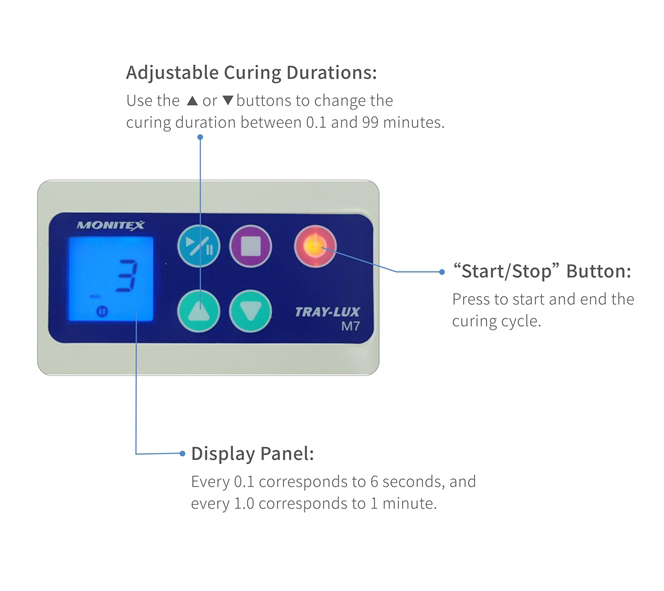

Time adjustable from 10 seconds to 20 minutes.
Easy to operate and clean.
Specifications
UV Lamp: 3 W, 4 UV LED & 2 Blue LED
Power Input: AC 100V ~ 220V, 50/60 Hz
Wavelength: 360420 nm (Peak 390400 nm) -UV, 420490 nm (Peak 455465 nm) -BLUE
Dimensions: 282(L) x 135(W) x 120(H) mm
Weight: 1.7 kg
Product Information
| Manufacturer | Monitex Industrial Co., Ltd. |
|---|---|
| Type | Ultraviolet LED Curing Unit |
| Weight | 1.7 kg |
| Uv Lamp | 3 W, 4 UV LED & 2 Blue LED |
| Features | LCD display, built-in cooling fan, auto sleep mode, curing chamber holds upper and lower tray, time adjustable 10 seconds to 20 minutes |
| Dimensions | 282(L) x 135(W) x 120(H) mm |
| Wavelength | 360~420 nm (Peak 390~400 nm) -UV, 420~490 nm (Peak 455~465 nm) -BLUE |
| Power Input | AC 100V ~ 220V, 50/60 Hz |
