TriCAM CX560
Monitex Industrial Co., Ltd. · source
TriCAM
The stylishly design TriCAM CX560 is integrated with a high resolution intraoral camera, a 5.6"TFT LCD screen, and X-ray film reader. Images captured from the intraoral camera or the X-ray film reader can all be saved with a simple press of a button to the microSD card. The unit can freely rotate in every angle for better viewing and operation, also it can be integrated into trolley or dental units.

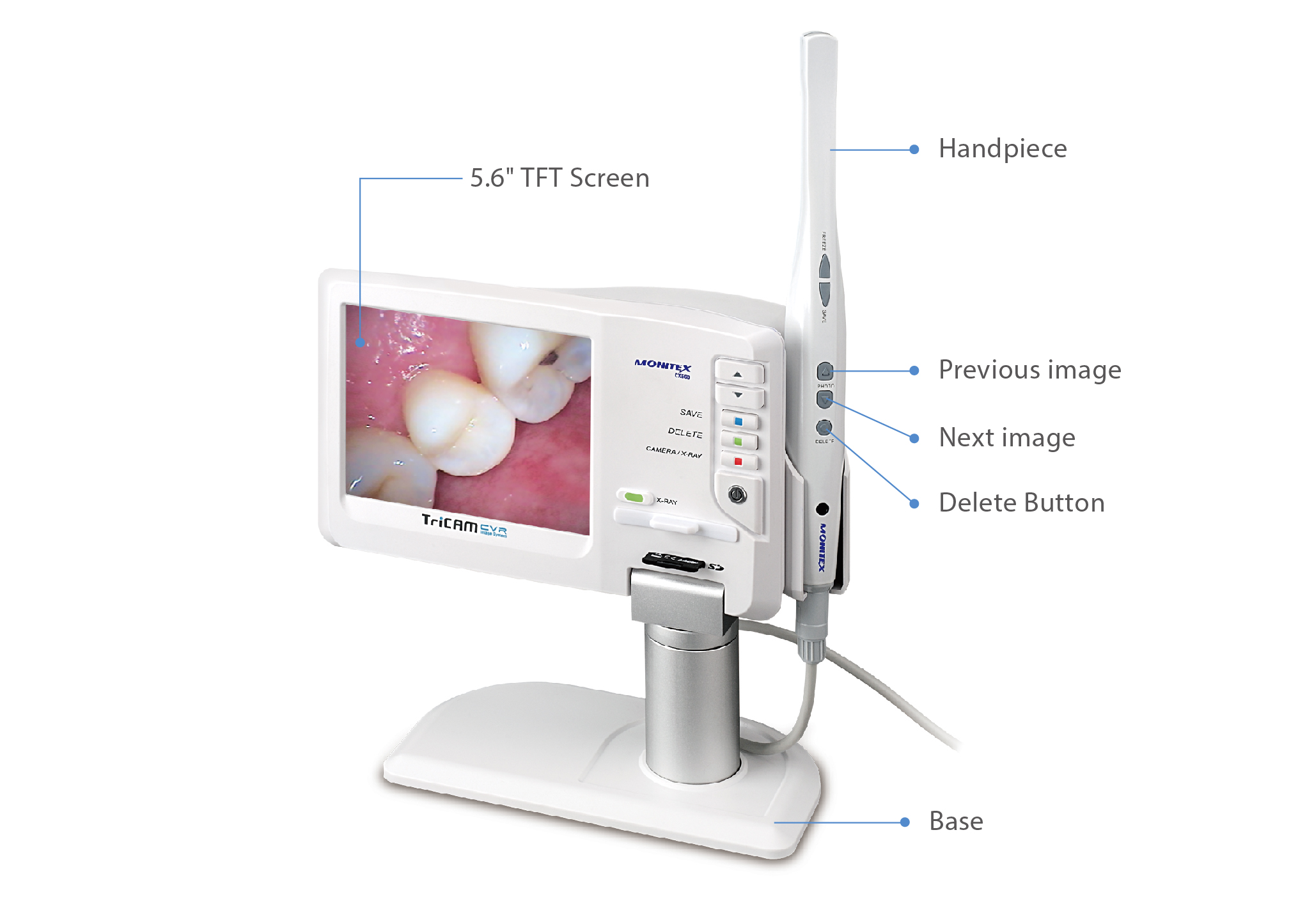

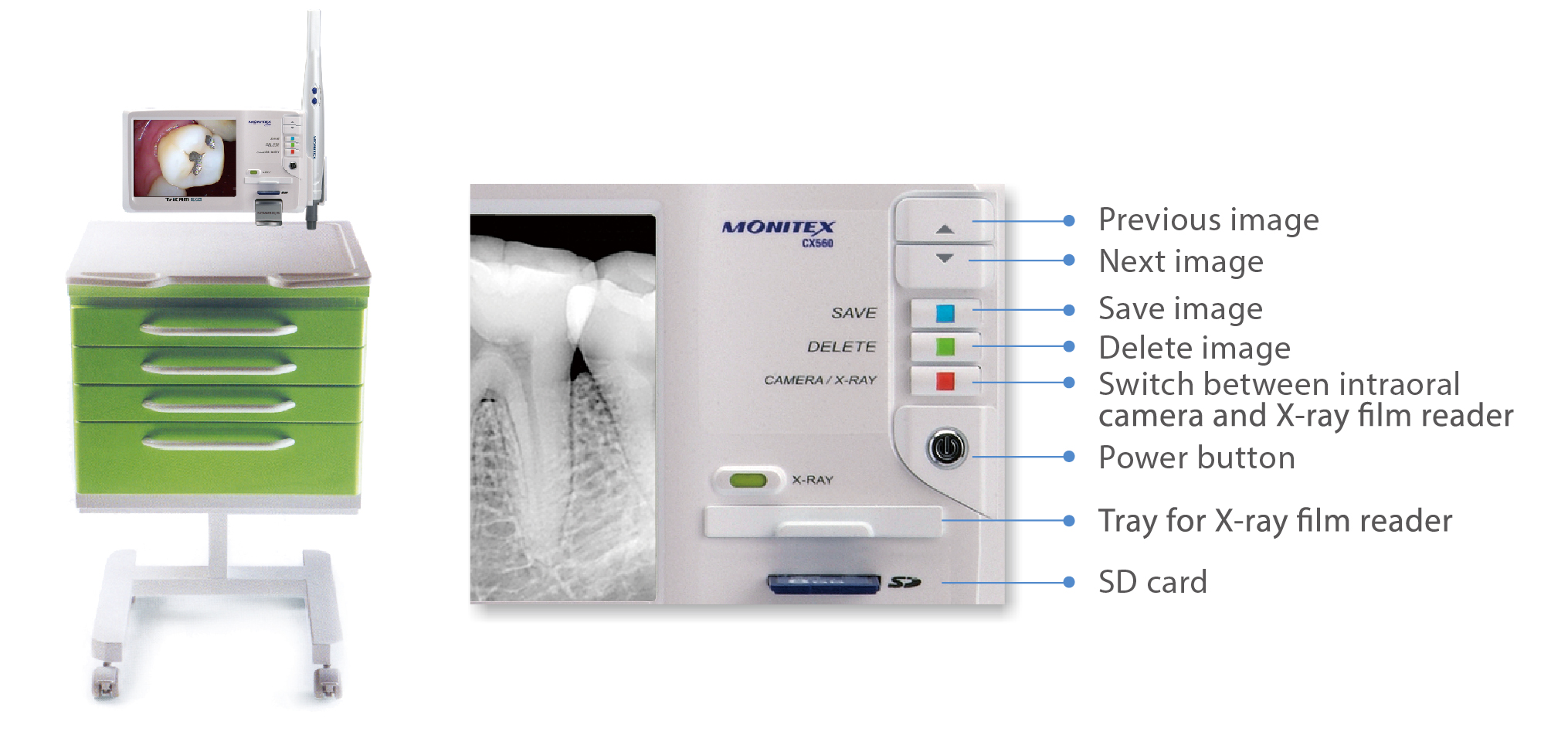

PARTS & FUNCTIONS
Can connect to another monitor via video and VGA output
Easily switch between viewing intraoral camera images and X-ray film reader images
Specifications
Intraoral Camera
Resolution: 300,000 pixels Image Sensor: 1/4" CMOS White Balance: Auto Focal Length: 4 mm ~ 35 mm Illumination Type: 6 white LED Handpiece Dimensions: 235(L) x 22(W) x 25(H) mm Handpiece Weight: 48.6 g
Monitor
Image Output: MicroSD, VGA, Video Display: 5.6" TFT LCD Resolution: 640 x 480 Power Input: AC 100~240V, 50/60 Hz Power Output: DC 5V---2A Dimensions: 235(L) x 102(W) x 212(H) mm Weight: 1.27 kgs
Product Information
| Manufacturer | Monitex Industrial Co., Ltd. |
|---|---|
| Power Input | AC 100~240V, 50/60 Hz |
| Focal Length | 4 mm ~ 35 mm |
| Image Output | MicroSD, VGA, Video |
| Image Sensor | 1/4" CMOS |
| Power Output | DC 5V---2A |
| White Balance | Auto |
| Monitor Weight | 1.27 kgs |
| Monitor Display | 5.6" TFT LCD |
| Handpiece Weight | 48.6 g |
| Illumination Type | 6 white LED |
| Monitor Dimensions | 235(L) x 102(W) x 212(H) mm |
| Monitor Resolution | 640 x 480 |
| Handpiece Dimensions | 235(L) x 22(W) x 25(H) mm |
| Intraoral Camera Resolution | 300,000 pixels |
