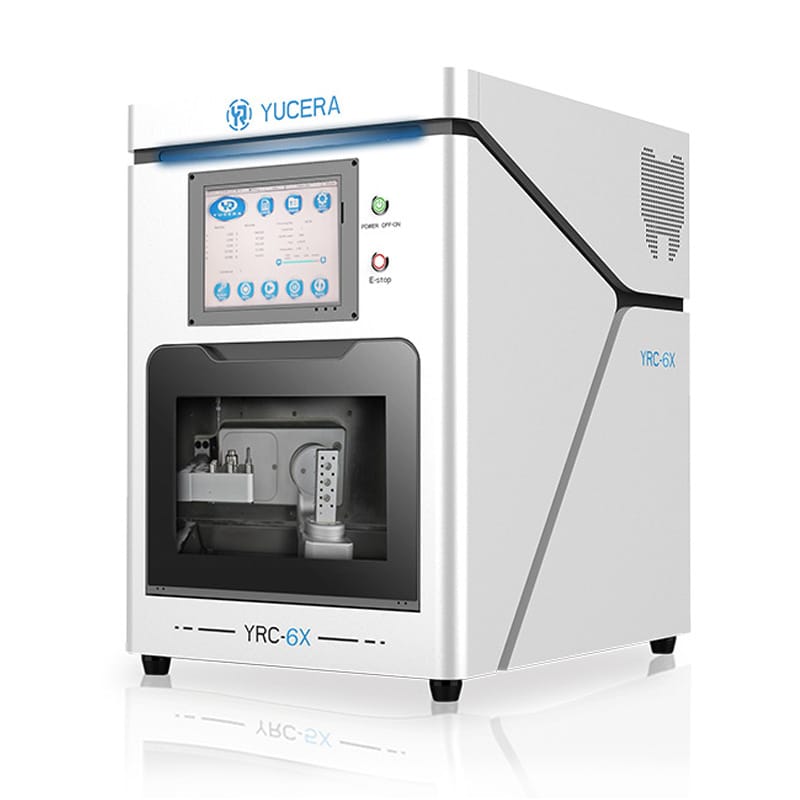

Wet 5-axis Dental Milling Machine YRC-6X
Yucera Shenzhen Yurucheng Dental Materials Co., Ltd. · source
Features

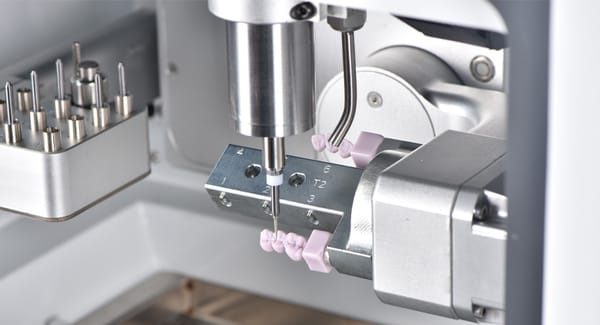

5-axis linkage, fine grinding: 5-axis linkage cutting, suitable for fast processing beside the chair, can perform large-angle fine grinding, 0.1mm edge thickness, can ensure no cracking, cutting titanium columns is very accurate, saving labor

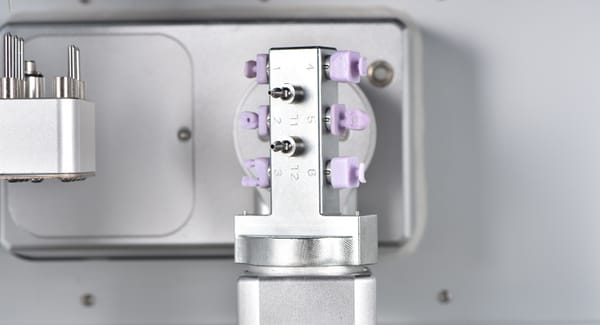

Suitable for a variety of materials: Can process a variety of common materials and prefabricated bases, can place up to 8 materials and 6 processing milling at the same time
Integrated water level monitoring: Automatic circulating water system, integrated water level control, high precision
You choose: material, indication
Material: Glass Ceramics, Titanium column, PMMA, Composite
Maximum freedom of indication: Veneer, Crown, Inlays, Onlays, Bridges, Abutments, Telescopic crowns
Technical Data
GENERAL
- Fields of application: Wet machining
- Materials: Glass ceramics, Titanium, Zirconia, PMMA, Composite materials
- Indications: Veneers, Single crowns, Inlays, Bridges, Abutments, Telescopic crowns
BASE SYSTEM
- Machine bed made of solid cast aluminum body
- Housing: Sheet steel housing, white high-gloss lacquer finish
- Number of axes: 5
- Linear axes X-Y-Z-axis
- Ground precision guides made of high-alloyed steel
- Rotary axis A-axis: Rotation angle 360°, infinite
- Rotary axis B-axis: Precision ball screw with rotary transmission. Rotation angle: +20°
- Lighting: RGB LED lighting with status display in the working chamber
ENVIRONMENTAL CONDITIONS
- Operating temperature: Between 10℃ and 35℃
- Air moisture: Max. 80% (relative), non-condensing
PROCESSING MODES
- 5-axis linkage, Wet milling
- Processing time: Full crown < 15 min, 3-unit bridge < 30 min
- Processable material thickness: 10-30 mm
CONNECTION REQUIREMENTS
- Rated Working Pressure: 6.0-7.5 bar (without water, oil-free)
- Power: 220-230 volts, 1.5 kw
AUTOMATION
- Tool change
- Tool magazine for 10 tools
DIMENSIONS & WEIGHTS
- Dimensions (W/D/H): 535x655x720mm with open flap and drawer
- Footprint (W/D): 480x580 mm
- Weight: 170 kg
SPINDLE
- High-frequency spindle, synchronous with pneumatic tool clamping
- Sealing air to prevent debris from entering
- Speed: Up to 60,000 rpm
- Power: Peak power (Pmax): 1500 watts, nominal power: 800 watts
APPROVALS
- All models: CE, VDE
- North America model: UL, FCC
Product Information
| Manufacturer | Yucera Shenzhen Yurucheng Dental Materials Co., Ltd. |
|---|---|
| Axes | 5 |
| Weight | 170 kg |
| Lighting | RGB LED with status display |
| Indication | veneers, single crowns, inlays, bridges, abutments, telescopic crowns |
| Wet Milling | yes |
| Air Moisture | max 80% relative, non-condensing |
| Rotary Axis A | 360° rotation, infinite |
| Rotary Axis B | +20° rotation with precision ball screw |
| Spindle Speed | up to 60,000 rpm |
| 5 Axis Linkage | yes |
| Block Capacity | 6+2 blocks |
| Housing Finish | white high-gloss lacquer finish |
| Water Pressure | 6.0-7.5 bar |
| Footprint Depth | 580 mm |
| Footprint Width | 480 mm |
| Dimensions Depth | 655 mm |
| Dimensions Width | 535 mm |
| Electrical Power | 220-230 volts, 1.5 kw |
| Housing Material | sheet steel housing |
| Dimensions Height | 720 mm |
| Material Capacity | up to 8 materials |
| Spindle Power Peak | 1500 watts |
| Materials Compatible | glass ceramics, titanium, zirconia, PMMA, composite materials |
| Operating temperature | 10°C to 35°C |
| Spindle Power Nominal | 800 watts |
| Tool Magazine Capacity | 10 tools |
| Full Crown Processing Time | less than 15 minutes |
| 3 Unit Bridge Processing Time | less than 30 minutes |
| Processable Material Thickness | 10-30 mm |
