BAOT PFZ Zirconia Porcelain Dental Crown Material

Introduction

Dentine sets the restoration tone, simulating natural tooth dentin. While, Enamel is used to mimics enamel's color and luster, enhancing aesthetics and protecting the structure. Transparent, in addition, adds a light-reflecting layer, improving natural aesthetics. Gingiva replicates gum tissue color and texture for natural aesthetics. Effects like OPAL 1, OPAL 3 and others are used to elevate restoration aesthetics.

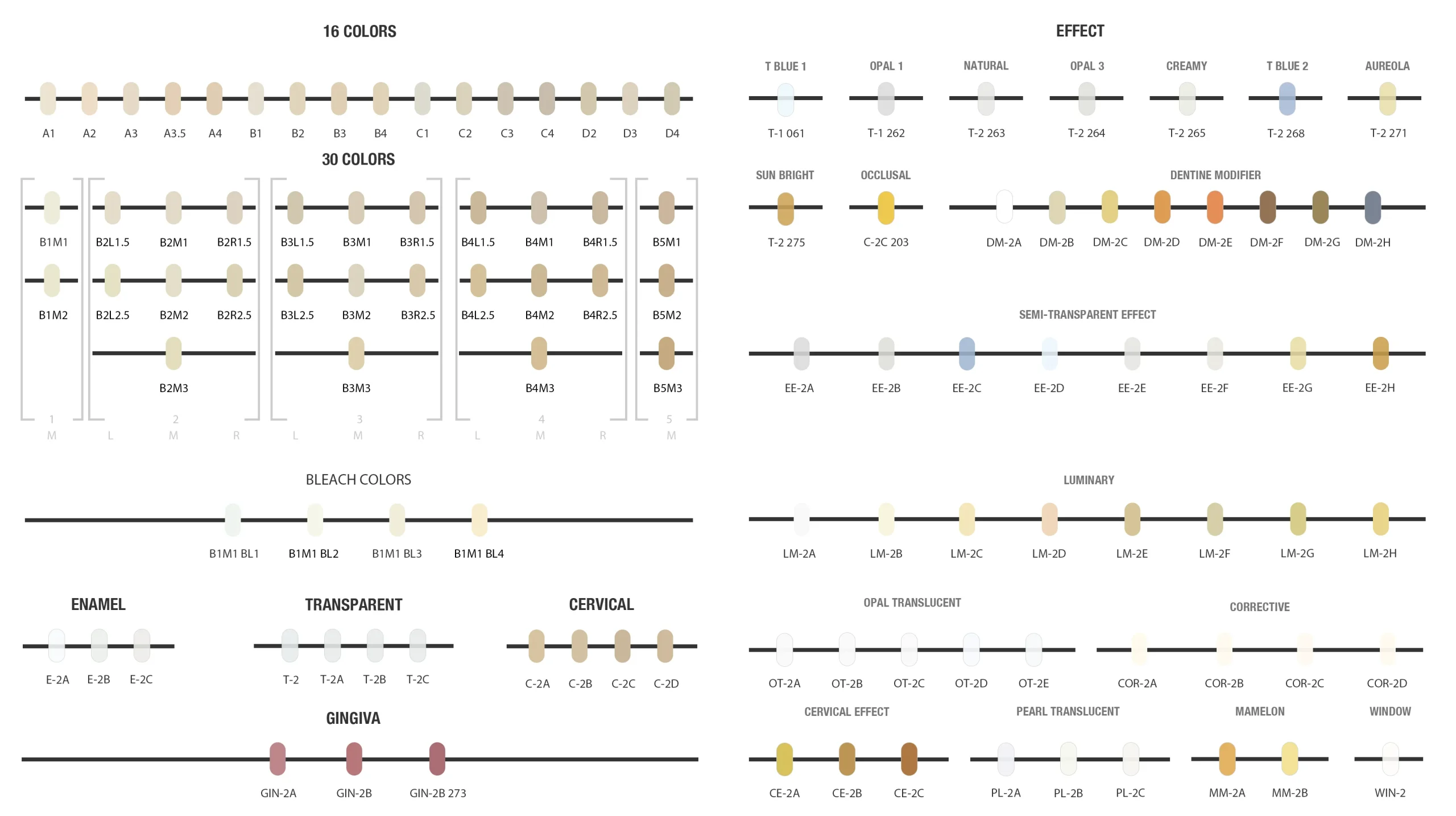

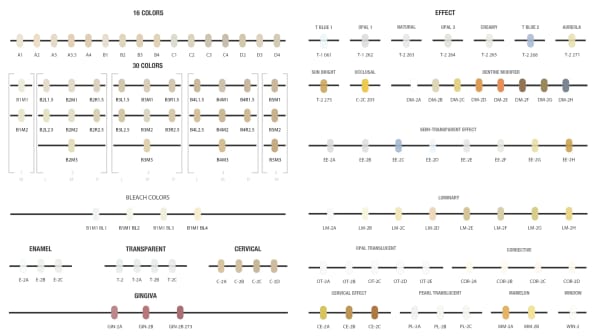

Specification

Dentine - Powder - 15g/50g - A1/A2/A3/A3.5/A4/B1/B2/B3/B4/C1/C2/C3/C4/D2/D3/D4/B1M1/B1M2/B2L1.5/B2L2.5/B2M1/B2M2/B2M3/B2R1.5/B2R2.5/B3L1.5/B3L2.5/B3M1/B3M2/B3M3/B3R1.5/B3R2.5/B4L1.5/B4L2.5/B4M1/B4M2/B4M3/B4R1.5/B4R2.5/B5M1/B5M2/B5M3/B1M1 BL1/B1M1 BL2/B1M1 BL3/B1M1 BL4

Enamel - Powder - 15g/50g - E-2A/E-2B/E-2C/E-2A 201

Transparent - Powder - 15g/50g - T-2/T-2A/T-2B/T-2C

Cervical - Powder - 15g - C-2A/C-2B/C-2C/C-2D

Gingiva - Powder - 15g - GIN-2A/GIN-2B/GIN-2B 273

T Blue 1 - Powder - 15g - T-2 261

Opal 1 - Powder - 15g - T-2 262

Natural - Powder - 15g - T-2 263

Opal 3 - Powder - 15g - T-2 264

Creamy - Powder - 15g - T-2 265

T blue 2 - Powder - 15g - T-2 268

Aureola - Powder - 15g - T-2 271

Sun Bright - Powder - 15g - T-2 275

Occlusal - Powder - 15g - C-2C 203

Dentine Modifier - Powder - 15g - DM-2A/DM-2B/DM-2C/DM-2D/DM-2E/DM-2F/DM-2G/DM-2H

Semi-Transparent Effect - Powder - 15g - EE-2A/EE-2B/EE-2C/EE-2D/EE-2E/EE-2F/EE-2G/EE-2H

Cervical Effect - Powder - 15g - CE-2A/CE-2B/CE-2C

Opal Translucent - Powder - 15g - OT-2A/OT-2B/OT-2C/OT-2D/OT-2E

Pearl Translucent - Powder - 15g - PL-2A/PL-2B/PL-2C

Luminary - Powder - 15g - LM-2A/LM-2B/LM-2C/LM-2D/LM-2E/LM-2F/LM-2G/LM-2H

Mamelon - Powder - 15g - MM-2A/MM-2B

Window - Powder - 15g - WIN-2

Corrective - Powder - 15g - COR-2A/COR-2B/COR-2C/COR-2D

Firing Parameters

Heat Treatment - Initial Temp.(°C) 500 / Drying Temp.(min) 2 / Heating Time(min) 2 / Heating Rate (°C/min) 50 / Firing Temp.(°C) 960 / Holding Time(min) 1 / Cooling Time(min) 4 / Cooling Temp.(°C) 550 / Vacuum Start(°C) 550 / Vacuum End(°C) 960

Body - Initial Temp.(°C) 500 / Drying Temp.(min) 3 / Heating Time(min) 3 / Heating Rate (°C/min) 50 / Firing Temp.(°C) 920 / Holding Time(min) 1 / Cooling Time(min) 4 / Cooling Temp.(°C) 550 / Vacuum Start(°C) 550 / Vacuum End(°C) 940

Add On - Initial Temp.(°C) 500 / Drying Temp.(min) 2 / Heating Time(min) 2 / Heating Rate (°C/min) 50 / Firing Temp.(°C) 910 / Holding Time(min) 1 / Cooling Time(min) 4 / Cooling Temp.(°C) 550 / Vacuum Start(°C) 550 / Vacuum End(°C) 930

Glaze & Stain - Initial Temp.(°C) 500 / Drying Temp.(min) 2 / Heating Time(min) 2 / Heating Rate (°C/min) 50 / Firing Temp.(°C) 890 / Holding Time(min) 1 / Cooling Time(min) 4 / Cooling Temp.(°C) 550

Note: (1). Body including Dentine, Enamel, Transparent, Effect, Gingiva. (2). Our recommendation for firing temperature is based on numerous test. This firing parameters may be adjusted according to the peculiarities of different furnaces. It is essential to test firing before production. (3). Please refer to "Instruction for Use" for details.
