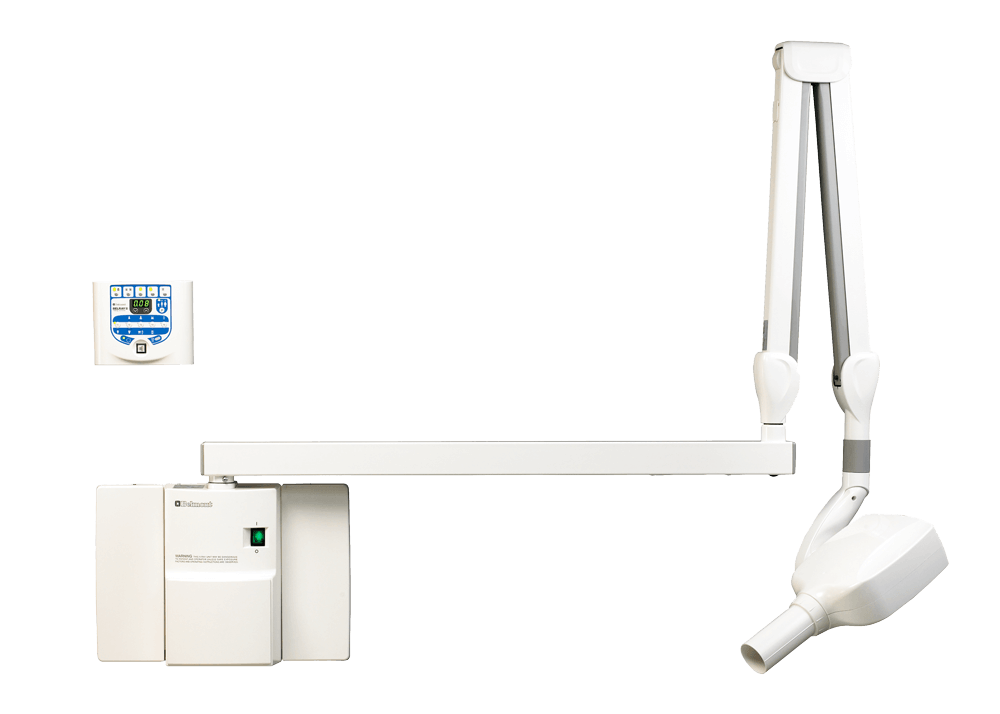

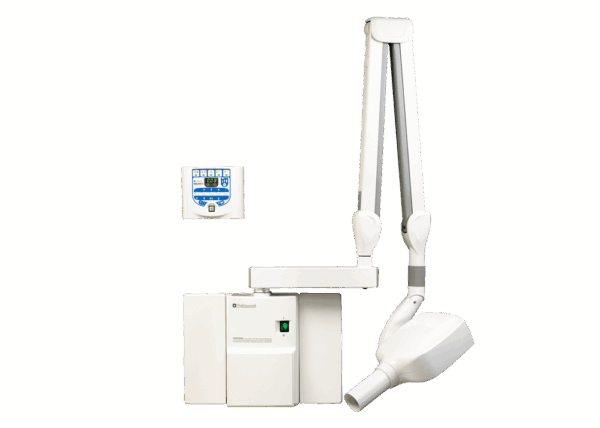

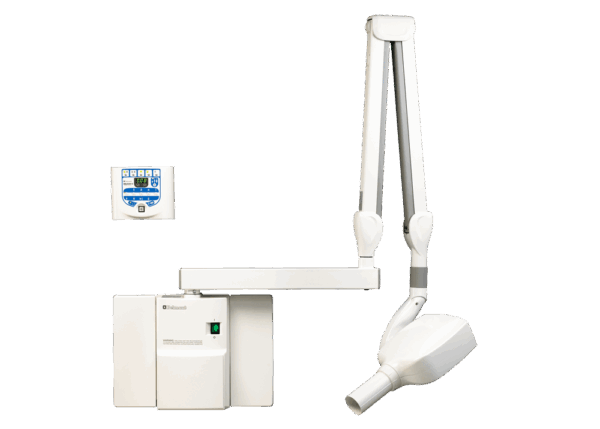

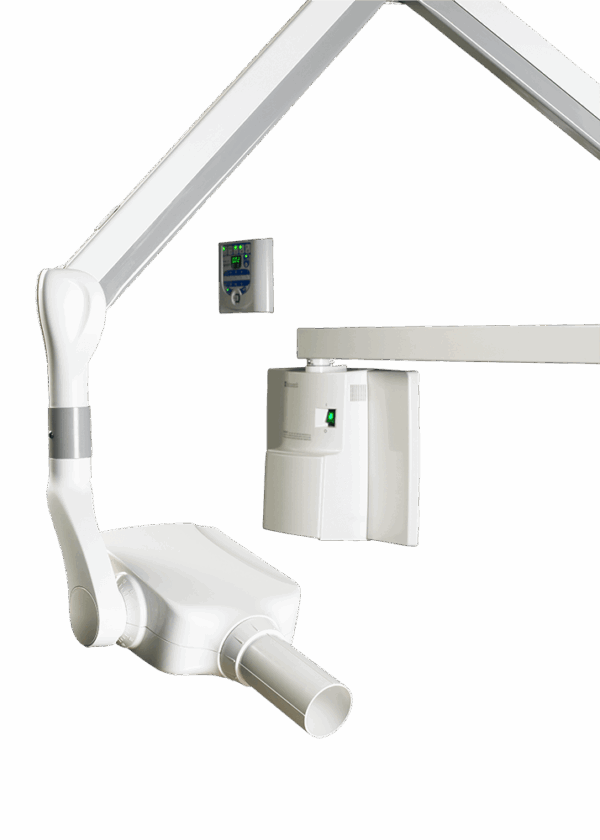

Bel-Ray II Intraoral Imaging System
Belmont · #097WK · source
The Bel-Ray is built for dental practices that prioritize reliability and simplicity. From routine exams to standard diagnostics, it delivers consistent imaging with straightforward controls. Its durable, compact design ensures smooth operation and integration into any operatory layout.
Informations produit
| Fabricant | Belmont |
|---|---|
| Couleur | Bleu |
| Modèle | 097WK |
| Poids | 0.8 lbs |
| Options | 12" Long Cone, Coiled Wire Remote Switch, Pass-Thru Mounting Plate |
| Tension | 120 VAC |
| Garantie | 5-Year |
| Dimensions | 6 × 5 × 1 in |
| Duty Cycle | 1:50 |
| Focal Spot | 0.7 mm (IEC60336) |
| Cone Length | 8" Source to Skin Distance (SSD) |
| Exposure Time | 0.02-3.2 s |
| Generator Type | AC |

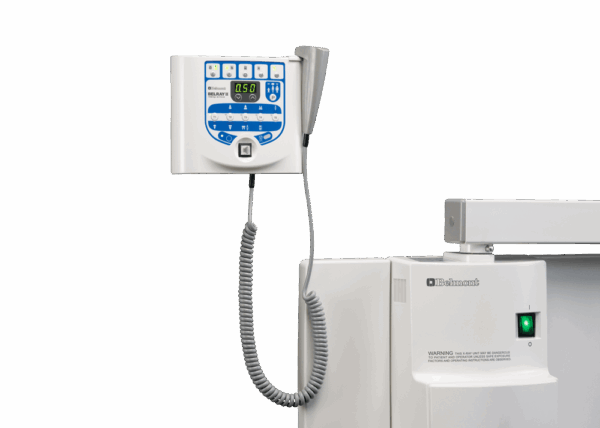

| User Interface | Membrane Switch Sub-controller with LED Display |
| Wall Mounting Plate | 16" Center Stud Mounting |
| Selectable Tube Current (ma) | 4 mA, 7 mA |
| Selectable Tube Voltage (kv) | 70 kV |
| Applicable Regulations Compliance | ETL, FDA |
| Minimum Filtration In Useful Beam | 2.2 mm AI Equivalent at 70 kV |
| Maximum Reach With Arm Length Selection | 81-5/8" with 40" Length Arm; 73-1/8" with 31-1/2" Length Arm; 61-5/8" with 20" Length Arm; 53-5/8" with 12" Length Arm |
