CAMLOG Implant System

CAMLOG Implant System: the Tube-in-Tube Connection

The very core of the CAMLOG Implant System is the Tube-in-Tube Implant-abutment connection. Its precision and the special geometric groove and cam principle ensures virtually perfect force and torque distribution. The CAMLOG Implant System is designed for prosthetic simplicity - convincing both surgeons and prosthodontists. Both the CAMLOG SCREW-LINE and the CAMLOG PROGRESSIVE-LINE Implants use the proven Tube-in-Tube Implant-abutment connection.

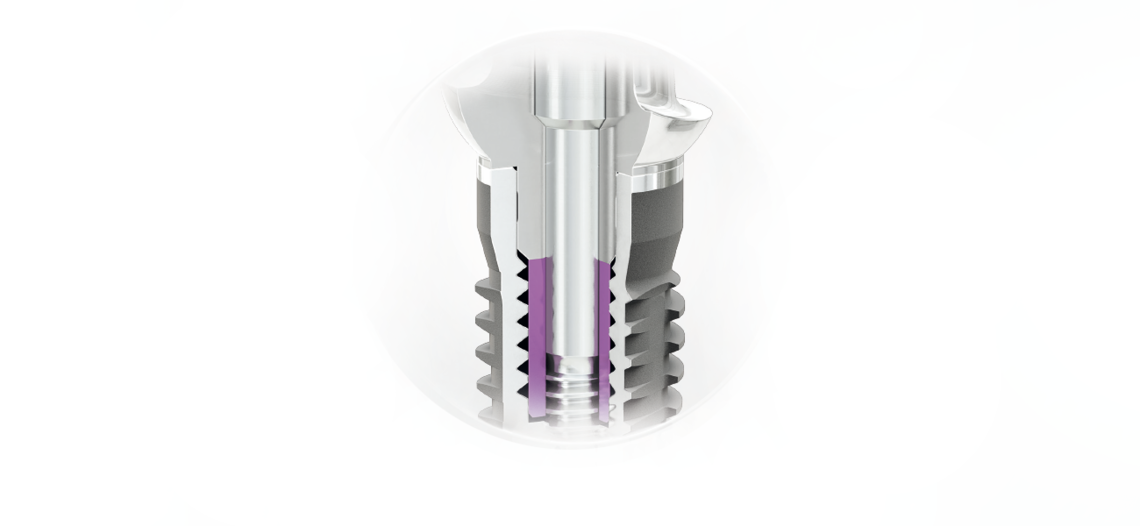

Tube-in-Tube Connection Principle

The unmistakable Tube-in-Tube principle with the three interlocking grooves and cams creates a very precise, stable, and antirotational implant-abutment connection. This was designed biomechanically on the basis of complex finite element analyses. It has proven itself millions of times over for many years and its long-term success has been scientifically documented.

• Easy indexing thanks to three possible positions of the abutments
• Precise with excellent tactile feedback
• Platform Matching and optional Platform Switching
• Defined vertical stop: no height offset over the entire workflow
• Reduced diameter implant (3.3 mm)
• Scientifically documented long-term results

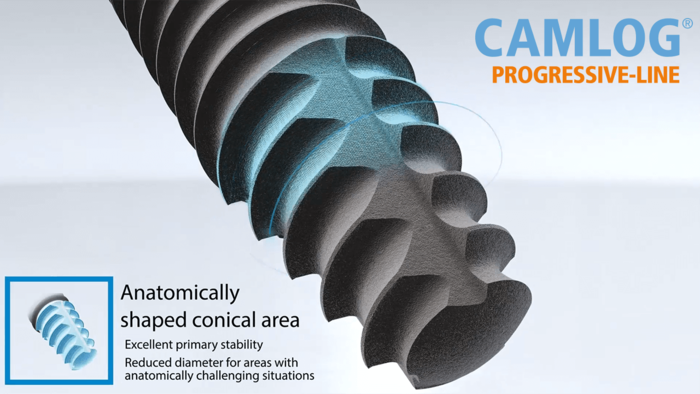

CAMLOG PROGRESSIVE-LINE Implants

The CAMLOG PROGRESSIVE-LINE Implants make it easier to implement modern treatment concepts such as immediate restorations or immediate loading. The apical conical macro design of the CAMLOG PROGRESSIVE-LINE Implant, with extended flank height and many other features, facilitates achieving high primary stability – regardless of bone quality.

The crestal thread provides additional support in case of limited bone height while the thread running to the apex is ideal for immediate placement. CAMLOG PROGRESSIVE-LINE thus extends your therapeutic treatment options in soft bone and extraction sockets.

• High-precision CAMLOG Tube-in-Tube connection
• Apical-conical screw implant for confidence in all bone qualities
• High primary stability due to flexible drilling protocols for different bone qualities
• Crestal thread for additional hold with limited bone height
• Thread down to the apex – ideal for immediate placement

The CAMLOG PROGRESSIVE-LINE Implant is synonymous with prosthetic simplicity thanks to its Tube-in-Tube connection. Implant positioning is performed slightly supracrestal or epicrestal. CAMLOG PROGRESSIVE-LINE Implants are available with the Promote plus surface and a machined neck of 0.4 mm.

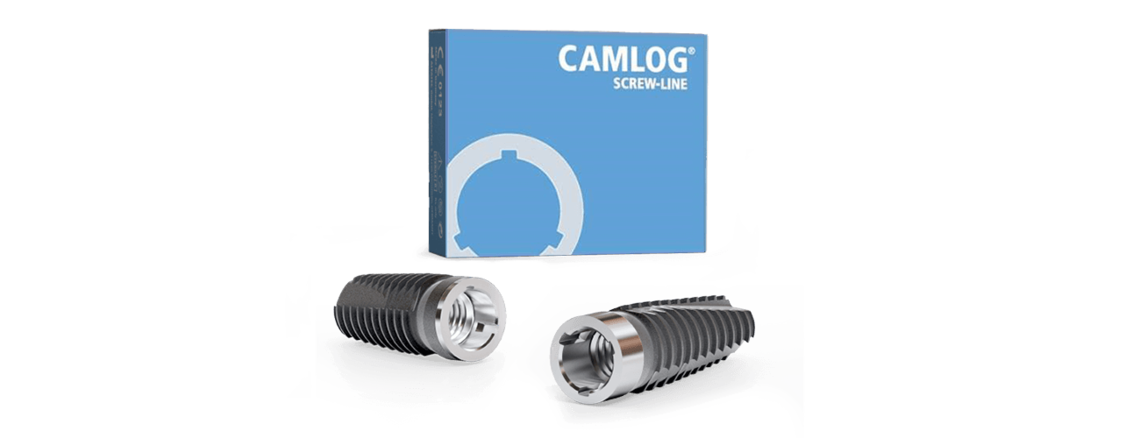

CAMLOG SCREW-LINE Implants

CAMLOG SCREW-LINE Implants are slightly conical, self-tapping screw implants. They enable easy insertion by self-centering with continuous bone contact, thus achieving solid primary stability. Rounding of the apical geometry enables gentle insertion of the CAMLOG SCREW-LINE Implants into the bone.

• High-precision CAMLOG Tube-in-Tube connection
• Slightly conical screw implant for all indications
• Solid primary stability
• Self-centering with continuous bone contact
• Gentle insertion due to apical rounding

CAMLOG SCREW-LINE Implants are available with both the Promote surface (1.4 mm machined implant neck) and the Promote plus surface (0.4 mm machined implant neck).
