Chairside Fast Zirconia Sintering Furnace

Specially designed for dentists to create fast sintering next to chairs

Exquisite and not simple, 60 minutes full process rapid sintering

High speed, high quality, and high quantity – make sintering more than just fast

The chair side rapid sintering furnace is a high-performance sintering furnace specially designed for dentists. It is compact and exquisite in design, more suitable for use in small environments, and solves the problem of dental clinics not being able to sinter on site; It is more powerful in terms of functionality and performance, with a fast sintering process that only takes 1 hour and can sinter up to 60 units, solving the pain of patients waiting for a long time

Breaking through efficiency bottlenecks

1-hour rapid sintering

The entire process of heating, insulation, and cooling only takes 1 hour, rapidly improving sintering efficiency and allowing urgent patients to not wait

60 sintering units

Rapid sintering also meets the demand for sintering output, with a maximum of 60 units sintered simultaneously, resulting in a double increase in production efficiency and cost reduction while increasing efficiency

Ensure sintering quality

± 1 ℃ temperature error

PID intelligent temperature control system improves sintering quality and reduces consumables consumption

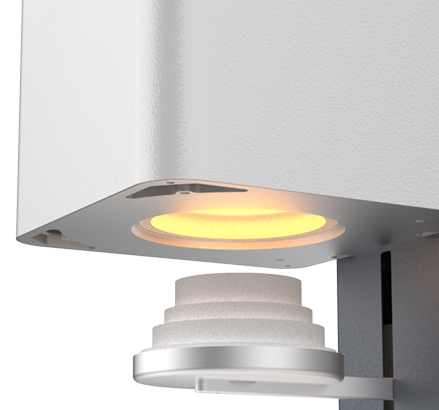

High performance composite heating element

Uniform heating process, high sintering quality, and prevention of defective products

Imported insulation materials

Energy saving, uniform insulation effect, improved sintering quality, and reduced damage rate

Convenient operating system

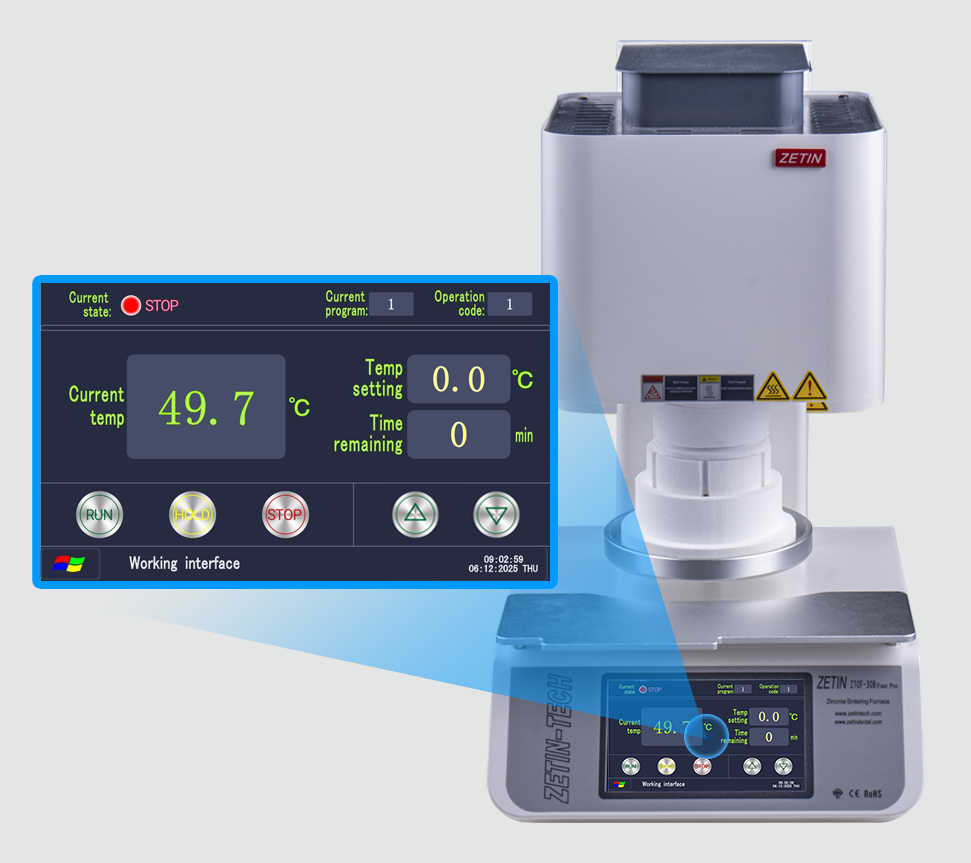

7-inch high-definition color touch screen

Data visualization interface design, scientifically reasonable button layout, simple and easy operation, reducing job training and improving work efficiency

40 preset programs

Record and save customized data with one click operation to avoid duplicate settings or data loss, which may delay work progress

Power off memory

In response to sudden power outages, the program automatically responds and can continue executing program data after restarting to complete unfinished tasks

Technical parameters

Max. Temperature: 1750℃

Power: 2KW

Voltage: 220V 50/60HZ

Chamber Size: ∅110mm×120mm

Size: 340×617×428mm (L×W×H)

Net Weight: 31KG

Features

• Specially designed for doctors
• Breaking through efficiency bottlenecks
• Ensure sintering quality
• Large touch screen with parameterized design interface and panoramic display of all parameters

Warranty and Support

Warranty Policy

The entire machine is covered by a one-year warranty. Lifetime maintenance service is provided, with only parts charged after the warranty period expires.

Emergency response mechanism

The after-sales hotline provides global coverage with multi-channel support including video calls and WeChat customer service. Repair requests will be responded to within 1 hour, with remote solutions provided within 4 hours; authorized distributors in select countries (e.g., Russia, Dubai, India, Brazil, Vietnam) offer local on-site services.

Technical Support

Free operational training (including on-site/off-site modes) and process database updates are provided. Authorized distributors in select countries (e.g., Russia, Dubai, India, Brazil, Vietnam) offer local technical support services.

Spare Part Service

Lifetime provision of original factory accessories (such as high-purity alumina furnace, silicon molybdenum rod, etc.). Support non-standard customization services to match special sintering process requirements.
