Dental Milling Machine TP5 Wet Milling
Baot Biological Technology Co.,Ltd. · #TP5 · source

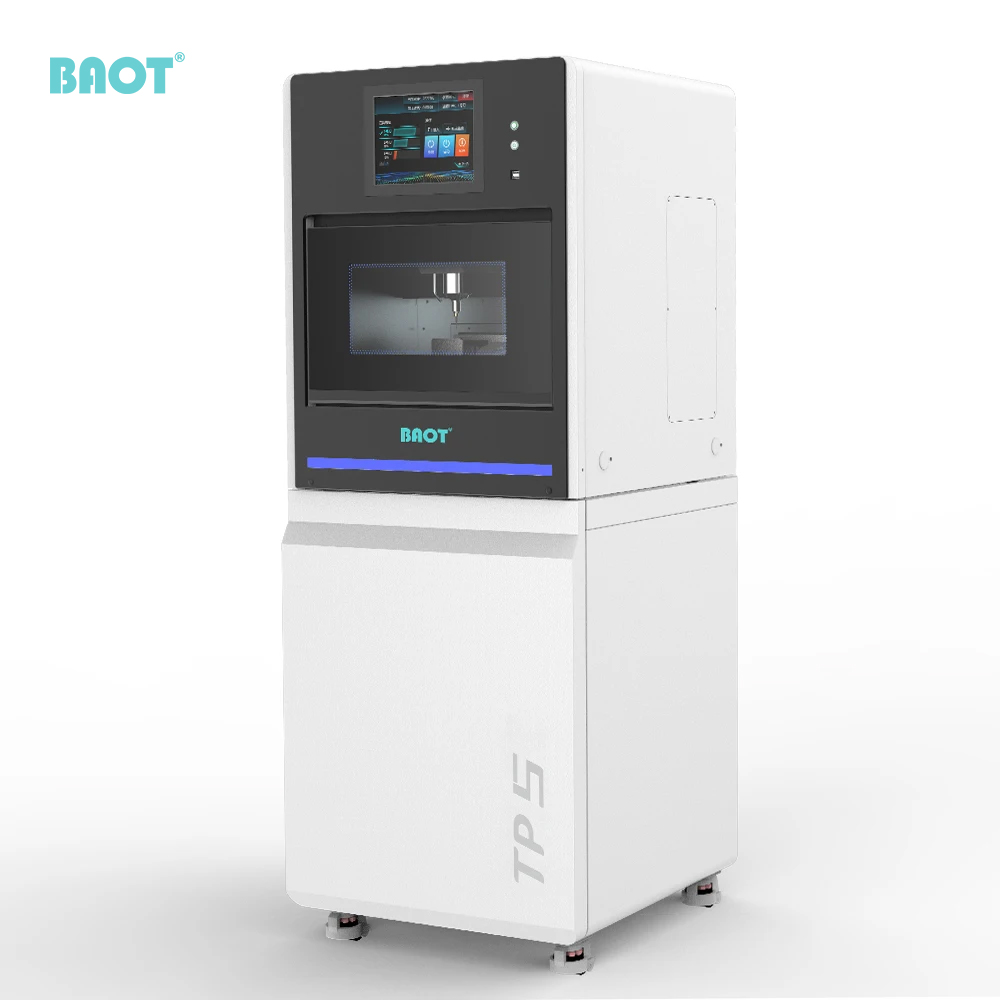

BAOT TP5 Dental Milling Machine for Wet Milling
Introducing the TP5 Milling Machine—a powerhouse of precision and efficiency.
With a 5-axis linkage, it excels in extensive bridge processing, ensuring versatility in machining angles. The integrated computer and touch screen provide a user-friendly experience, while the high-precision lead screw guide rail guarantees accurate milling. Its robust, one-piece cast aluminum structure ensures stable and lasting operation. Equipped with a high-performance spindle featuring automatic tool change, TP5 boasts intelligent features like power failure memory for uninterrupted milling. The machine's design includes an integrated cooling system for optimal performance.
Backed by timely after-sales service and online remote maintenance support, the TP5 Milling Machine is your go-to solution for reliable and precise milling operations.
Advantages of BAOT TP5 Milling Machine:

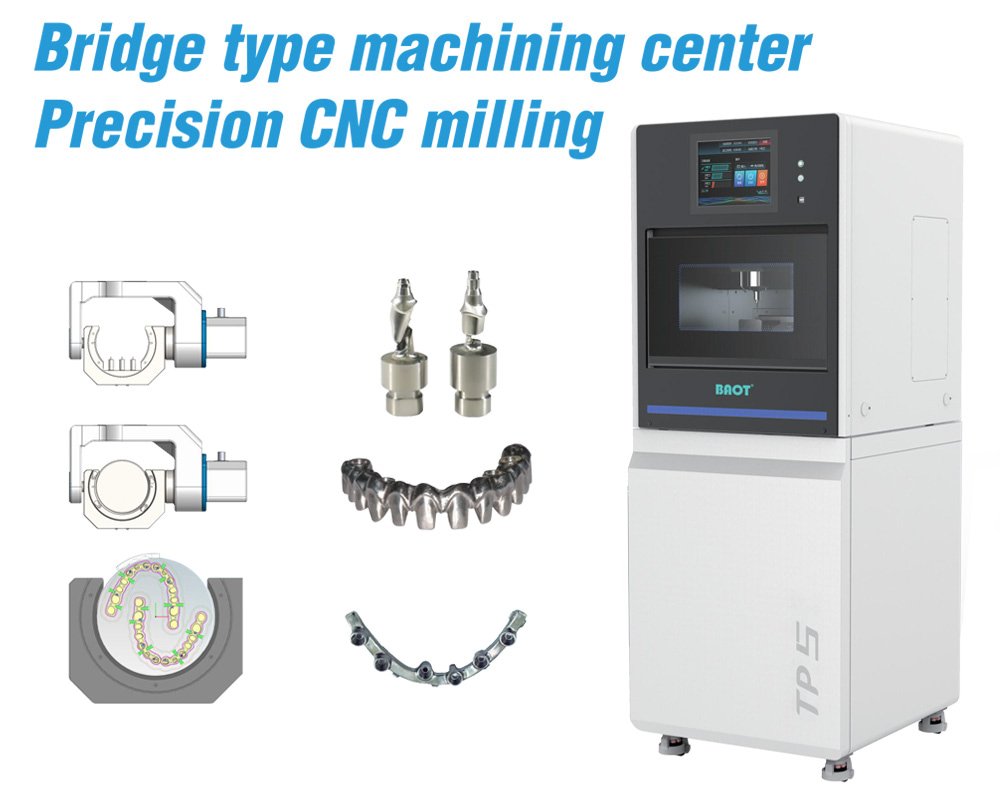

- Versatile Bridge Processing: Enables extensive bridge processing with 5-axis linkage.
- User-Friendly Interface: User-friendly interface: integrated computer and touchscreen.
- High-Precision Milling: High-precision milling with lead screw guide rail.
- Robust Stability: Robust structure for lasting, precise operation.
- Cast Aluminum Design: Stable one-piece cast aluminum design.
- Efficient Cooling: Efficient cooling with integrated tank and circulation pump.
- High-Performance Spindle: High-performance spindle with automatic tool change.
- Status LED Lights: Equipped with status confirmation LED lights.
- Intelligent Memory: Intelligent memory for continuous milling after power failure.
- Timely Support: Timely after-sales and online remote maintenance support.
Specification of TP5 Dental Milling Machine
| Parameter | Value |
|---|---|
| Weight | 249KG |
| Dimension(LxWxH) | 780x630x1670mm |
| Milling Mode | Wet Milling |
| Axis Quantity | 5 |
| Milling Range | X:255mm/ Y:110mm/ Z:120mm, A:360°B:±35° |
| Bur Specification | Quantity: 11, Diameter: 6mm |
| Drive | Full Servo Drive |
| Spindle | Speed: 0~60000rmp, Power: 2.5KW |
| Cooling Method | Water Cooled |
| Power Supply | 220V, 50Hz |
| Power | 4.5KW |
| Air Pressure | 0.45-0.7MPa |
| Processing Materials | Titanium Block, Titanium Column |
| Average Milling Time | Bar Module: 2-4h, Toronto Bridge: 4-5h, Metal Inner Crown: 15-30mins, Abutment: 15-20mins |
TP5 is an efficient fully automatic 5-axis milling machine with a speed up to 60000rpm.
Informations produit
| Fabricant | Baot Biological Technology Co.,Ltd. |
|---|---|
| Drive | Full Servo Drive |
| Puissance | 4.5KW |
| Poids | 249KG |
| Lead Time | 3~5 days for sample, 10~15 days for mass order |
| Air Pressure | 0.45-0.7MPa |
| Milling Mode | Wet Milling |
| Alimentation | 220V, 50Hz |
| Axis Quantity | 5 |
| Milling Range | X: 255mm/ Y: 110mm/ Z: 120mm, A: 360°, B: ±35° |
| Spindle Power | 2.5KW |
| Spindle Speed | 0~60000rmp |
| Cooling Method | Water Cooled |
| Product Origin | Guangdong, China |
| Bur Specification | Quantity: 11, Diameter: 6mm |
| Dimension (lxwxh) | 780x630x1670mm |
| Processing Materials | Titanium Block, Titanium Column |
| Average Milling Time Abutment | 15-20mins |
| Average Milling Time Bar Module | 2-4h |
| Average Milling Time Toronto Bridge | 4-5h |
| Average Milling Time Metal Inner Crown | 15-30mins |
