I2 Screw type implant

Technical details & Features

• Gentle, double and dense threads (0.6 mm) that are better for working in dense bone (Type 1-2) preventing bone damage while placing the implant. • Groovy neck. • Double platform – deep (hex connection) and flat (non-hex connection). • Equipped with a switch platform for all diameters (excluding narrow platform). • The restoration platform is Standard for all diameters, including Ø4.2 and above. • All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.

Implant Range and Protocol

∅ 3.5

Available Lengths: 8, 10, 11.5, 13, 16 Final Drill Protocol:

• Drill speed (RPM): 500-700
• Drill diameter (mm): 2.8

∅ 3.75

Available Lengths: 8, 10, 11.5, 13, 16 Final Drill Protocol:

• Drill speed (RPM): 400-700
• Drill diameter (mm): 3.2

∅ 4.2

Available Lengths: 8, 10, 11.5, 13, 16 Final Drill Protocol:

• Drill speed (RPM): 400-600
• Drill diameter (mm): 3.65

∅ 5

Available Lengths: 8, 10, 11.5, 13, 16 Final Drill Protocol:

• Drill speed (RPM): 300-500
• Drill diameter (mm): 4.5

∅ 6

Available Lengths: 8, 10, 11.5 Final Drill Protocol:

• Drill speed (RPM): 200-400
• Drill diameter (mm): 5.5

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

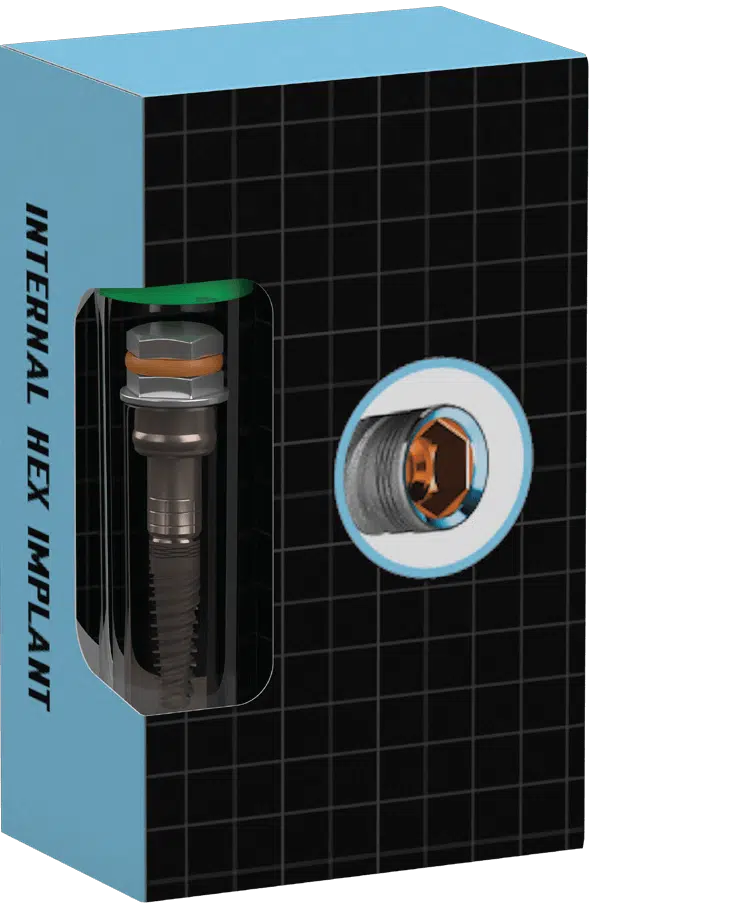

Package Content

Components, inside tube, outside tube, and package included as shown in product images.
