Novo Pro 18L

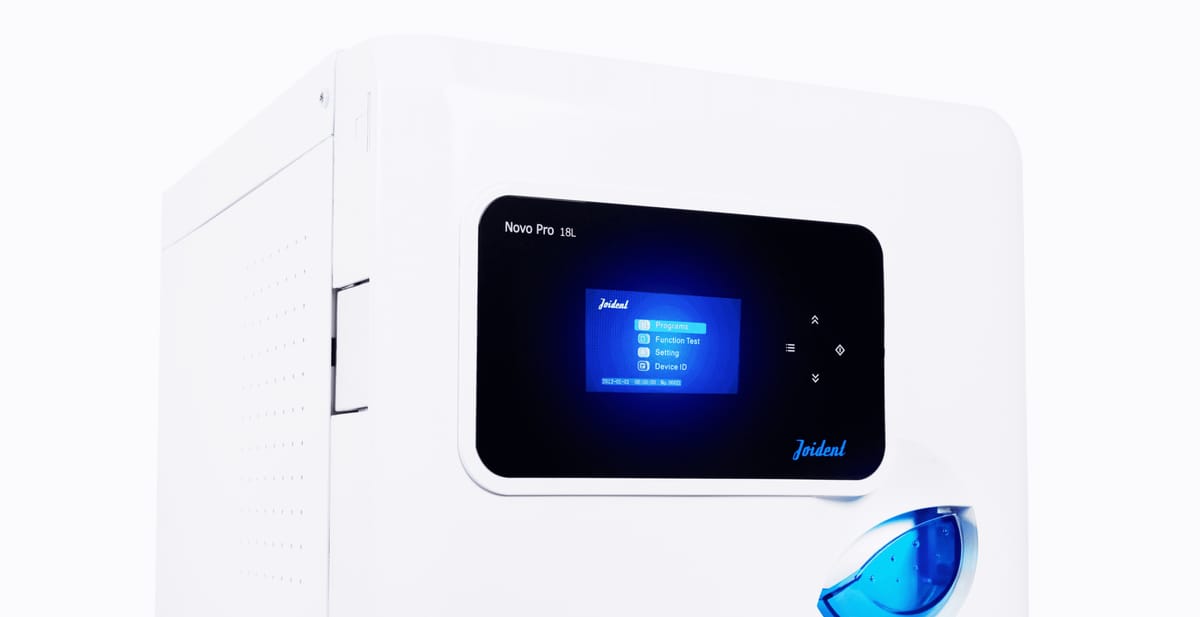

Novo Pro 18L - Class B Dental Sterilizer

Product Overview

Combining the experience of modern art and minimalist shape design, Novo Pro 18L is a dental sterilizer designed with seamless integration from inside to outside. The design is compact and suitable for any location, allowing users to experience the charm of modern art while maintaining high efficiency.

Key Features

Intelligent Monitoring and Diagnosis System

Ensures constant control and monitoring of the whole operating system of the sterilizer. When faults occur, it will find the failure parts sectionally, and shows the fault message and simple solution directly, which makes the after-sales message more detailed and the maintenance more convenient. This device behaves like a "real technician" with real-time diagnostic and intervention capability.

Simplified Traceability

The data of every sterilization cycle are traceable, in compliance with the applicable standards in force, thanks to the SD card Log or thermal printer (Built-in/External).

Pre-heating System

Preheating system with stand-by for minimum temperature maintenance and consequent time reduction of all the sterilization cycles.

Wind Cooling Super Window

260x142mm large cooling area, 73 layers heat radiating aluminium sheet, 18 radiating pipe, to ensure the hot steam water changes to the cold water in a few seconds.

Operation

• Only three clicks, automatically complete sterilization cycle
• Multi-language operating system
• Intelligent diagnosis system
• 11 Programs and tests
• Accurate touch interface with Simplicity, Innovation, Practically

Completely Automatic Cycles

All Programs are completely automatic and all phases are managed by advanced card equipped with a powerful microprocessor. Each phase (vacuum, preheating, exposure time, drying) is monitored, backed up and managed automatically. There is no human intervention in cycle operation.

Pre-set Sterilization Programs

Solid Load (134°C, S Cycle)

• Sterilization time: 10 min
• Drying time: 9 min

Quick (134°C, S Cycle) - Emergency Sterilization Only

• Sterilization time: 4 min
• Drying time: 4 min
• Note: Only for emergency sterilization of solid equipment (fabric not)

Hollow Bodies (134°C, B Cycle) - Solid and Hollow Load, Cotton Fabric

• Sterilization time: 5 min
• Drying time: 18 min

Multiple Wrapping (134°C, B Cycle) - Cotton Fabric, Wrapping Equipment, Hollow Load

• Sterilization time: 18 min
• Drying time: 18 min

Solid Load (121°C, S Cycle) - Solid Instruments

• Sterilization time: 30 min
• Drying time: 9 min

Glass (121°C, S Cycle) - Glass Instruments

• Sterilization time: 20 min
• Drying time: 9 min

Hollow Bodies (121°C, B Cycle) - Low Temperature Textile, Wrapping Equipment, Mixed Loading

• Sterilization time: 20 min
• Drying time: 18 min

Tampon (121°C, B Cycle) - Prion

• Sterilization time: 30 min
• Drying time: 18 min

Water Management

Water Tank

Water tank group completely accessible and inspectionable for perfect and complete cleaning as per the maintenance program and safeguard of the device.

Transparent Open Water Tank - 3.5 Liters

Water filling function. Manual (Standard)/Automatic (Option) sterilizers, to facilitate filling operation, are equipped with a pump-operated filling system featuring a level sensor that stops water filling if the tank is full.

Built-in Water Quality Detection (Option)

Thanks to the built-in quality detector, it can provide better water source for the sterilizer and extend the use time of the sterilizer.

Average Water Consumption

Novo Pro 18L: 0.15L (Min) - 0.26L (Max)

Tank Volume

Clean water tank: 3.5L Sewage tank: 1.7L

Door System

Newly designed door is easy to open and close with one hand. Safety locker with double safety locking mechanism. Cycle will not start if the door is open or not properly locked. Safety locking device prevents door from opening until chamber pressure reaches atmospheric pressure.

• Mechanical Lock
• Sensor Switch
• Pressure lock to prevent the door from opening while the cycle is running

Carrier & Tray System

Steel Wire Carrier

• 18L: 310 x 205 x 200 mm

Steel Wire Tray

• 18L: 285 x 190 x 20 mm

Instruments Management Assistant (Option)

• For items such as mirrors, probes, etc.
• 180 x 125 x 20 mm

Chamber Dimensions

• Sterilizer chamber (Total volume): 245 mm x D355 mm (Novo Pro 18L)
• Usable chamber volume: 198 mm x 204 mm x 319 mm (Novo Pro 18L)

Technical Specifications

Electrical Specifications

• Electrical supply: 220-240 VAC-50/60Hz, single-phase
• Nominal voltage: 220V, 50Hz
• Max current: 10A

Environmental Requirements

• Max. altitude: 2000 m asl (More than 2000m call service)
• Min atmospheric pressure: 0.7 bar

Pressure Specifications

• Max Working Pressure: 2.5 Bar (250 kPa)
• Min Working Pressure: -0.9 Bar (-90 kpa)
• Max Temperature: <145°C
• Pressure safety valve: 2.45 bar (符合YY0154-2013和YY/T0157-2013)
• Vacuum: >-0.08Mpa

Physical Specifications

• Overall dimensions: 585 x 438 x 405 mm (Novo Pro 18L)
• Max weight (fully loaded): 50 kg (Novo Pro 18L)

Performance Specifications

• Sound power levels: < 80 DB

Filtration

• Bacteriological filter: The filtration efficiency of particles above 0.3um be no less than 99.5%

Water Quality

• EC (conductivity): <15uS/cm

Compliance

• Medical Device Directive (MDD)
• YY/T0646-2015

Warranty

2000 cycles or 2 years warranty
