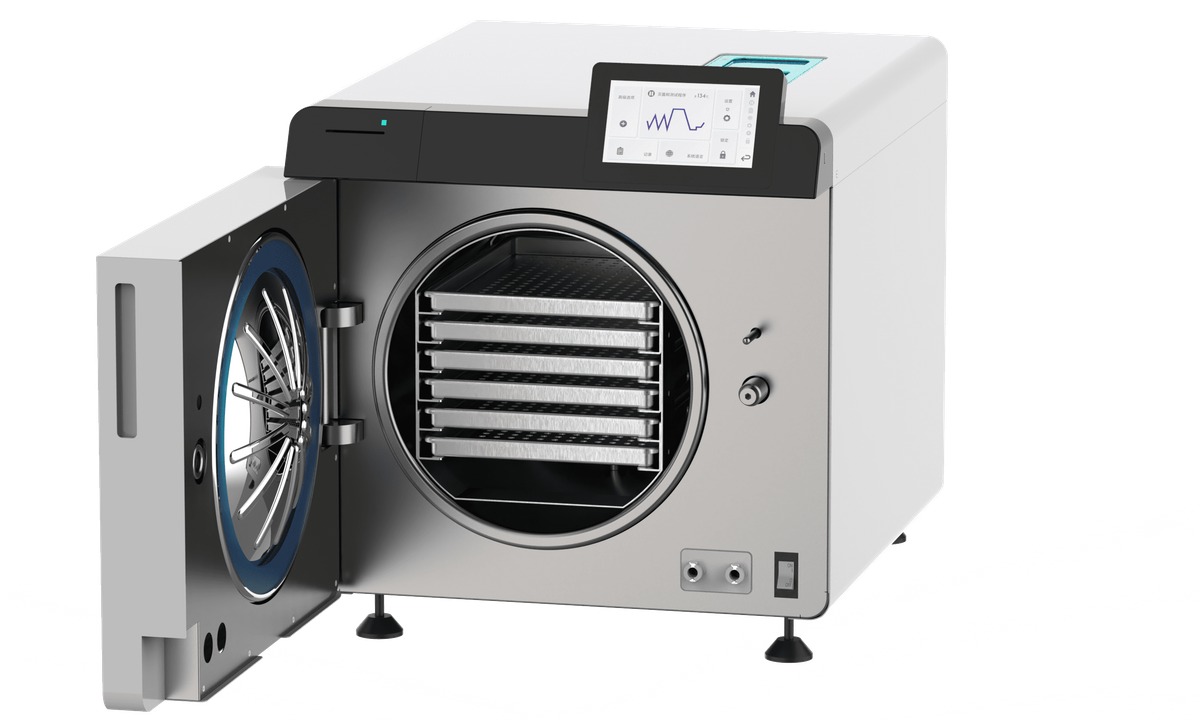

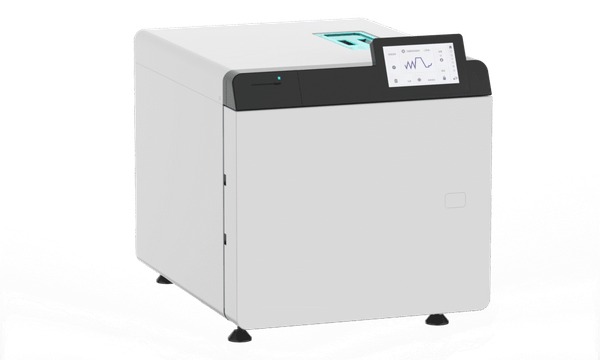

Novo Pro 29L Plus

Modeling

Combining the experience of modern art and minimalist shape design, it is seamless from inside to outside. Our design size can be used for any occasion, so that you can experience the charm of modern art.

Designed to make your life easier, save space and guarantee high efficiency

Intelligent monitoring and diagnosis system

Ensures a constant control and monitoring of the whole operating system of the sterilizer. When faults occur, it will find the failure parts sectionally, and shows the fault message and simple solution direct which makes the after-sales message is more detailed and the maintenance is more convenient. This device behaves like a "real technician" with real-time diagnostic and intervention capability.

Simplified traceability

The data of every sterilization cycle are traceable, in compliance with the applicable standards in force, thanks to the SD card Log or thermal printer (Built-in/External).

Pre-heating system

Preheating system with stand-by for minimum temperature maintenance and consequent time reduction of all the sterilization cycles.

Wind cooling super window

260x142mm large cooling area, 73 layers heat radiating aluminium sheet, 18 radiating pipe, to ensure the hot steam water changes to the cold water in a few seconds.

About Novo Pro

Sterilizers and accessories that help dentists and their assistants to always ensure the highest levels of safety and hygiene in their practice, in full compliance with applicable international regulations. Assures to sterilise unwrapped solid tools and porous products, small pourous items, pots and containers, single-wrapped or multiple-layer wrapped products.

Only three clicks, automatically complete sterilization cycle

Multi-language operating system

Intelligent diagnosis system

11 Programs and tests

Accurate touch interface Simplicity Innovation Practically

Completely Automatic Cycles

All Programs are completely automatic and all phases are managed by advanced card equipped with a powerful microprocessor. Each phase (vacuum, preheating, exposure time, drying) is monitored, backed up and managed automatically. There is no human intervention in cycle operation.

Solid load

Temperature (°C)：134℃ Cycle type：S Sterilization time：10min Drying time：9min

Quick

Only for emergency sterilization of solid equipment (fabric not)

Temperature (°C)：134℃ Cycle type：S Sterilization time：4min Drying time：4min

Hollow bodies

Solid and hollow load, cotton fabric

Temperature (°C)：134℃ Cycle type：B Sterilization time：5min Drying time：18min

Multiple wrapping

Cotton fabric, wrapping equipment, hollow load

Temperature (°C)：134℃ Cycle type：B Sterilization time：18min Drying time：18min

Pre-set programs

Programs are factory pre-set and all of them guarantee a perfect and safe sterilization of treated materials.

Solid load

Solid instruments

Temperature (°C)：121℃ Cycle type：S Sterilization time：30min Drying time：9min

Glass

Glass instruments

Temperature (°C)：121℃ Cycle type：S Sterilization time：20min Drying time：9min

Hollow bodies

Low temperature textile, wrapping equipment, mixed loading (packaging/ non packaging)

Temperature (°C)：121℃ Cycle type：B Sterilization time：20min Drying time：18min

Tampon

Prion

Temperature (°C)：121℃ Cycle type：B Sterilization time：30min Drying time：18min

Water Tank

Water tank group completely accessible and inspectionable for a perfect and complete cleaning as per the maintenance program and safeguard of the device.

3.5Liters Transparent open water quality monitoring

Water filling function Manual (Standard)/Automatic (Option) sterilizers, to facilitate filling operation, are equipped with a pump-operated filling system featuring a level sensor that stops water filling if the tank is full.

Built-in water quality detection (Option)

Thanks to the built-in quality detector, it can provide better water source for the sterilizer and extend the use time of the sterilizer.

Average water consumption:

Novo Pro18L: 0.15L(Min)0.26L(Max) Novo Pro 23L:0.17L(Min)0.31L(Max)

The Door

Newly designed door is easy to open and close with one hand. Safety locker with double safety locking mechanism. Cycle will not start if the door is open or not properly locked. Safety locking device prevents door from opening until chamber pressure reaches atmospheric pressure.

Mechanical Lock

Sensor Switch

Pressure lock

Pressure lock to prevent the door from opening while the cycle is running.

Carrier & Tray

The carrier can be loaded with up to 5 trays or 3 trays, rotated by 90°.

Steel wire carrier

Steel wire tray

Aluminium bracket tray

F.g.: mirror, probe, etc.

Instruments management assistant (Option)

F.g.: mirrors, probes etc. 180 X125 X20mm

Technical Specifications

Electrical supply

220-240 VAC-50/60Hz, single-phase

Nominal voltage

220V, 50Hz

Max current

10A

Max. altitude

2000 asl, More than 2000m call service

Max Working Pressure

2.5 Bar(250 kPa)

Min Working Pressure

-0.9 Bar(-90 kpa)

Min atmospheric pressure

0.7bar

Max Temperature

<145°C

Overall dimensions

585x438x405mm(Novo Pro18L) 685x438x405mm(Novo Pro 23L)

Max weight (fully loaded)

50 kg(Novo Pro 18L) 60kg(Novo Pro 23L)

Pressure safety valve

2.45 bar(符合YY0154-2013和YY/T0157-2013)

Vacuum

-0.08Mpa

Sound power levels

< 80 DB

Sterilizer chamber (Total volume)

245 mm x D355 mm(Novo Pro 18L) 245 mm x D445 mm(Novo Pro 23L)

Usable chamber volume

198 mm x 204mm x 319mm(Novo Pro 18L) 198 mm x 204mm x 385mm(Novo Pro 23L)

Bacteriological filter

The filtration efficiency of particles above 0.3um be no less than 99.5%

Water Quality

EC(conductivity<15uS/cm)

Average water consumption

Novo Pro 18L：0.15L(Min) 0.26L(Max) Novo Pro 23L：0.17L(Min) 0.31L(Max)

Tank volume

Clean water tank 3.5L

Conformity

Medical Device Directive (MDD) YY/T0646-2015
