OCH2B30

1/7.5" Color 2-Megapixel (1500 x 1500) CameraCubeChip® with PureCel®Plus-S Technology

Smallest Camera Module for 3D Intraoral Dental Scanners

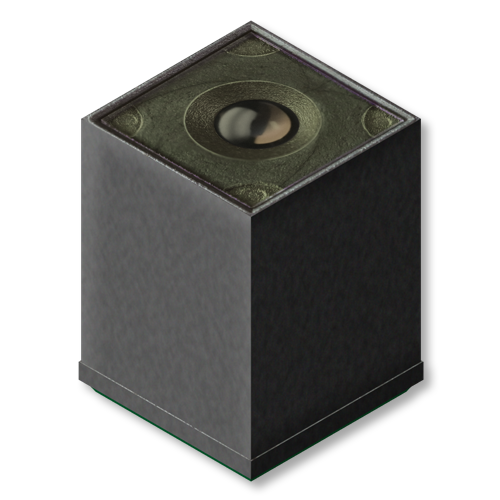

The new OCH2B30 camera module for three-dimensional (3D) intraoral dental scanners features a compact CameraCubeChip® package in an ultra-small form factor (2.6 mm x 2.6 mm), which is especially important when there are multiple cameras in each scanning device. It offers exceedingly high image quality and MIPI interface for cameras in benchtop, standalone and portable intraoral scanners.

The OCH2B30 camera module has a 2-megapixel (MP) resolution square-format CMOS image sensor with a 1.12-micron (µm) pixel built on OMNIVISION's latest PureCel®Plus-S stacked-die technology, which enables its ultra-small size. At 1500 x 1500 resolution, the OCH2B30 achieves 60 frames per second (fps), and at 720p resolution, 120 fps.

The OCH2B30 is tested for EMC/EMI compliance and sterilization, and it is biocompatible and waterproof. Because it passes OMNIVISION's rigorous production testing, it is guaranteed to be within the stated electrical, mechanical and optimal specifications, and hence does not require tuning or calibration.

Features

• Automatic black level calibration (ABLC)
• Programmable controls for:
  • Frame rate
  • Mirror and flip
  • Binning
  • Cropping
  • Windowing
• Support for dynamic DPC
• Supports output formats: 10-bit RGB non-HDR
• Supports horizontal and vertical subsampling
• Standard serial SCCB interface
• Supports typical images sizes:
  • 1500 x 1500
  • 960 x 540
  • 1280 x 720
  • 640 x 480
• 2-lane MIPI TX interface with speeds up to 1.0 Gbps/lane
• HDR support: Stagger HDR 2 exposure timing
• Two on-chip phase lock loops (PLLs)
• Built-in temperature sensor
• Non-autoclavable
