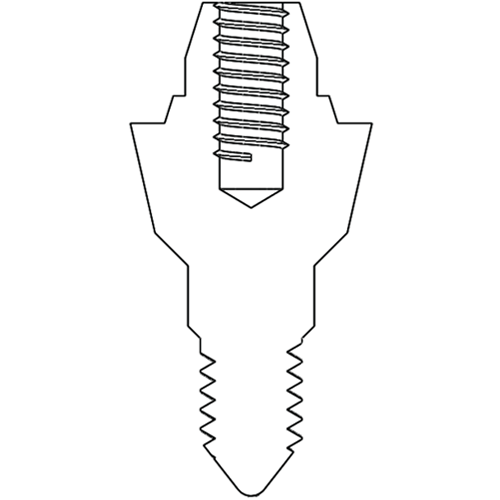

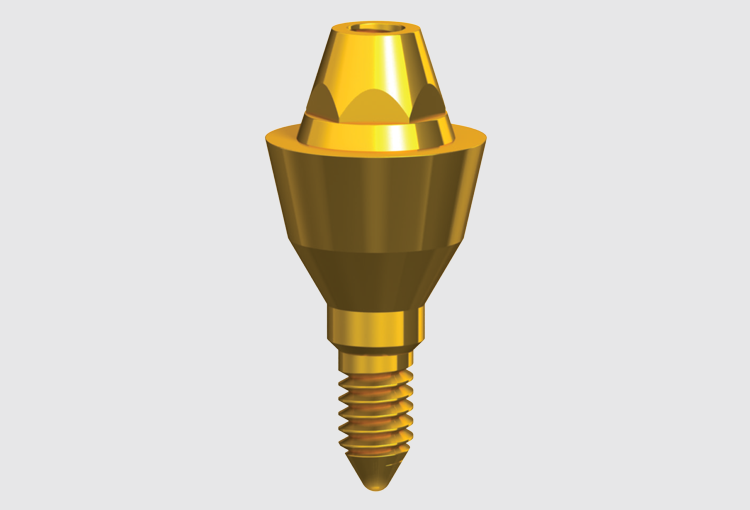

P16-3 Narrow straight adaptor

• A straight adaptor made from titanium, facilitating the installation of an overdenture system on non-parallel implants. • The upper cone solves the lack of parallelism. • The impression-taking is performed over the installed adaptors. • The overdenture system is screwed to the cone. • Available with heights of 1, 2, 3 and 4 mm. • Platform switching by design, allowing a perfect environment for soft-tissue growth and helping prevent bone resorption. • The new product design allows greater space for the gums. • All impression taking + sleeves + healing cap are similar to P14. • Narrow platform-3mm diameter.

Size Specifications

P16-3 STRAIGHT ADAPTOR

• P16-3, 1
• P16-3, 2
• P16-3, 3
• P16-3, 4
• D1 (mm) = 4.5
• LS (mm) = 1, 2, 3, 4

PO-P14 HEALING CAP FOR P14

• PO-P14, 5
• PO-P14, 7
• D1 (mm) = 4.5
• L(mm) = 5, 7

D2-P14 Impression TRANSFER FOR P14

• D2-P14
• D1 (mm) = 4.4
• L (mm) = 11

D1-P14 ANALOG FOR P14

• D1-P14
• D1 (mm) = 4.4
• L (mm) = 12

P14b PLASTIC SLEEVE FOR ANGULAR ADAPTOR

• P14b
• D1 (mm) = 4.4
• L (mm) = 10

P14-BT TITANIUM SLEEVE FOR ANGULAR ADAPTOR

• P14-bT
• D1 (mm) = 4.4
• L (mm) = 12

P14-BR COBALT CHROME FOR ANGULAR ADAPTOR

• P14-bR
• D1 (mm) = 4.4
• L (mm) = 10
