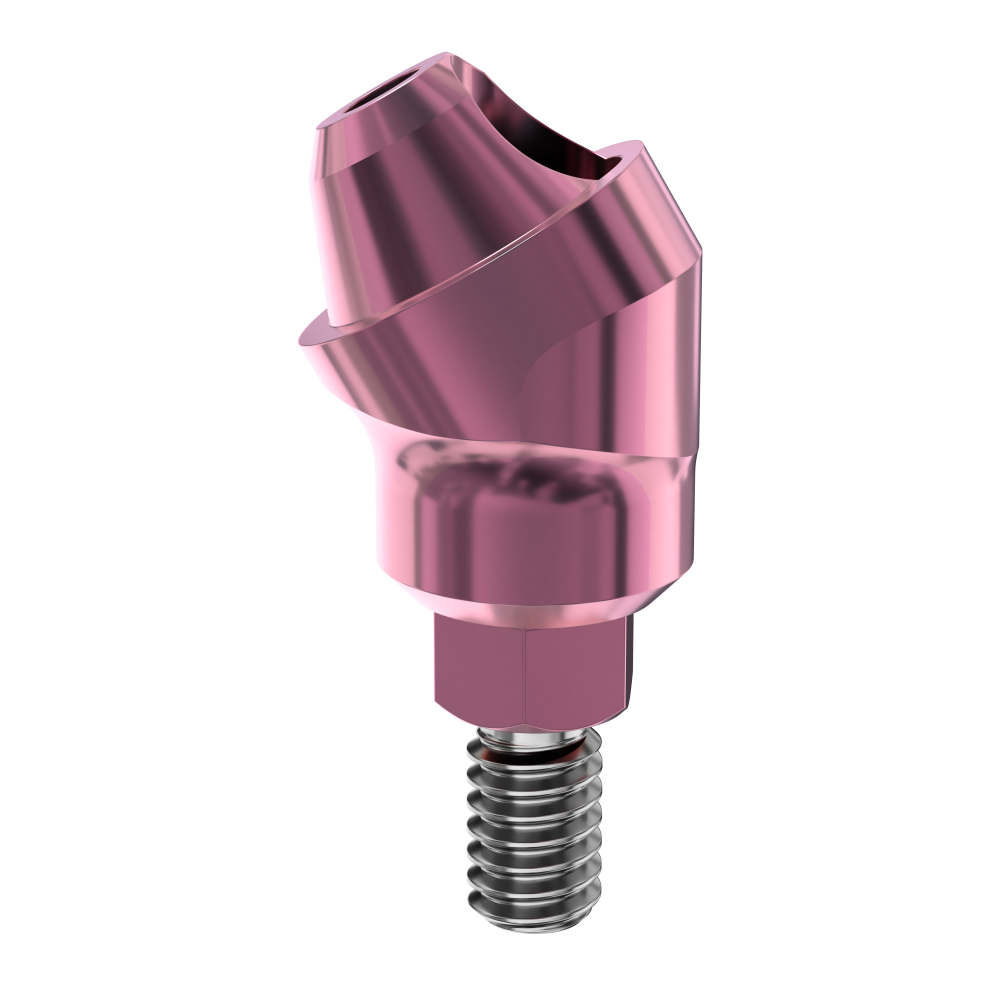

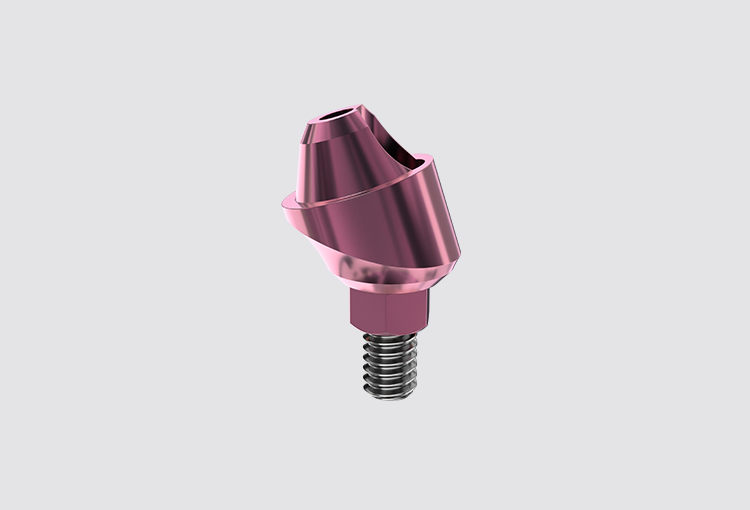

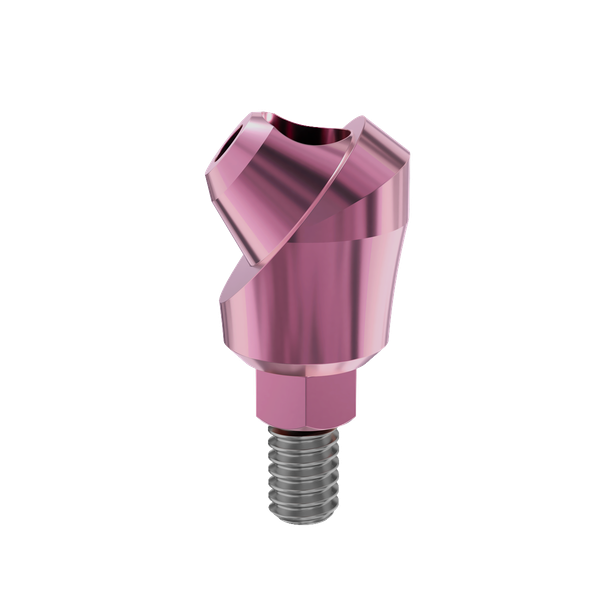

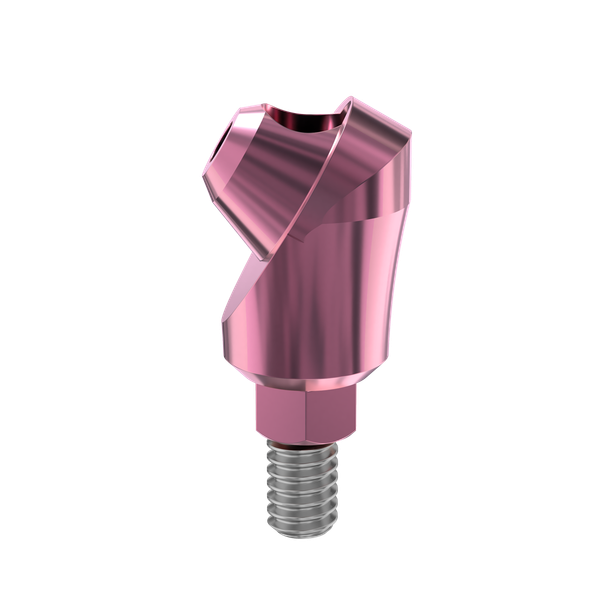

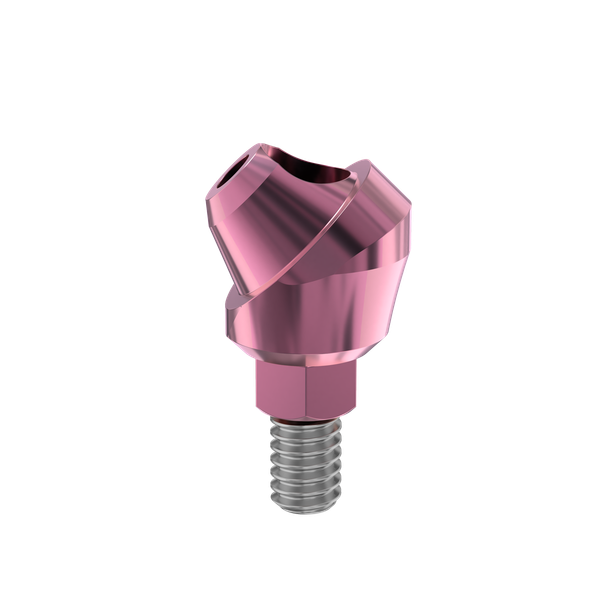

P24 Angular/straight multi-unit abutment

P24 Angular/straight multi-unit abutment

• Enables restoration on non-parallel implants by correcting extreme angles of the implants.
• Straight and angled variants – 17, 30, 45, 52, 60 degrees (the last two – only for the Zygomatic implant).
• Available in different collar heights.
• Easy and secure handling.
• CAD/CAM restoration.
• The conical screw thread is deep and wide, giving additional strength to the abutment.
• The path of insertion is especially wide.
• Platform switching by design, allows a perfect environment for soft-tissue growth and helps to prevent bone resorption.
• Pink color anodization for easy identification.
• P24 family includes its own healing cap, transfer, analog, CAD/CAM products and more.

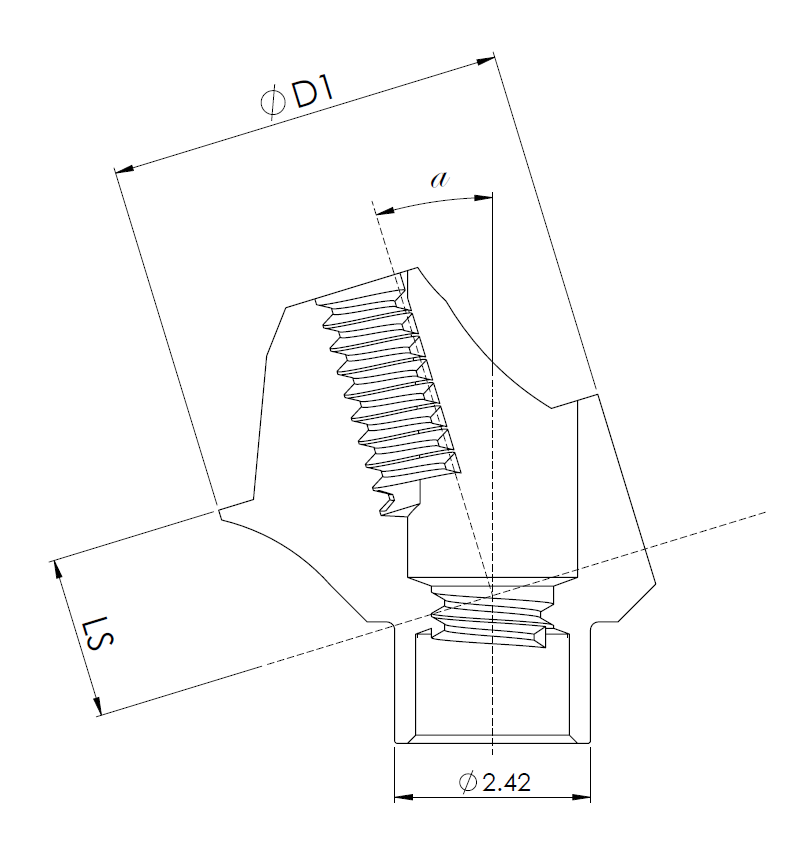

Product size specifications

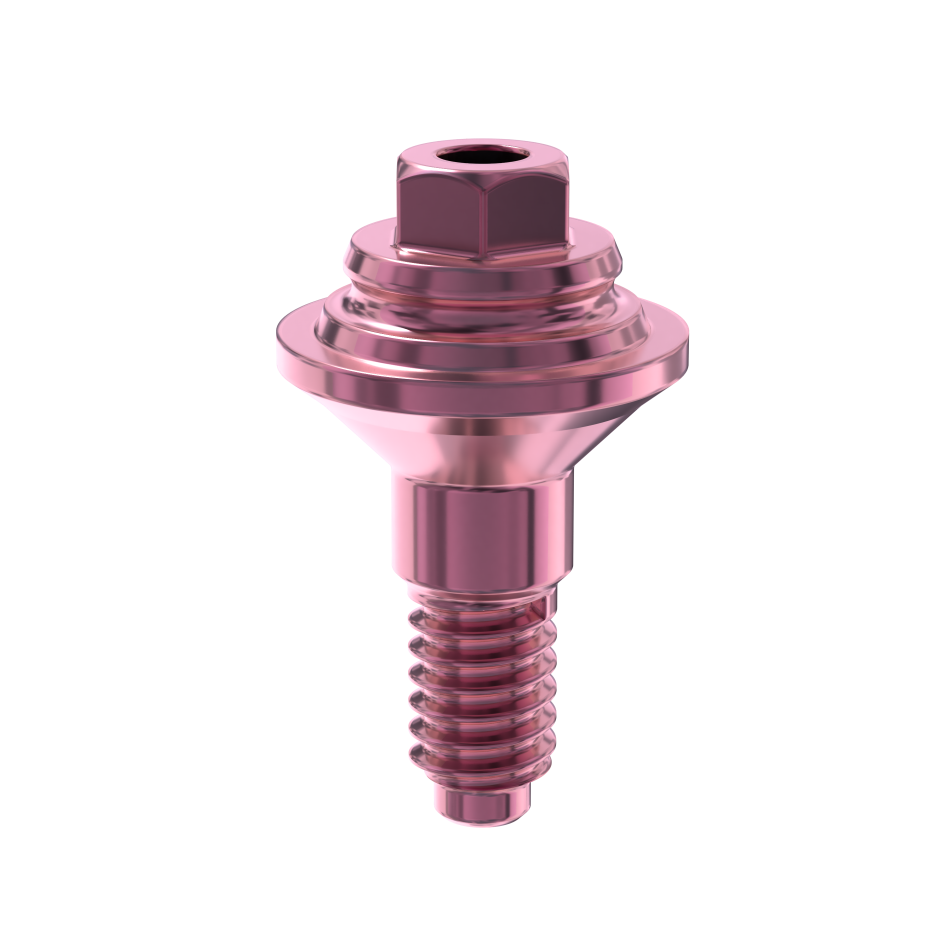

P24 STRAIGHT MU abutment

• P24-3.75, 17-1
• P24-3.75, 17-2
• P24-3.75, 17-3
• P24-3.75, 17-4
• P24-3.75, 17-5
• D1 (mm) = 4.9
• LS (mm) = 1, 2, 3, 4, 5

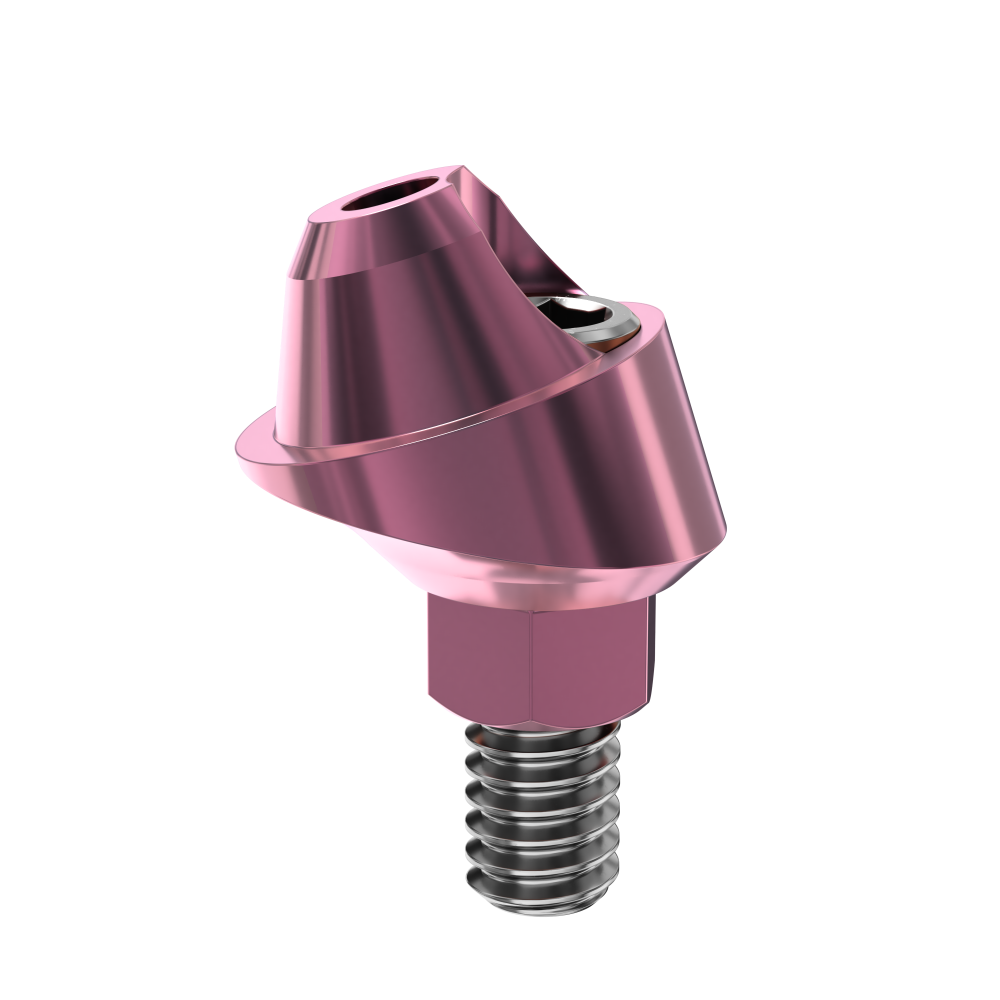

P24-17 ANGULAR MU abutment

• P24-3.75, 17-2
• P24-3.75, 17-3
• P24-3.75, 17-4
• P24-3.75, 17-5
• D1 (mm) = 4.9
• 17°
• LS (mm) = 2, 3, 4, 5

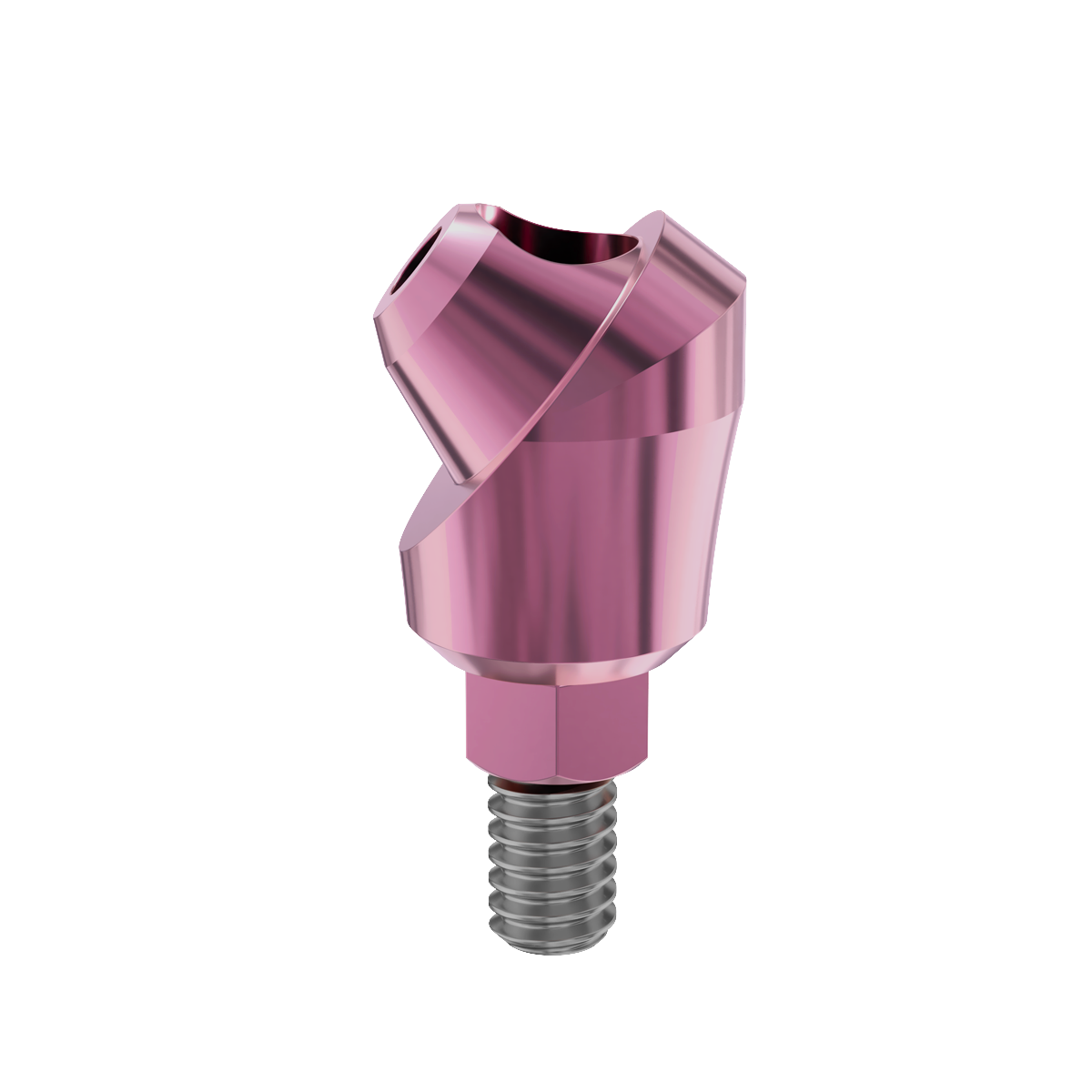

P24-30 ANGULAR MU abutment

• P24-3.75, 30-2
• P24-3.75, 30-3
• P24-3.75, 30-4
• P24-3.75, 30-5
• D1 (mm) = 4.9
• 30°
• LS (mm) = 2, 3, 4, 5

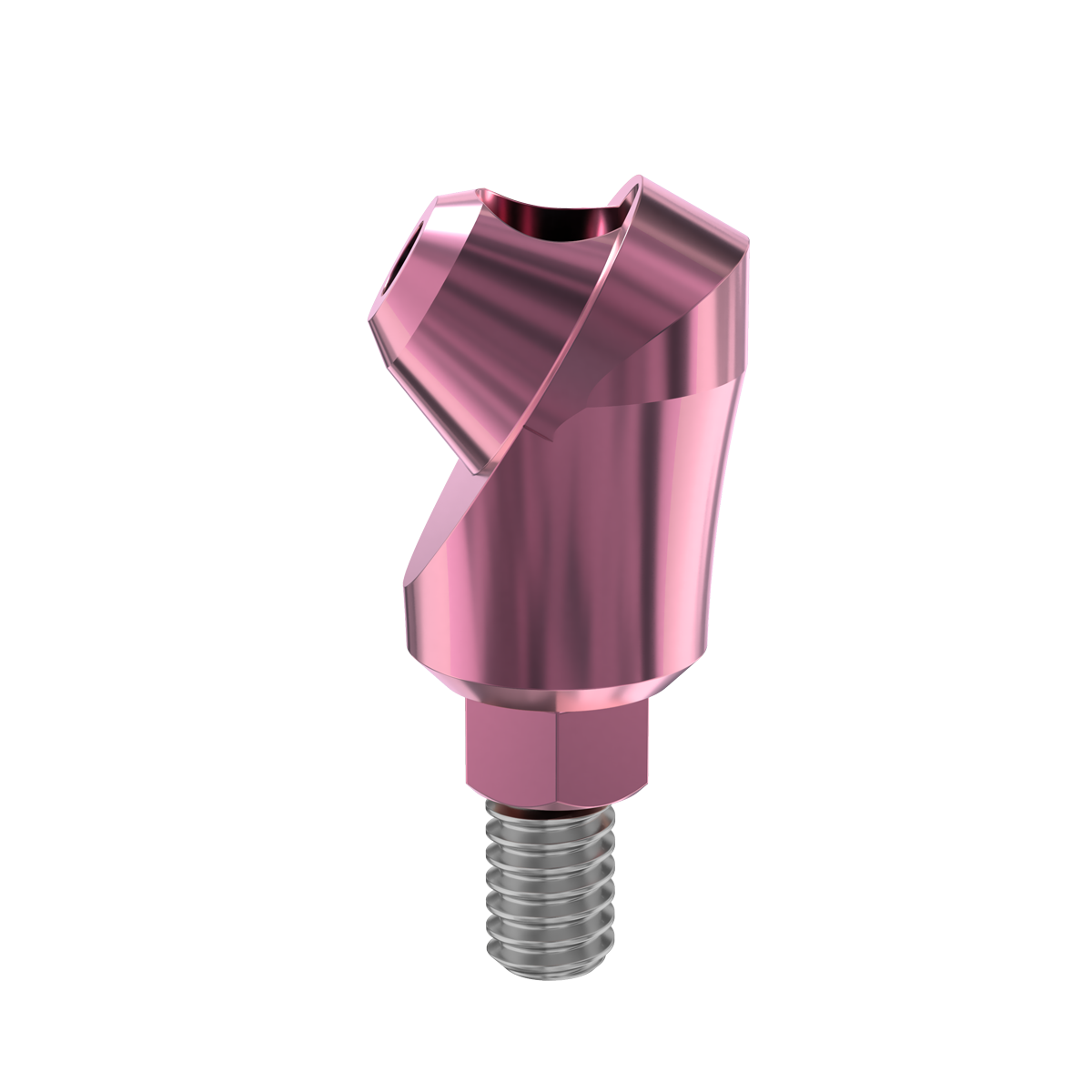

P24-45 ANGULAR MU abutment

• P24-3.75, 30-2
• P24-3.75, 30-3
• P24-3.75, 30-4
• P24-3.75, 30-5
• D1 (mm) = 4.9
• 45°
• LS (mm) = 2, 3, 4, 5

P24-52 ANGULAR MU abutment

• P24-3.75,52-2
• D1 (mm) = 4.9
• 52°
• LS (mm) = 2
• Only for the Zygomatic implant

P24-60 ANGULAR MU abutment

• P24-3.75,60-2
• D1 (mm) = 4.9
• 60°
• LS (mm) = 2
• Only for the Zygomatic implant
