P3-3,SC Narrow scan abutments
AB Dental Devices Ltd. · #P3-3, sc · source
Scan Abutment
Made of Titanium alloy, for better precision on Xray and better fitting of the final abutment as a result.
Narrow platform-3mm diameter.
Key Features
- AB Dental products have been added to the libraries of a wide range of companies.
- These 3D libraries enable precise computerized planning of the restoration by scanning the implants and/or abutments of all types.
- The scanning information is used to produce precise restoration on AB implants using CAD/CAM.
- CAD/CAM technology simplifies the workflow, ensuring accuracy, speed and patient comfort.
Size Specifications

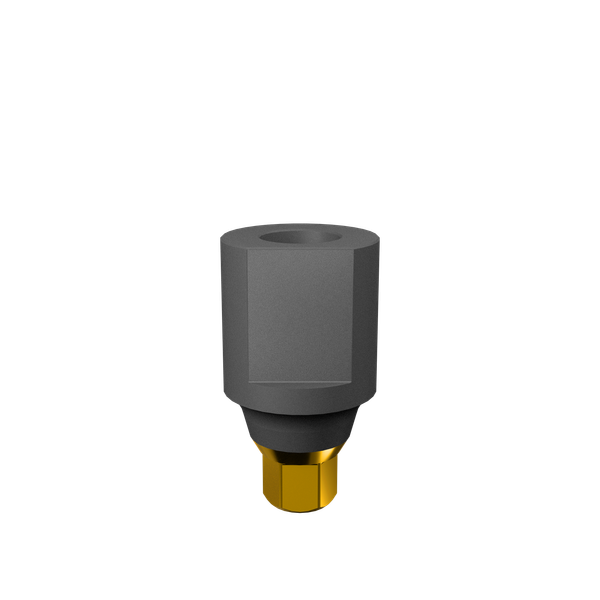

P3 SCANNING BASE FOR STRAIGHT ABUTMENT
- P3-3, sc
- D [mm] = 4.5
- L (mm) = 4

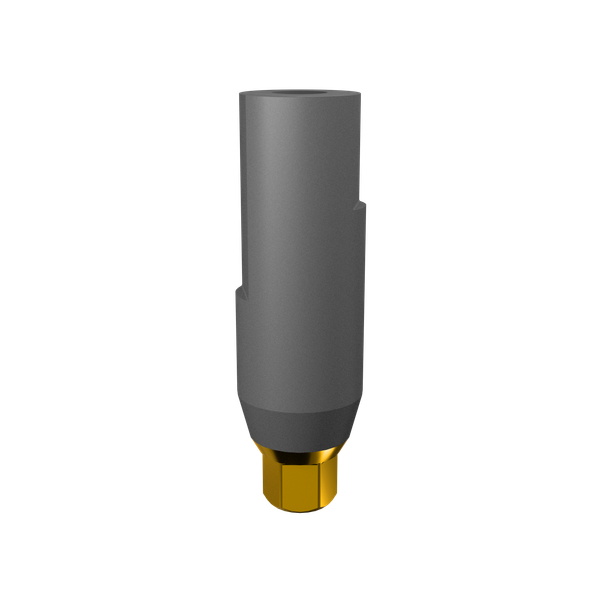

P3L LONG SCANNING BASE FOR STRAIGHT ABUTMENT
- P3L-3, sc
- D (mm) = 3.7
- L (mm) = 10
P14 SCANNING BASE FOR ANGULAR ADAPTOR
- P14, sc
- D (mm) = 5.5
- L (mm) = 6.1
Informations produit
| Fabricant | AB Dental Devices Ltd. |
|---|---|
| Type | Scan Abutment |
| Matériau | Alliage de titane |
| Plateforme | Narrow platform-3mm diameter |
| P14 Sc Length Mm | 6.1 |
| P3 3 Sc Length Mm | 4 |
| P14 Sc Diameter Mm | 5.5 |
| P3l 3 Sc Length Mm | 10 |
| P3 3 Sc Diameter Mm | 4.5 |
| P3l 3 Sc Diameter Mm | 3.7 |
