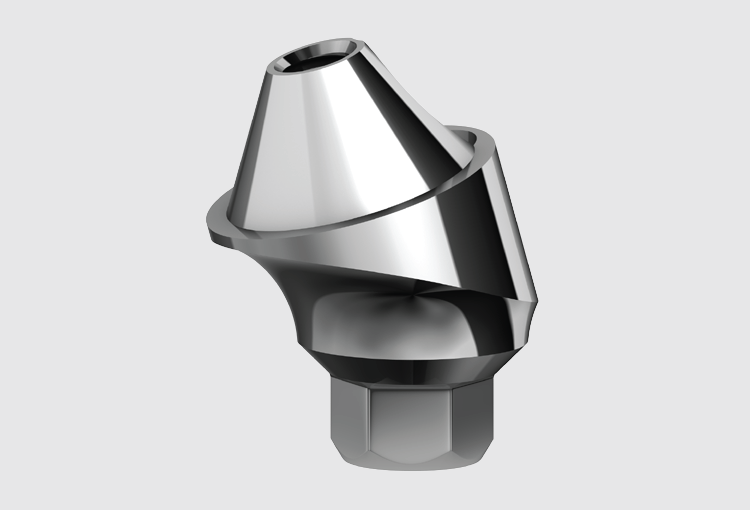

P64 Angular/straight adaptor single unit
AB Dental Devices Ltd. · source
Product Overview
Enables restoration on non-parallel implants by correcting extreme angles of implants.
- Wide shoulder for easy positioning.
- Straight and angled variants (17, 30, 42 degrees).
- Available in 5 different collar heights.
- Easy and secure handling.
- CAD/CAM restoration.
- The conical screw thread is deep and wide, giving additional strength to the abutment.
- The path of insertion is especially wide.
- Platform switching by design, allows a perfect environment for soft-tissue growth and helps to prevent bone resorption.

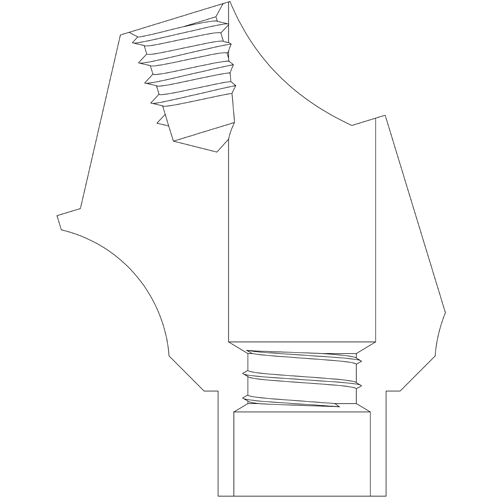

Product Size Specifications
P64-STRAIGHT ADAPTOR SINGLE UNIT
- P64-3.75, 1
- P64-3.75, 2
- P64-3.75, 3
- P64-3.75, 4
- P64-3.75, 5
- D1 (mm) = 4.9
- LS (mm) = 1, 2, 3, 4, 5
P64-17 ANGULAR ADAPTOR SINGLE UNIT
- P64-3.75, 17-0.5
- P64-3.75, 17-2
- P64-3.75, 17-3
- P64-3.75, 17-4
- P64-3.75, 17-5
- D1 (mm) = 4.9
- 17°
- LS (mm) = 0.5, 2, 3, 4, 5
P64-30 ANGULAR ADAPTOR SINGLE UNIT
- P64-3.75, 30-0.5
- P64-3.75, 30-2
- P64-3.75, 30-3
- P64-3.75, 30-4
- P64-3.75, 30-5
- D1 (mm) = 4.9
- 30°
- LS (mm) = 0.5, 2, 3, 4, 5
P64-42 ANGULAR ADAPTOR SINGLE UNIT
- P64-3.75, 42-0.5
- P64-3.75, 42-2
- Sale in China only
- D1 (mm) = 4.9
- 40°
- LS (mm) = 0.5
Informations produit
| Fabricant | AB Dental Devices Ltd. |
|---|---|
| Variante | Straight and angled (17°, 30°, 40°) |
| D1 Diameter | 4.9 mm |
| Platform Type | Conical Platform |
| Design Features | Platform switching by design |
| Implant Interface | D1=4.9mm conical screw thread |
| Cad/cam Compatible | Oui |
| Collar Heights Available | 5 different collar heights (LS: 1, 2, 3, 4, 5 mm) |
