P7 Anti-rotation aesthetic abutment
AB Dental Devices Ltd. · #P7 · source
Product Features
- An abutment with hex on both sides.
- Suitable for restorations on a single implant or a screwed bridge on non-parallel implants
- Platform switching by design, allowing perfect environment for the soft-tissues growth and helps preventing bone resorption.
Size Specifications

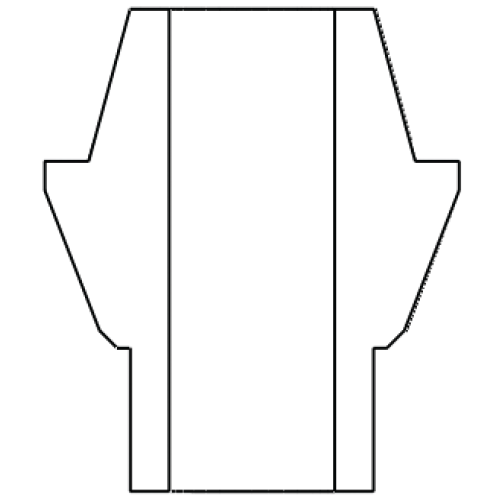

P7 AESTHETIC ABUTMENT
- P7-3.75, 1
- D1 (mm) = 4.7
- L (mm) = 1, 2, 3
P7B PLASTIC SLEEVE WITHOUT HEX
- P7b
- D1 (mm) = 6
- L (mm) = 8.5
P7B-H PLASTIC SLEEVE WITH HEX
- P7b-H
- D1 (mm) = 4.7
- L (mm) = 12
Related Screws

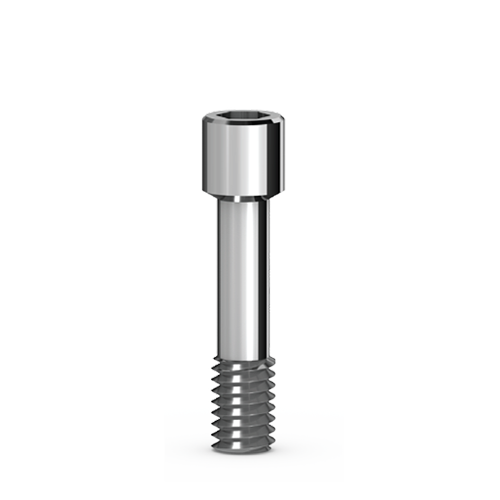

- P7a-1: Screw for P7 aesthetic abutment

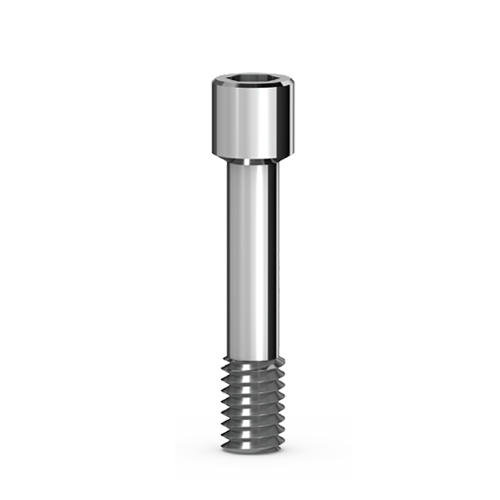

- P7a-2: Screw for P7 aesthetic abutment

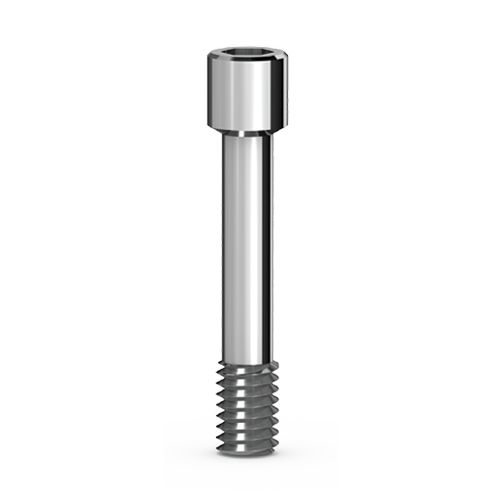

- P7a-3: Screw for P7 aesthetic abutment
Informations produit
| Fabricant | AB Dental Devices Ltd. |
|---|---|
| Type | Anti-rotation aesthetic abutment |
| Hex Design | Hex on both sides |
| Application | Single implant or screwed bridge on non-parallel implants |
| Platform Switching | By design |
| P7 Aesthetic Abutment L | 1, 2, 3 mm |
| P7 Aesthetic Abutment D1 | 4.7 mm |
| P7 Aesthetic Abutment Model | P7-3.75, 1 |
| P7b H Plastic Sleeve With Hex L | 12 mm |
| P7b Plastic Sleeve Without Hex L | 8.5 mm |
| P7b H Plastic Sleeve With Hex D1 | 4.7 mm |
| P7b Plastic Sleeve Without Hex D1 | 6 mm |
| P7b H Plastic Sleeve With Hex Model | P7b-H |
| P7b Plastic Sleeve Without Hex Model | P7b |
