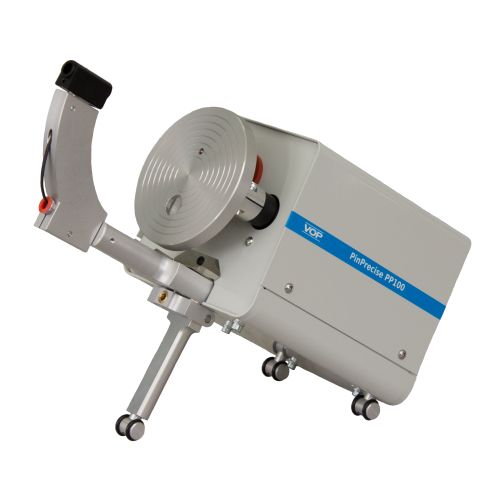

PinPrecise PP100
VOP Ltd. · source
Pin drilling unit
Features:
- drill revolution regulation
- automatic switch on system
- compact and ergonomic
- dust reduction system
Accessories:
- Pin system Ref. № 100000032
- Drill Ref. № 100000033
TECHNICAL DATA
Power supply: 110/230V ±10%, 50/60Hz Power consumption: 100 W Maximum drill revolutions: 4000 rpm Collet diameter: Ф 3 mm Drilling depth: 12 mm Laser: class 3, max 5 mW Dimensions (W/D/H): 157x410x160 mm Weight: 5 kg
Informations produit
| Fabricant | VOP Ltd. |
|---|---|
| Type | Pin drilling unit |
| Poids | 5 kg |
| Laser Class | class 3 |
| Laser Power | max 5 mW |
| Alimentation | 110/230V ±10%, 50/60Hz |
| Drilling Depth | 12 mm |
| Collet Diameter | Ф 3 mm |
| Power Consumption | 100 W |
| Dimensions (w/d/h) | 157x410x160 mm |
| Maximum Drill Revolutions | 4000 rpm |
