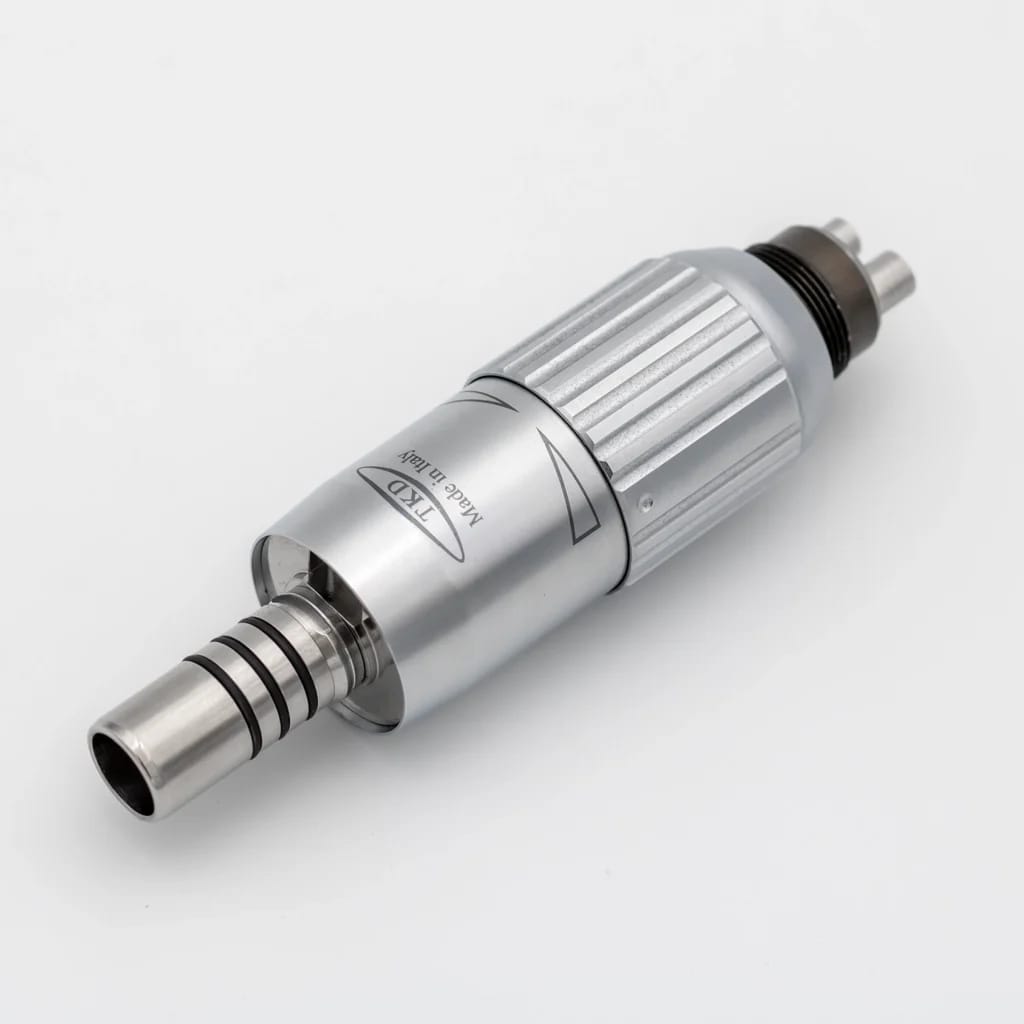

Pneumatic micromotor Vortice
Simple & Smart S.R.L. · source
Vortice is a pneumatic micromotor with speed and direction of rotation adjustable by means of the rotating ring.
General performance has been improved, and torque, now increased to 2.7 Ncm, remains extremely high across the entire speed range.
Micromotor is equipped with a non-return device for spray water. It can be employed with any straight or contra-angle handpiece with internal spray and connection compliant to ISO 3964 standard.
Technical specifications
- Speed: 4000 – 22000 rpm
- Supply pressure: 2.4 – 3.0 bar
- Maximum consumption: 63 Nl/min
- Sterilization: In autoclave at 134° C, 2 bar
- Compliance: ISO 14457, ISO 3964
- Weight: 80 g
Informations produit
| Fabricant | Simple & Smart S.R.L. |
|---|---|
| Vitesse | 4000 – 22000 rpm |
| Couple | 2.7 Ncm |
| Poids | 80 g |
| Caractéristiques | Speed and direction of rotation adjustable by means of the rotating ring; equipped with a non-return device for spray water; compatible with ISO 3964 compliant handpieces |
| Certification | ISO 14457, ISO 3964 |
| Stérilisation | In autoclave at 134° C, 2 bar |
| Supply Pressure | 2.4 – 3.0 bar |
| Maximum Consumption | 63 Nl/min |
