Prima Mµ training microscope with table mount and NuVar 10

The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system's center of gravity to provide a more stable, lighter weight solution.



A single 27 watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima Mµ's eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.



An Apochromatic 3-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch-resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through long working distance NuVar 10. The Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.



The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.

Microscope Specifications

Prima Mµ, Ergo trainer microscope with an intelligent LED illumination system


Mounting system: table mount on pillar


Suspension arm: 996 mm


Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x


Viewing bodies:  45º binocular tubes fixed, IPD range 55-75 mm, f=170 mm


Objective: NuVar 10


Eyepieces: WF adjustable eyepiece 10x/FN 16mm with eye guards


Observation head: ergonomic adjustable handgrips for observation head


Microscope carriers: 155º carrier


Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux


Input: AC 115-240V, 50/60Hz


Filter: yellow and green filter with filter holder


Vertical movement of arm: 600 mm


Fuse: quick-acting fuse 1.0 Amp


Standard accessories: dust cover for microscope observation head and illumination box

PACKAGE CONTENTS: > Prima Mµ training microscope > Objective NuVar 10 > Tools for securing base and pillar > Sterilizable knob covers > Nylon dust cover

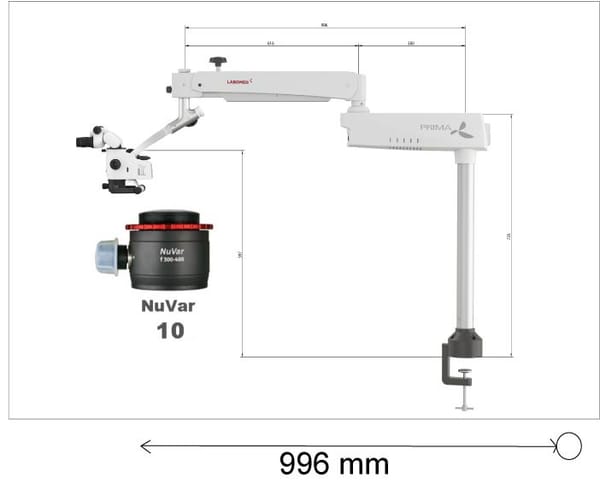

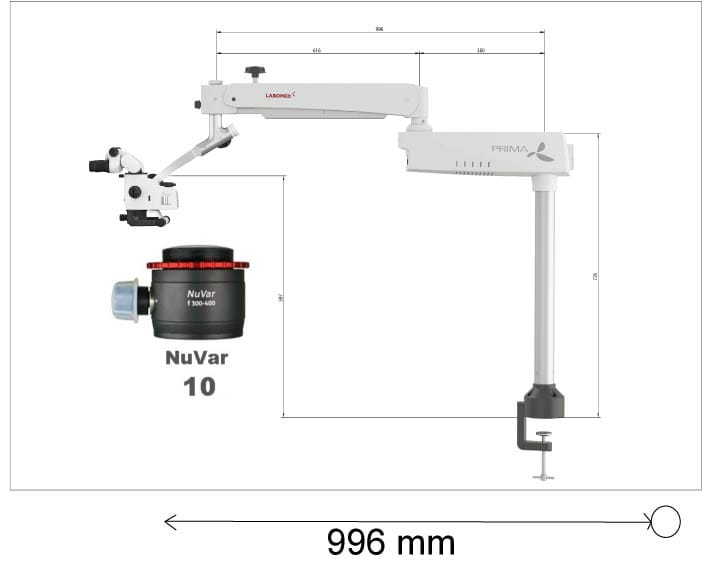

DIMENSIONS (mm)





CONFIGURATIONS
