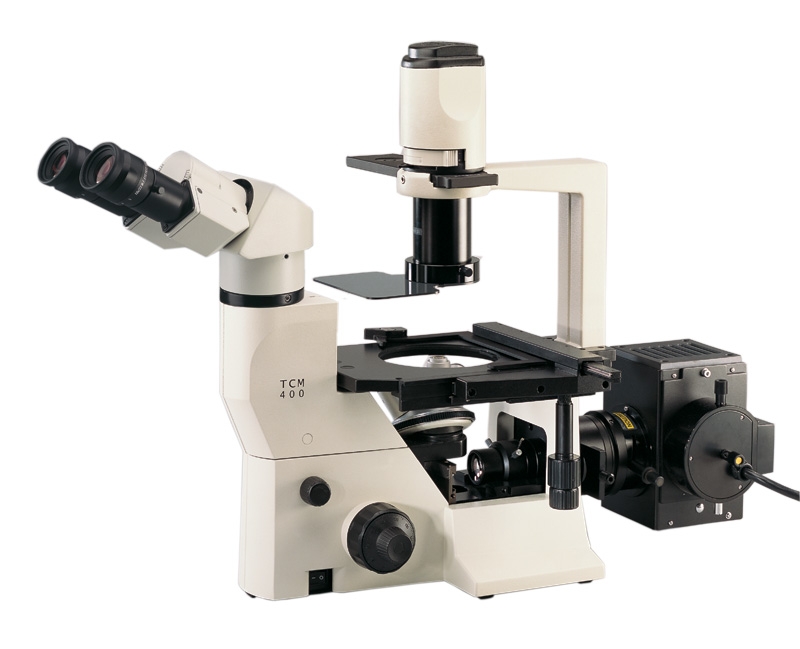

TCM400 trinocular microscope with LED Fluorescence Kit

    Focussing on the Needs of Clinicians

Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.

  TCM 400 Advantages:





LWD series long working distance objectives and a well-designed phase/brightfield illumination system yield sharp contrast images. A long working distance 0.8 N.A. phase condenser accommodates media containers with ease.







The TCM 400 will seamlessly accomodate Labomed's suite of high-performance iVu cameras as well as 3rd party imaging solutions, enabling image capture and archiving.







With an LED epi-illuminator, the TCM 400 becomes a fully functional fluorescence microscope with a host of filter options.



          Microscope



Stand Ergonomically designed sturdy stand (aluminum die-cast) Viewing Body Trinocular, 30°, IPD 52-75mm Eyepiece Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings Nosepiece Quadruple reverse angle turret (Ball bearing type) with rubber grip Objectives LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings Mechanical Stage Fixed plain stage 160mm x 240mm Condenser Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage) Focusing Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm Illumination Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life. Electronics Universal power supply (110V-240V) with built-in voltage stabilizer

  Package Contents

Power Cable (6ft) Nylon Dust Cover & Cleaning Cloth Instapack Packaging

  Accessories (Optional)

Pointers & Micrometer Reticules Phase and Fluorescence Kits Auxiliary Objectives and Eyepieces Digital Cameras and Adapters Soft Carrying Case













  TCM 400 Brochure

      Learn more about the TCM 400's unique value offering.



Download Now





User Manual

Learn all about the TCM 400, its functions, and more

Download Now
